Installation & Operation Manual
Mounted on Electric Boiler Cabinet Base
EMT-6, EMT-10, EMT-12,
EMT-6-6, EMT-10-6 & EMT-10-10
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
M
R
ANUAL 10071
EV 4 (07/22)
$21.00
Direct Steam Kettles
Model EMT-10-10
servicing this equipment.
CROWN FOOD SERVICE EQUIPMENT
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000
WARNING
A Middleby Company
www.crownsteamgroup.com
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: _____________________
Direct Steam Kettles Mounted on
Electric Boiler Cabinet Base
M
S
ANUAL
ECTION
CO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crown EMT-6
Summary of Contents for Crown EMT-6
- Page 1 Installation & Operation Manual Direct Steam Kettles Mounted on Electric Boiler Cabinet Base EMT-6, EMT-10, EMT-12, EMT-6-6, EMT-10-6 & EMT-10-10 Model EMT-10-10 WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
-
Page 2: Important Notes For Installation And Operation
This product is intended for commercial use only. NOT FOR HOUSEHOLD USE. NOTICE This manual should be retained for future reference. Copyright © 2022 by Crown. All rights reserved. Published in the United States of America. PAGE OF 20 INSTALLATION & OPERATION MANUAL 10071 REV 4 (07/22) -
Page 3: Table Of Contents
Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Table of Contents RETAIN THIS MANUAL FOR FUTURE REFERENCE. Table of Contents Important Notes For Installation and Operation ..............2 Service Connections ......................4 Introduction ........................... 8 Installation Instructions ......................9 Operation .......................... -
Page 4: Service Connections
WATER QUALITY STATEMENT Water is the essential ingredient in steam equipment, water quality is the major factor affecting the performance of your appliance. Crown Steam Group offers a Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for warranty coverage. - Page 5 WATER QUALITY STATEMENT Water is the essential ingredient in steam equipment, water quality is the major factor affecting the performance of your appliance. Crown Steam Group offers a Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for warranty coverage.
- Page 6 WATER QUALITY STATEMENT Water is the essential ingredient in steam equipment, water quality is the major factor affecting the performance of your appliance. Crown Steam Group offers a Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for warranty coverage.
- Page 7 WATER QUALITY STATEMENT Water is the essential ingredient in steam equipment, water quality is the major factor affecting the performance of your appliance. Crown Steam Group offers a Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for warranty coverage.
-
Page 8: Introduction

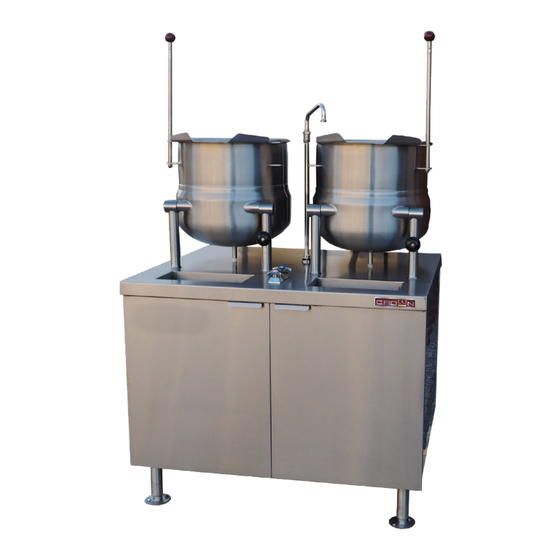

Introduction Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Introduction - Direct Steam Kettles General Direct steam tilting kettle(s) mounted on a cabinet base, housing an ASME Code designed electric steam boiler approved as a steam boiler restricted to operation at pressure not to exceed 15 psi. Hot and cold water fill faucet, 5” (152 mm) deep sink with drain and splash guard(s). -
Page 9: Installation Instructions
Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Installation Installation Instructions Unpacking IMMEDIATELY INSPECT FOR SHIPPING DAMAGE Immediately after unpacking, check for possible shipping damage. If the appliance is found to be damaged, save the packaging material and contact the carrier within 15 days of delivery. We cannot assume responsibility for damage or loss incurred in transit. - Page 10 Installation Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Electrical Connections WARNING Electrical and grounding connections must comply with the applicable portions of the National Electrical Code and/or other local codes. WARNING Do not connect the appliance to the electrical supply until after the gas connection has been made. When making electrical connections, use copper wire suitable for at least 200 °F (90 °C).
-
Page 11: Operation
Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Operation PERATION Operating Instructions For CSD-1 equipped boilers, see this section for Operation Instructions for CSD-1 Equipped Boilers. Boiler Controls (Inside Cabinet) Main Power Switch ON fills the boiler tank and turns the boiler controls on. You should allow 20 minutes to fill the tank and generate steam. -
Page 12: Operation Instructions For Boilers With Csd-1 Controls
Operation Direct Steam Kettles Mounted on Electric Boiler Cabinet Base CSD-1 Optional Feature Start-up Procedure 1. Close the manual blowdown valve. 2. Open cabinet door and turn “ON” power switch. The green pilot light will come “ON.” Water will begin to enter the boiler. When enough water has entered the boiler, the (amber) “STANDBY”... -
Page 13: Periodic Maintenance
Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Periodic Maintenance ERIODIC AINTENANCE WARNING Disconnect the unit from the power supply before cleaning or servicing appliance. IMPORTANT INSTRUCTIONS Be sure to flush your boiler water level control daily. Failure to follow this procedure can cause the control to malfunction resulting in serious boiler damage. -
Page 14: Cleaning
Cleaning Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Cleaning WARNING Disconnect the unit from the power supply before cleaning or servicing appliance. CAUTION Do not use cleaning agents that are corrosive. CAUTION DO NOT allow water near the electrical components. Your kettle should be cleaned immediately after each use. -
Page 15: Adjustments
Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Adjustments Adjustments NOTICE Contact the factory, the factory representative or local service company to perform maintenance and repairs. WARNING At least twice a year have an authorized service technician clean and adjust the unit for maximum performance. CAUTION Take extra caution when blowing down water level control or tripping safety valve as extreme hot water and live steam are present. - Page 16 Adjustments Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Calibrate Pressure Switches NOTICE Pressure switches are factory set. Calibration is only required if pressure switches are replaced or if adjustment is required. Pressure switch range is from 1 to 15 psi. Pressure switch range is from 1 to 15 psi.
-
Page 17: Troubleshooting
Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Troubleshooting Troubleshooting NOTICE Contact the factory, the factory representative or local service company to perform maintenance and repairs. Water Not Being Supplied to Boiler 1. Water supply is “OFF”. 2. Defective water fill solenoid. 3. - Page 18 Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Notes PAGE OF 20 INSTALLATION & OPERATION MANUAL 10071 REV 4 (07/22)
- Page 19 Direct Steam Kettles Mounted on Electric Boiler Cabinet Base Notes INSTALLATION & OPERATION MANUAL 10071 REV 4 (07/22) PAGE OF 20...
- Page 20 Mounted on Electric Boiler Cabinet Base A product with the Crown name incorporates the best in durability and low maintenance. We all recognize, however, that replacement parts and occasional professional service may be necessary to extend the useful life of this appliance.
