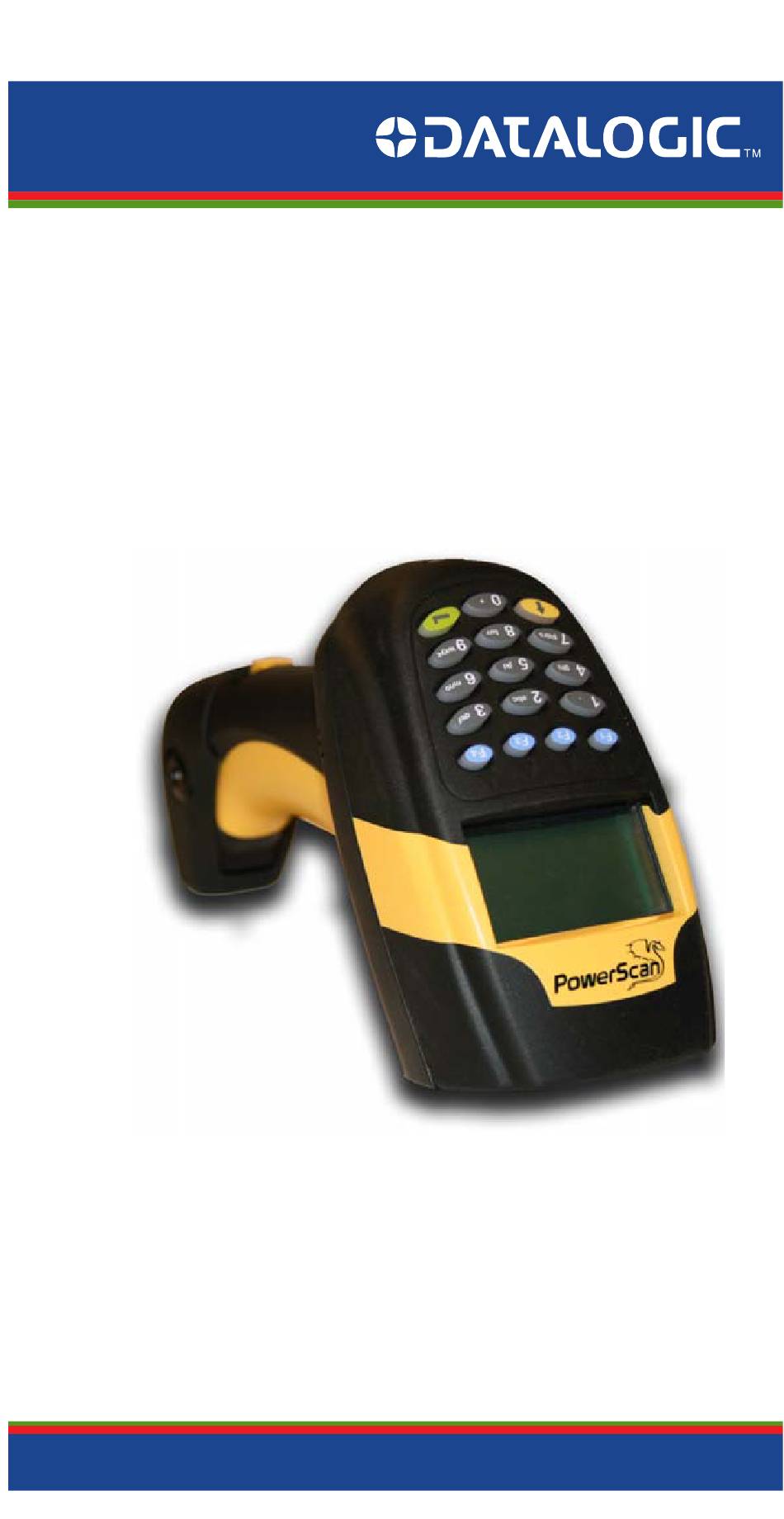

- Page 1 PowerScan™ PM8300-DK 16-Key Reader Quick Reference Guide...
- Page 2 Datalogic representative. Electronic versions may either be downloadable from the Data- logic website (www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publica- tions, please let us know via the "Contact Datalogic" page.
-
Page 3: Table Of Contents
Table of Contents Using the PowerScan™ PM8300-DK .............. 3 Scan Line Position ..................3 Reading Angle ....................3 Aiming System ....................4 Installing the Battery Pack................. 5 Charging the Batteries ................. 7 Setup......................... 8 PowerScan™ PM8300-DK/BC-80X0 Point-to Point Configuration ..8 PowerScan™... - Page 4 NOTES PowerScan™ PM8300-DK16-Key Reader...
-
Page 5: Using The Powerscan™ Pm8300-Dk
PowerScan™ PM8300-DK 16-Key Reader ™ Using the PowerScan PM8300-DK ™ The PowerScan PM8300-DK series readers can be used with either an BC- 80X0 cradle or Stargate™ radio base station to build a Cordless Reading System for the collection, decoding and transmission of barcoded data. ™... -
Page 6: Aiming System
Using the PowerScan™ PM8300-DK Aiming System ™ PowerScan PM8300-DK provides an aiming system. If enabled, a partial trigger press produces a red spot, which should be aimed over the code center to get the best reading performance, see #1 in the figure above. By completely pressing the trigger the scan line appears to start the code scanning, see #2. -
Page 7: Installing The Battery Pack
To charge the Battery Pack, See “Charging the Batteries” on page 7. Datalogic recommends annual replacement of rechargeable battery packs to ensure maximum performance. NOTE Do not discharge the battery using any device except for the scanner. - Page 8 Always charge the battery at 32° – 113°F (0° - 45°C) tempera- ture range. Use only the authorized power supplies, battery pack, char- gers, and docks supplied by your Datalogic reseller. The use of CAUTION any other power supplies can damage the device and void your warranty.
-
Page 9: Charging The Batteries
Installing the Battery Pack Charging the Batteries Once the BC-80X0/C-8000 is powered, you can charge the reader's batteries. ™ Place the PowerScan PM8300-DK into the BC-80X0 cradle or the C-8000 battery charger. The "Reader" LED on the cradle/battery charger turns red. The battery is completely charged when the "Reader"... -
Page 10: Setup
Setup Setup ™ PowerScan PM8300-DK/BC-80X0 Point-to Point Configuration Connect a BC-80X0 cradle to the Host. For installation and connection information see the BC-80X0 Quick Reference Manual. ™ Charge the PowerScan PM8300-DK battery using an BC-80X0 or the C-8000 charger as described in this Quick Reference manual. A full charge takes 4 hours if using an external power supply;... -
Page 11: Powerscan™ Pm8300-Dk Configuration
PowerScan™ PM8300-DK Configuration ™ PowerScan PM8300-DK Configuration ™ PowerScan PM8300-DK/BC-80X0 Point-to-Point Setup A rapid configuration procedure has been devised for point-to-point applications where a single reader is associated exclusively with its own BC-80X0 base station and where it is not necessary to set the Date and Time parameters. A special pre-printed bind-address label provided in the BC-80X0 base station ™... -
Page 12: Powerscan™ Pm8300-Dk/Bc-80X0 Stand Alone Setup
PowerScan™ PM8300-DK Configuration ™ PowerScan PM8300-DK/BC-80X0 Stand Alone Setup ™ When the BC-80X0 cradle is connected and powered, configure the PowerScan PM8300-DK by reading the following codes in the given sequence and follow the instructions.. For the numeric code selection of steps 3, 4, and 5 use the table at the end of this Quick Reference manual. - Page 13 PowerScan™ PM8300-DK Configuration Exit and Save Configuration Ì$-?Î ™ Read the Bind code to pair the PowerScan PM8300-DK to the BC-80X0 cradle. The reader is dedicated to the cradle. Any previously bound reader will be excluded. To connect several readers to the same cradle see the following section "Using Multiple Readers with Same Cradle".
-
Page 14: Using Multiple Readers With Same Cradle
PowerScan™ PM8300-DK Configuration Using Multiple Readers with Same Cradle If you want to use several readers associated with the same cradle, you must first Bind the cradle with one of the readers (see previously described configuration procedure). Successive readers can be associated with the same cradle by following the configuration procedure substituting the Bind command with Join. -
Page 15: Powerscan™ Pm8300-Dk/Star-System™ Setup
PowerScan™ PM8300-DK/STAR-SYSTEM™ Setup ™ PowerScan PM8300-DK/STAR-SYSTEM™ Setup ™ The following procedure allows configuring a PowerScan PM8300-DK reader to communicate with various STAR-System™ devices such as Stargate™ RF base stations: ™ Restore PowerScan PM8300-DK Default Ì$+$*oÎ Enter Configuration Ì$+;Î Set Date ÌIA%Î... - Page 16 PowerScan™ PM8300-DK/STAR-SYSTEM™ Setup Set Radio Address ÌRF8Î ™ four digits from the Numeric Table for the PowerScan PM8300-DK Address (from 0000 to 1999). All readers used in the same area must have different addresses. Set First STAR-System™ Address ÌRSRÎ four digits from the Numeric Table in the range 0000 to 1999 Set Last STAR-System™...
-
Page 17: Selecting The Operative Mode
Selecting the Operative Mode Selecting the Operative Mode The PowerScan PM8300-DK has two basic operative modes. Simple Data Input Mode In Simple Data Input Mode, data entered manually on the keypad is transmitted to the host once the enter key is pressed. The data can be transmitted in one of three ways: With the same formatting of the read barcode;... -
Page 18: Powerscan™ Pm8300-Dk Default Configuration
PowerScan™ PM8300-DK Default Configuration ™ PowerScan PM8300-DK Default Configuration DATA FORMAT code identifier disabled, field adjustment disabled, code length not transmitted, character replacement disabled CODE SELECTION enabled codes • EAN 8/EAN 13 / UPC A/UPC E without ADD ON check digit transmitted, no conversions •... -
Page 19: Technical Features
Reading Field Width see reading diagram (typical) Max. Resolution 0.076 mm (3 mils) 0.19 mm (7.5 mils) PCS minimum (Datalogic Test Chart) 13.5° 0.7 Scan Angle 42° Laser Safety Class 2 (EN 60825-1 / CDRH) Radio Features European Models... -
Page 20: Reading Diagrams
Reading Diagrams Reading Diagrams PowerScan™ M8300 108 cm 0.13 mm (5 mils) 0.19 mm (7.5 mils) 0.25 mm (10 mils) 0.33 mm (13 mils) 0.38 mm (15 mils) 0.50 mm (20 mils) 1.00 mm 1.38 mm (40 mils) (55 mils) ™... -
Page 21: Warranty
3 years from the date of shipment, provided that the product is operated under normal and proper conditions. Datalogic has the faculty to repair or replace the product; these provisions do not prolong the original warranty term. The warranty does not apply to any product that has been subject to misuse, accidental damage, unauthorized repair or tampering. -
Page 22: Compliance
FCC Compliance Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. -
Page 23: Led Class
Compliance La utilización de procedimientos o regulaciones diferentes de aquellas describidas en la documentación puede causar una exposición peligrosa a la luz láser visible. CAUTION The laser scanner utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known biological damage, avoid staring at the beam as one would with any very strong light source, such as the sun. -
Page 24: Weee Compliance
Waste Electrical and Electronic Equipment (WEEE) Statement English For information about the disposal of Waste Electrical and Electronic Equipment (WEEE), please refer to the website at www.scanning.datalogic.com. Italian Per informazioni sullo smaltimento delle apparecchiature elettriche ed elettroniche consultare il sito Web www.scanning.datalogic.com. -
Page 25: Numeric Table
Numeric Table Numeric Table Ì01Î Ì12Î Ì23Î Ì34Î Ì45Î Ì56Î Ì67Î Ì78Î Ì89Î Ì9:Î Quick Reference Guide... - Page 26 Numeric Table NOTES PowerScan™ PM8300-DK 16-Key Reader...
