Micronor MR340-1 Instruction Manual

Fiber optic incremental encoder din rail mount controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

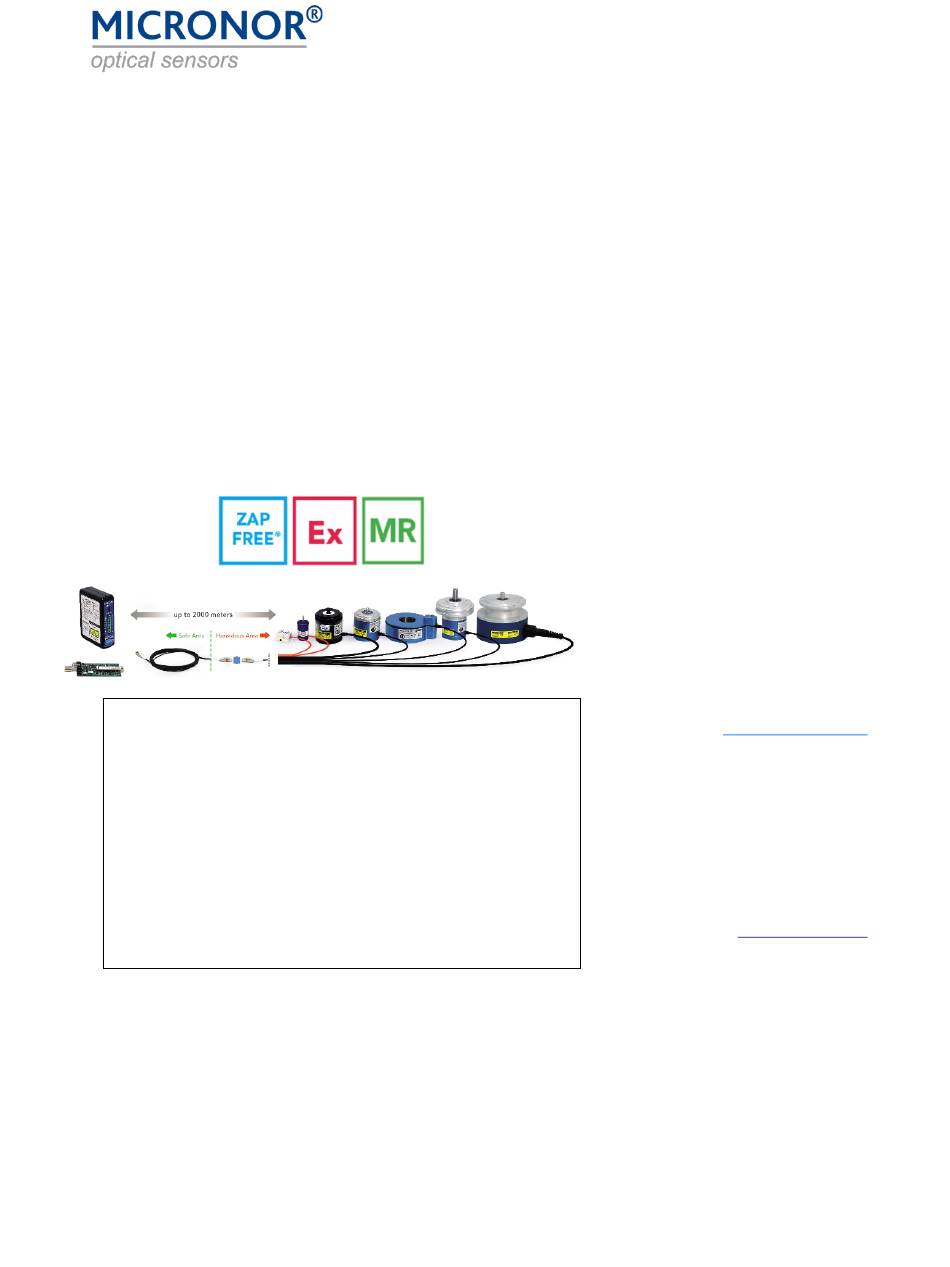

Fiber Optic Incremental Encoder
Includes MR343 Linear Encoder
The MR340-1 Controller is a rebranding, part number change only
of the original MR302-1 DIN Controller. Any references to MR302-1
are applicable to the MR340-1 and vice versa. In addition, the former
MR303 Linear Encoder is now the MR343, and the former MR304
Mini Rotary Encoder is now the MR341.
The core dual wavelength 850nm/980nm optical technology of the
MR302 series replaces the 850nm/1300nm technology of the earlier
MR320 series, becoming the MR340 series. For more information on
the MR340 series Controller and Encoders and their compatibility
with earlier models, please consult Application Note AN127.
The design concepts and engineering details embodied in this manual, which are the property of MICRONOR AG,
are to be maintained in strict confidence; no element or detail of this manual is to be spuriously used, nor disclosed,
without the express written permission of MICRONOR AG. All rights are reserved. No part of this publication may
be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission from MICRONOR AG.

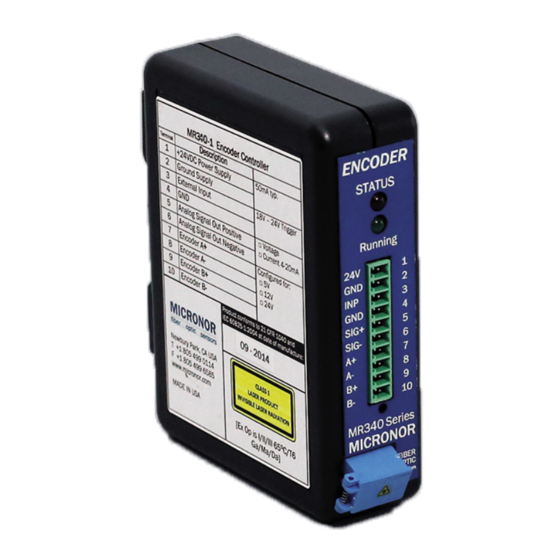

MR340-1
DIN Rail Mount Controller
Instruction Manual
Application Information
Document: 98-0340-12
Revision: C
IMPORTANT NOTE
Notice of Proprietary Rights
© COPYRIGHT 2018-2022, MICRONOR AG
REGENSDORF, SWITZERLAND
For Sales & Support in North America:
MICRONOR SENSORS, INC.
2085 Sperry Ave, Suite A-1
Ventura, CA 93003 USA
+1-805-389-6600
sales@micronor.com
www.micronor.com
HQ and Worldwide Support:
MICRONOR AG
Pumpwerkstrasse 32
CH-8105 Regensdorf
+41-44-843-4020
sales@micronor.ch
www.micronor.ch
Switzerland

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR340-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Micronor MR340-1

Summary of Contents for Micronor MR340-1

  • Page 1 MICRONOR AG. All rights are reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from MICRONOR AG.

  • Page 2: Revision History

    MICRONOR AG MR340-1 DIN Rail Module Controller Revision History Date Technical Notes Representative 6/22/2018 DNH Initial Release-Same as MR302-1 3/6/2019 Analog output mode definition corrected in table 9/12/2022 DNH • Changed all MR302-1 DIN Controller references to MR340-1 • Changed all MR303 Linear Encoder references to MR343 •...

  • Page 3: Table Of Contents

    Standard Contents ..................8 Warranty Information ..................9 Installation and Operation .................. 10 Mounting the Sensor Unit ................10 Mounting the MR340-1 Controller Module ..........11 Optical Connections to the Controller ............12 3.3.1 Cleaning Fiber Optic Connections ............13 Electrical Connections To Controller ............
  • Page 4 Explanation of Status and Error Indication ..........53 Reading The Error Counters ..............58 Specifications ..................... 59 MR340-1 DIN Rail Mount Controller ............59 MR343 Linear Sensor ................... 60 ZAPPY® 302 SOFTWARE ................... 61 How To Install and Use Zappy® 302 ............61 ZAPPY®...
  • Page 5 Figure 21. ZAPPY® System Functions screen ............62 Figure 22. ZAPPY® User Functions screen ..............63 Figure 23. ZAPPY® Service Functions screen ............64 Figure 24. ZAPPY® Command List screen ..............65 Figure 25. Block Diagram of MR340-1 Controller ............. 66 Page 5 of 74...

  • Page 6: Product Description

    MICRONOR AG MR340-1 DIN Rail Module Controller Product Description Incremental Encoder Background Incremental encoders are typically used to sense the motion and speed of a motor shaft. Typically the encoder outputs two phase-shifted signals. Depending on the direction of movement, the phase shift is either +90° or -90°, this signal is referred to as the Quadrature Signal.

  • Page 7: Figure 2. Typical Mr340 Encoder System Connections To User's Motion Control System

    MICRONOR AG MR340-1 DIN Rail Module Controller Figure 2. Typical MR340 Encoder System connections to User’s Motion Control System Page 7 of 74...

  • Page 8: Initial Preparation

    Account for and inspect each item before the carton is discarded. In the event of a damaged instrument, write or call your nearest MICRONOR AG local representative or Swiss HQ.

  • Page 9: Warranty Information

    Warranty Information Warranty MICRONOR AG warrants this product to be free from defects in material and workmanship for a period of 1 (one) year from date of shipment. During the warranty period, we will, at our option, either repair or replace any product that proves to be defective.

  • Page 10: Installation And Operation

    Installation and Operation Mounting the Sensor Unit A broad range of MR34X rotary and linear sensors will work in conjunction with the MR340-1 Controller. Each MR34X sensor requires its own dedicated MR340-1 Controller. MR34X series Rotary Encoders offer resolution up to 1024ppr.

  • Page 11: Mounting The Mr340-1 Controller Module

    MICRONOR AG MR340-1 DIN Rail Module Controller Be sure to use proper fiber optic cleaming tools and procedures such as the Micronor MR321C Cleaning Kit. Improper tools and/or processes may damage or contaminate the optical interface. Mounting the MR340-1 Controller Module The controller unit mounts on standard 35mm DIN rail or it can be screw mounted to a wall or cabinet.

  • Page 12: Optical Connections To The Controller

    MICRONOR AG MR340-1 DIN Rail Module Controller Optical Connections to the Controller A duplex fiber optic cable is used to interconnect the sensor and controller. The sensor incorporates a 1.5m optical pigtail (or as specified by customer). If a longer connection to the controller is required, then an extension fiber cable having duplex LC connector may be used.

  • Page 13: 3.3.1 Cleaning Fiber Optic Connections

    MICRONOR AG MR340-1 DIN Rail Module Controller 3.3.1 Cleaning Fiber Optic Connections • Fiber Optic connectors must be kept clean from dust and other contaminants. • Always keep unmated connectors covered with an appropriate dust cap. • Do not touch the connector ends.

  • Page 14: Electrical Connections To Controller

    Figure 10. Typical MR340 Encoder Sensor System connections to Motion Control System The MR340-1 controller requires a 24V DC power supply delivering a minimum of 100mA current. The Fiber Optic Sensor shall be connected via the Duplex LC Fiber Optic cable. Fiber Optic extension cables interconnected via Duplex LC mating adapters may also be used.

  • Page 15: Interfacing With A Motor Drive

    MICRONOR AG MR340-1 DIN Rail Module Controller J1 Interface Connections 10C Screw Terminal Plug, Accepts 14 AWG to 30 AWG wires Phoenix P/N 1803659 (one supplied with the controller) Function Notes +24V Power Supply, 50mA Typical INPUT +24V Homing Input for Calibrating...

  • Page 16: Ssi And Rs485 Interface Connections (J3)

    Connector Plug: Hirose P/N 3240-10P-C(50) Digikey P/N H11343-ND Mouser P/N 798-324010PC50 Recommended Cable: Tensility International P/N 30-00534 Digikey P/N T1355-5-ND Micronor P/N MR430-99-01 (available separately) is a pre- assembled pigtail assembly with 1m pigtail Figure 15. Hirose Plug for J3-Connector Page 16 of 74...

  • Page 17: Usb Interface (J2)

    Note: The controller module is not USB powered and requires an external 24V power supply. Programmable Analog Output – Current or Voltage Connections The analog output of the MR340-1 Controller is user settable for either current or voltage output. This section assumes that the user has already programmed the analog output for one of these modes –...

  • Page 18: Figure 17. Connection For Voltage Output

    The current loop requires a voltage source. However that voltage source may come from the same power supply which powers both the encoder controller and the 4-20mA current receiver. The MR340-1 current output has an internal voltage requirement of 7.5V. Thus the maximum burden including wiring resistance should be less than: •...

  • Page 19: How To Install The Mr343 Linear Encoder

    MICRONOR AG MR340-1 DIN Rail Module Controller How To Install the MR343 Linear Encoder Film Mounting and Handling With MR343 Although the film positioning within the sensor slit is not critical, it should be mounted in such a way that it is as parallel to the sensor pick-up head as possible. Ideally the film should be mounted so it is perpendicular to the sensor head and always lay against one side of the slit.

  • Page 20: Figure 19. Td5334 Encoder Filmstrip Dimensions

    MICRONOR AG MR340-1 DIN Rail Module Controller Positioning the film affects the ultimate performance of the system. Apply just enough pull to the film so as it is stretched at all times. Too much pull will increase pressure on the read surface and may lead to high wear of the film.

  • Page 21: Initial Optical Power Level Referencing When Using Film

    This is required to compensate for fiber optic connector losses and variation between sensors and controllers. The MR340-1 controller is designed to perform this calibration procedure automatically once initiated by the user.

  • Page 22: Indexing For Linear Absolute Position

    MICRONOR AG MR340-1 DIN Rail Module Controller Indexing for Linear Absolute Position The MR343 linear sensor system is an incremental encoder and will not know the absolute position when the unit is powered up. Generally, an index point must be provided to obtain absolute position.

  • Page 23: Power-Up Or Periodic Optical Sensitivity Calibration

    MICRONOR AG MR340-1 DIN Rail Module Controller Power-up or Periodic Optical Sensitivity Calibration As part of the normal power-up procedure, it is possible to perform an optical power calibration. This is useful so that the system immediately starts counting with the highest accuracy.

  • Page 24: Initial System Configuration And Power-Up Examples

    • Linear Encoder using Filem without HOMING Region Micronor supplies ZAPPY® 302 software free-of-charge for MR30X and MR34X users. The software is designed for configuring and troubleshooting an MR30X or MR34X rotary or linear encoder system. The ZAPPY® screens and command buttons emulate the Modbus commands so that the user can become familiar with configuring and operating the system.
  • Page 25 MICRONOR AG MR340-1 DIN Rail Module Controller Power-Up Sequence Rotary Encoder using Quadrature Outputs Only Step Action Notes System ready to operate For Rotary Speed/Position Sensing Applications Using Modbus Interface Many integrated OEM systems will want to take advantage of the embedded functions within the MR340 controller for reading rotary encoder speed and position via the Modbus interface.

  • Page 26: Linear Encoder With Film And Using Homing Function

    MR340-1 DIN Rail Module Controller Linear Encoder With Film And Using HOMING Function Hardware Example: MR343 Linear Encoder, MR340-1 Controller and TD5334 series Film Strip with 1 or 2 HOMING regions. The diagram below illustrates an application employing a Film Strip with HOMING region on both sides.
  • Page 27 MICRONOR AG MR340-1 DIN Rail Module Controller Example: To perform the optical calibration using the external pin and set the counter to a predefined value, and set the turn direction to 1 t the initial setup should be as follows: Register 0x0001 “xxxx”...

  • Page 28: Linear Encoder With Film Without Homing Region

    MR340-1 DIN Rail Module Controller Linear Encoder With Film Without HOMING Region Hardware Example: MR343 Linear Encoder, MR340-1 Controller and TD5334 series Film Strip without HOMING region. The diagram below illustrates an application employing a Film Strip without any HOMING region.
  • Page 29 MICRONOR AG MR340-1 DIN Rail Module Controller Power-Up Sequence Non-HOMING Linear Encoder Step Command Name Action Notes User actuator system is at initial reference position. ZERO Input Pulse ZERO Input Controller will reset Position Counter to the Preset Value. or send FC05 0x007 command System ready.

  • Page 30: Modbus Serial Communications

    Note: The MR340-1 Controller requires a RS485/422-to-RS232 converter for interfacing to the RS232 COM Port of a computer. Note: The MR340-1 Controller uses the 235 address as the common call address. It will always respond to address 235. Pull-Up/Pull-Down Resistors Since the bus lines will go idle and into an undefined state when inactive, it is important that the lines are pulled-up and pulled-down respectively when inactive.
  • Page 31 MICRONOR AG MR340-1 DIN Rail Module Controller 2-Wire Circuit Half Duplex D1 (RX+ / TX+) is pulled up to +5V D0 (RX- / TX-) is pulled down to GND Recommended resistor is 1KΩ 4-Wire Circuit Full Duplex TXD1 (TX+) and...

  • Page 32: Modbus Communications Protocol

    XP/Vista/7/8/10 and requires .net Framework 4.0 to be on the machine. Please refer to section 6 for detailed information. Unless you plan to connect the MR340-1 to your own PLC or computer equipment for real-time data retrieval, you do not need to become familiar with the detailed communications protocol described herein.
  • Page 33 MICRONOR AG MR340-1 DIN Rail Module Controller Some Master devices (e.g., Modicon) require that the desired Register Number and not the Register Address be entered. The Register Number is 1 higher than the Register Address. For entry to these devices, add 1 to the Register Address shown in the tables below. The Register Address shown will then be output from these devices.
  • Page 34 MICRONOR AG MR340-1 DIN Rail Module Controller 0x130 0x131 CHA Amplitude Outputs the minimum observed minimum amplitude of the optical signal. Generally this signal is less than 15 counts because the optical signal should swing from 0 to 640counts. (0V to 2V).
  • Page 35 MICRONOR AG MR340-1 DIN Rail Module Controller Of course the encoder must be turning otherwise the signal can be anything from 0 to +640. 0x138 0x139 VCSEL Control 0 - 3 Factory use only – do NOT write to it.
  • Page 36 MICRONOR AG MR340-1 DIN Rail Module Controller 0 is minimum power, 255 is maximum power. It is used to balance each VCSEL diode. Power output may also be increased to compensate for long fiber optic link losses. 0x200 0x201 Voltage Mode 0 - 2 0 = SPEED mode with bipolar ±12V...
  • Page 37 MICRONOR AG MR340-1 DIN Rail Module Controller 0 = No action when external input is high. 1 = Resets the Position Counter. 2 = Initiate an Optical Calibration when high 4 = Initiate an Laser Calibration when high The above bit positions may be combined.
  • Page 38 MICRONOR AG MR340-1 DIN Rail Module Controller 0x238 0x239 Talker 0 - 4095 Directs the unit to output the position Rate/Mode or speed at the pre-programmed interval. Not implemented 0x300 0x301 CHA minimum engineering measurement output 0x301 0x302 CHA maximum...
  • Page 39 MICRONOR AG MR340-1 DIN Rail Module Controller FUNCTION FC05 – Write Single Coil Single Coil commands are used to trigger an action by sending True (0xFF) Register Register Name Description Address Number 0x001 0x002 Device Reset Same as a Power OFF and Power ON cycle.

  • Page 40: Detailed Description Of Each Function

    MICRONOR AG MR340-1 DIN Rail Module Controller Detailed Description of Each Function This section describes the physical outputs from the encoder monitoring circuit. Counter (Register 0x001) Register Address: 0x001 Register Count: 2 This is an internal summing counter that keeps accurate track of the full number of quadrature cycles and the multiplier as applied to in register 0x211.

  • Page 41: Voltage Mode (Register 0X200)

    MICRONOR AG MR340-1 DIN Rail Module Controller When the encoder rotates slower than 1 period per millisecond, the speed can only be updated whenever one period has elapsed. At high speeds the measurement is a combination of number of counts and the exact time these counts occurred during the past millisecond.

  • Page 42: Voltage Scale (Register 0X201)

    MICRONOR AG MR340-1 DIN Rail Module Controller POSITION Modes Description The output ranges from 0V to +10V (overrange +0.4V) for CW motion with +10V corresponding to the Voltage Scale setting (Register 24). The output ranges from 0V to -10V (overrange -0.4V) for CCW motion with -10V corresponding to the Voltage Scale setting (Register 24).

  • Page 43: Voltage Filter (Register 0X203)

    MICRONOR AG MR340-1 DIN Rail Module Controller Voltage Filter (Register 0x203) Register Address: 0x203 A user configurable low pass filter exists to allow smoothing of the calculated RPM based on user constants. It is the filtered RPM that is output to the voltage DAC. The 3dB filter point is...

  • Page 44: Current Mode (Register 0X204)

    MICRONOR AG MR340-1 DIN Rail Module Controller Current Mode (Register 0x204) Register Address: 0x204 The scalable current output provides filtered RPM or POSITION analog output depending upon the chosen mode. SPEED Description Modes Bipolar output over 4mA to 12mA to 20mA where 12mA is equal to 0 RPM.
  • Page 45 MICRONOR AG MR340-1 DIN Rail Module Controller POSITION Description Modes Bipolar output over 0mA to 12mA to 20mA where 12mA is equal to the zero position/counter value. CW rotation from 0 counter value to Current Scale setting corresponds to 12mA to 20mA. Overrange extends from 20mA to 23mA (maximum) CCW rotation from 0 counter value to negative Current Scale setting corresponds to 12mA to 4mA.
  • Page 46 MICRONOR AG MR340-1 DIN Rail Module Controller Unipolar output range of 4-24mA representing the absolute value of the Counter. 4mA represents the zero position and 20mA corresponds to the Current Scale setting (regardless of direction or sign). Overrange extends over 20-23mA range.

  • Page 47: Current Scale (Register 0X205)

    MICRONOR AG MR340-1 DIN Rail Module Controller Current Scale (Register 0x205) Register Address: 0x205 Default: 1000 RPM/full range. Range Description The value 0 turns this function OFF. This may be useful when the encoder is expected to operate at high speeds and the voltage output is not required.

  • Page 48: Counter Reset Mode (Register 0X208)

    MICRONOR AG MR340-1 DIN Rail Module Controller MODBUS commands: Address Register Description Access 0x204 Current Mode Read/Write 0x205 Current Scale Read/Write 0x207 Current Filter Read/Write Counter Reset Mode (Register 0x208) Register Address: 0x208 The internal Position Counter may be reset by applying a +24V signal to the Counter RESET Input located on pin 3 of J1.

  • Page 49: Counter Reset (Register 0X209)

    MICRONOR AG MR340-1 DIN Rail Module Controller Counter Reset (Register 0x209) Register Address: 0x209 The internal Position Counter will be preset to this pre-programmed value whenever the External Hardware Reset input goes from logic 0 to logic 1. Sometimes this function is also called “homing”...

  • Page 50: Turn Direction (Register 0X20B)

    MICRONOR AG MR340-1 DIN Rail Module Controller  Due to the inner workings of the MR340 firmware, the controller can only be set to x2 or x4 multiplication.  This setting will NOT affect speed calculation. MODBUS commands: Address Register...

  • Page 51: Line Driver Output Voltage (Register 0X214)

    MICRONOR AG MR340-1 DIN Rail Module Controller Line Driver Output Voltage (Register 0x214) Register Address: 0x214 This parameter defines the output voltage level of the complementary line driver outputs. The output voltage should be adjusted to the receiving device such as a VFD drive or similar.

  • Page 52: Eeprom Set (Fc05-2)

    MICRONOR AG MR340-1 DIN Rail Module Controller EEPROM SET (FC05-2) Function Call FC05-2 Parameters are not automatically saved to EEPROM. The user must issue a special command to commit the parameters to EEPROM. It is highly advisable to always initiate an EEPROM commit otherwise all the stored parameters will be lost when power is removed to the MR340 Controller.

  • Page 53: Error Handling And Troubleshooting

    MICRONOR AG MR340-1 DIN Rail Module Controller Error Handling and Troubleshooting Explanation of Status and Error Handling The MR340 Controller incorporates a sophisticated integrity monitoring, error and failure reporting system. There are four Error Groups: 1. EEPROM At start-up the EEPROM checksum and EEPROM data integrity are checked.
  • Page 54 MICRONOR AG MR340-1 DIN Rail Module Controller Error Groups Group 4 Group 3 µProcessor 850n VCSEL VCSEL CTRL DRIVER 980n Status Gain/Offset Serial 850n Amplifier A Signal Detection 980n Amplifier B Group 1 Group 2 Power EEPROM Supply All errors get logged but may not necessarily provide visual indication. The user should take necessary action based on the severity level of the reported status/error.
  • Page 55 MICRONOR AG MR340-1 DIN Rail Module Controller Table 1. Error Codes Hardware Related Status Indication EEPROM Description Remedy Announced Cleared EEPROM INIT Firmware automatically re- Recycle Blink 5x initializes the EEPROM. EEPROM is not initialized not Power User must remove power initialized.
  • Page 56 MICRONOR AG MR340-1 DIN Rail Module Controller Position Sensor Failures Description Remedy How Cleared Announced Sensor Disconnect Check Fiber Optic self clear Blink 3x connection to the Detect low optical power when sensor. Initiate a new restored. code Sensor pairing.
  • Page 57 MICRONOR AG MR340-1 DIN Rail Module Controller Communication Failures Description Remedy How Cleared Announced 1025 CMD Unknown Function Check your software self clear Blink 1x for correct function after one blink once A non-valid or non- calls. implemented ModBus function was sent to the...

  • Page 58: Reading The Error Counters

    MICRONOR AG MR340-1 DIN Rail Module Controller Reading The Error Counters The entire packet of all 18 error counters may be read by issuing MODBUS command to Register 0x040 with a register count of 18. The sequence of registers is according to the error number in Table 1 in ascending order.

  • Page 59: Specifications

    MICRONOR AG MR340-1 DIN Rail Module Controller Specifications MR340-1 DIN Rail Mount Controller Electrical Interface Note: All electrical connections shall not exceed 3 meters Connector 10-pin Screw Terminal, 30-14 AWG Phoenix Mating Plug 1803659, supplied with Controller Quadrature Outputs Quadrature A+/A-/B+/B-...

  • Page 60: Mr343 Linear Sensor

    MICRONOR AG MR340-1 DIN Rail Module Controller MR343 Linear Sensor Specifications for the sensor are listed for reference purposes only. Please consult separate data sheet for current information. Position Measurement Description Specification Notes Resolution 100µm Dependent on film. Contact factory for specific requirements.

  • Page 61: Zappy® 302 Software

    MR340-1 DIN Rail Module Controller ZAPPY® 302 SOFTWARE Micronor provides ZAPPY® 302 with the MR340 series Controller Module. ZAPPY® for MR302 runs on Windows XP/Vista/7/8/10 with .net Framework 4.0 installed. Zappy® 302 is used for diagnostics and troubleshooting in case the unit appears not to work properly. Zappy® 302 is also useful for the engineer to become familiar with the controller board.

  • Page 62: Figure 21. Zappy® System Functions Screen

    MICRONOR AG MR340-1 DIN Rail Module Controller Figure 21. ZAPPY® System Functions screen Page 62 of 74...

  • Page 63: User Functions Screen

    MICRONOR AG MR340-1 DIN Rail Module Controller User Functions screen Figure 18 shows example of User Functions screen. In the User Functions screen, buttons are provided to read from and write to the various Controller registers. These buttons emulate the corresponding Modbus commands. Here, the user can actively operate the encoder system and oberve system status –...

  • Page 64: Service Functions Screen

    MICRONOR AG MR340-1 DIN Rail Module Controller Service Functions screen Figure 19 shows example of the Service Functions screen. Figure 23. ZAPPY® Service Functions screen The Service Functions page allows the user to observe inner workings of the unit. “Get ADC” readings shows the user what the analog optical signal levels are.

  • Page 65: Command List Screen

    MICRONOR AG MR340-1 DIN Rail Module Controller Command List screen Figure 20 shows example of the Command List screen. Figure 24. ZAPPY® Command List screen The Command List page lets the user see all the commands available and their settings programmed in the controller.

  • Page 66: Mr340 Theory Of Operation

    In this section, we explain the inner workings of the MR340 series fiber optic incremental encoder system. The system incorporates an all-optical design per Micronor’s US Patent 7,196,320. There are no electronics in the sensor whatsoever. The controller sends light of two distinct different colors (850nm and 980nm) through the transmit fiber.
  • Page 67 MICRONOR AG MR340-1 DIN Rail Module Controller Two light beams are generated by two VCSEL diodes, emitting at 850nm and 980nm. The light of the two VCSEL diodes is combined using an optical dichroic beam splitter. The two wavelengths are guided by the optical fiber as parallel information.

  • Page 68: Mr340-1 Reprogramming The Firmware

    Download from the Micronor web site: REFLASH-MR302 • Install this software on your PC. Request from Micronor or the authorized Service representative the new Firmware: MR302-DIN_V1pxpxx.hex Note: Only controllers with Firmware Version 1.1.22 or higher are capable of being reflashed. Setup the MR340-1 as shown to the left.
  • Page 69 MICRONOR AG MR340-1 DIN Rail Module Controller After starting he software define the Virtual Comport that the PC assigns when the USB is connected. Select the firmware hex-file that previously was stored on your PCB. The software validates the integrity of the hex file.
  • Page 70 MICRONOR AG MR340-1 DIN Rail Module Controller Upon release of the button the firmware is being transmitted and written to the Flash Memory of the MR340- 1 unit. The green progress bar indicates the writing progress. When the write is successfully completed you may disconnected the unit.

  • Page 71: Damaged Firmware Recovery

    MICRONOR AG MR340-1 DIN Rail Module Controller DAMAGED Firmware Recovery If for some reason the firmware is damaged then the recovery is as follows: Select appropriate Virtual Comport Select Hex File with valid Firmware. Double Click the “Factory Flash” label...

  • Page 72: Mechanical Reference Drawings

    MICRONOR AG MR340-1 DIN Rail Module Controller Mechanical Reference Drawings These reference drawings can be found on the following pages. MR340-1 Controller MR343 Linear Sensor Page 72 of 74...
  • Page 73 1 MAKE SURE FIBER OPTIC PORT IS THE INFORMATION CONTAINED IN THIS DRAWING IS COVERED WHEN NOT IN USE. MATERIAL: THE SOLE PROPERTY OF MICRONOR INC. ANY SEE NOTES SIZE DWG. NO. REPRODUCTION IN PART OR AS A WHOLE WITHOUT...
  • Page 74 THE INFORMATION CONTAINED IN THIS DRAWING IS MRI SAFE LINEAR ENCODER WITH 400 m m INTERFACES. MATERIAL: THE SOLE PROPERTY OF MICRONOR INC. ANY SEE NOTES SIZE DWG. NO. RESOLUTION, 3M PIGTAIL LENGTH WITH REPRODUCTION IN PART OR AS A WHOLE WITHOUT 98-0340-54 THE WRITTEN PERMISSION OF MICRONOR INC.
