Firmware Update/Flash Procedure
The design concepts and engineering details embodied in this manual, which are the property of
MICRONOR INC., are to be maintained in strict confidence; no element or detail of this manual is to
be spuriously used, nor disclosed, without the express written permission of MICRONOR INC. All
rights are reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without prior written permission from MICRONOR INC.
MR430-1
ZapFree
Doc No: 98-0430-13
Revision A2 dated April 3, 2019
Notice of Proprietary Rights
© COPYRIGHT 2018-2019, MICRONOR INC.
CAMARILLO, CALIFORNIA
UNITED STATES OF AMERICA
®

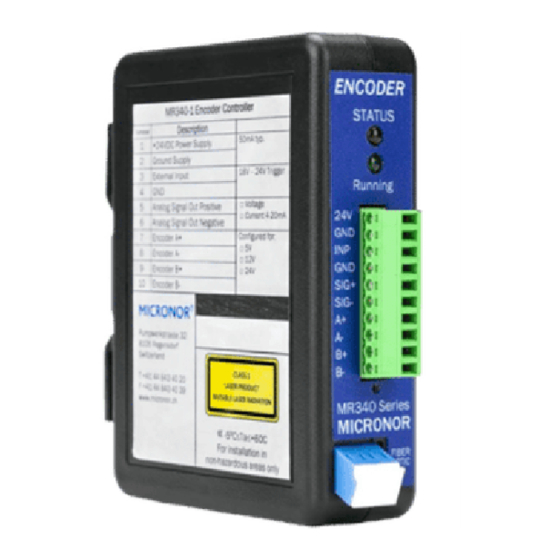

Controller
MICRONOR INC.
900 Calle Plano
CAMARILLO, CA 93012 USA
PH +1-805-389-6600
support@micronor.com
www.micronor.com
For Support in Europe:
MICRONOR AG
Pumpwerkstrasse 32
CH-8105 Regensdorf
Switzerland
PH +41-44-843-4020
support@micronor.com
www.micronor.com
Advertisement
Table of Contents
Related Manuals for Micronor MR430-1
Summary of Contents for Micronor MR430-1
- Page 1 The design concepts and engineering details embodied in this manual, which are the property of MICRONOR INC., are to be maintained in strict confidence; no element or detail of this manual is to be spuriously used, nor disclosed, without the express written permission of MICRONOR INC. All rights are reserved.
- Page 2 MR430 Firmware Update/Flash Procedure Revision History Date Description 4/30/2018 Initial Release 6/21/2018 Product Release 4/3/2019 Removed Fax Number Page 2 of 6...
- Page 3 Download from the Micronor web site: FLASH_MR430.zip Extract the *.msi file and install this software on your PC. Request from Micronor or the authorized Service representative the new Firmware: MR430-1_V1pxpxx.hex (for DIN Rail version) Setup the MR430-1 as shown to the left.
- Page 4 Caution: Make sure it is the hex- file provided to you by Micronor. It is possible to flash any valid hex-file. However at that point the MR430-1 unit will no longer be functional and may have caused internal damage. Click Start.
- Page 5 MR430 Firmware Update/Flash Procedure Upon release of the button the firmware is being transmitted and written to the flash memory of the MR430-1 controller. The green progress bar indicates the writing progress. When the write is successfully completed, disconnected the controller from the PC.
- Page 6 Select Hex File with valid Firmware. Double Click the “Factory Flash” label. Turn 24V power OFF. Push the MR430-1 Reset button and hold. Turn 24V Power ON (keep button pressed). Wait for 5 seconds and observe the red and green LED blink in alternating fashion.
