Three adults are recommended for this step. Please ensure the assembled Flat Steel frames are held
firmly during assembly to avoid them flexing back and causing injury.
With two people firmly holding the ends of the assembled Flat Steel frame, push inward to form a circle.
Align the holes and secure the ends with Bolt (#P), Cap Nut (# Q), Allen Wrench (# K) and Wrench (# D)
as shown below. This should be done by the third person while the other two people are firmly holding the
ends of the tubes in place.
NOTE: Once the enclosure top frame is assembled, make sure the connection points are covered by the
enclosure sleeve.

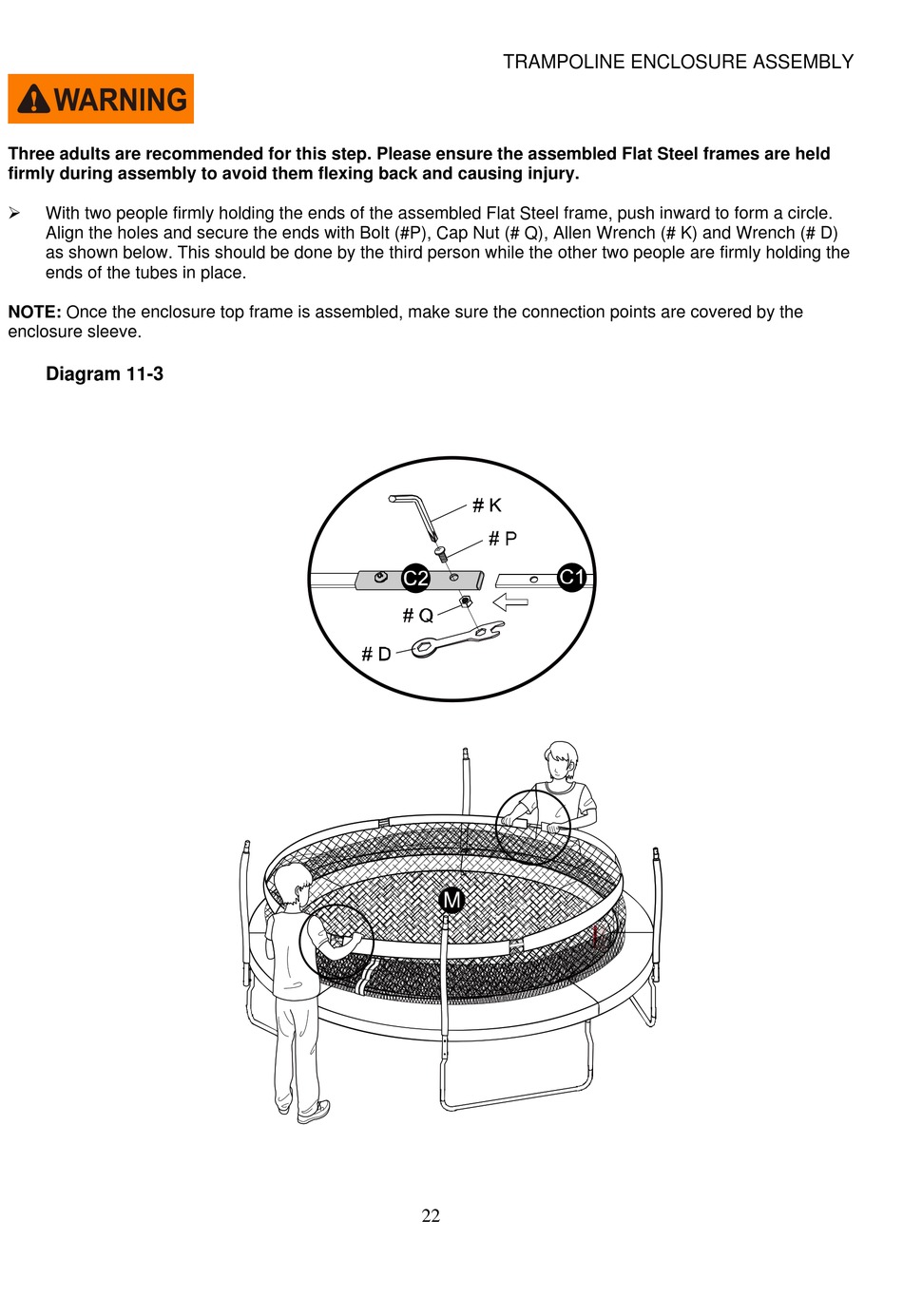

Diagram 11-3
TRAMPOLINE ENCLOSURE ASSEMBLY
22
