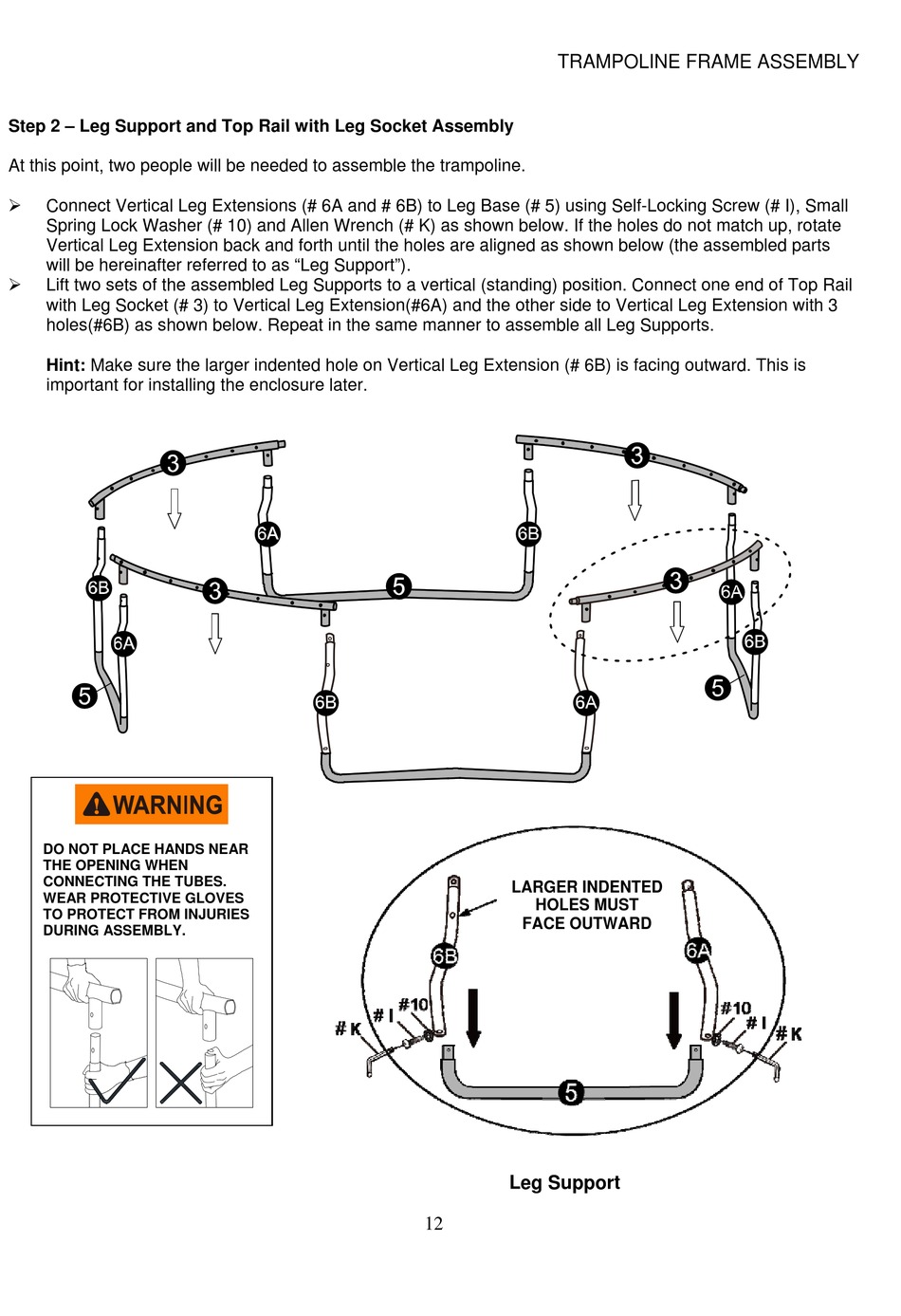

Step 2 – Leg Support and Top Rail with Leg Socket Assembly
At this point, two people will be needed to assemble the trampoline.

Connect Vertical Leg Extensions (# 6A and # 6B) to Leg Base (# 5) using Self-Locking Screw (# I), Small
Spring Lock Washer (# 10) and Allen Wrench (# K) as shown below. If the holes do not match up, rotate
Vertical Leg Extension back and forth until the holes are aligned as shown below (the assembled parts
will be hereinafter referred to as "Leg Support").

Lift two sets of the assembled Leg Supports to a vertical (standing) position. Connect one end of Top Rail
with Leg Socket (# 3) to Vertical Leg Extension(#6A) and the other side to Vertical Leg Extension with 3
holes(#6B) as shown below. Repeat in the same manner to assemble all Leg Supports.
Hint: Make sure the larger indented hole on Vertical Leg Extension (# 6B) is facing outward. This is
important for installing the enclosure later.
DO NOT PLACE HANDS NEAR
THE OPENING WHEN
CONNECTING THE TUBES.
WEAR PROTECTIVE GLOVES
TO PROTECT FROM INJURIES
DURING ASSEMBLY.
TRAMPOLINE FRAME ASSEMBLY
LARGER INDENTED
HOLES MUST
FACE OUTWARD
