MODELS AVAILABLE:
AR-2100 SERIES (CLEAR ANODIZED)
AR-2100-BLK SERIES (BLACK ANODIZED)
AR-2100–AR-2108 Side Rail Pairs (Clear or Black Anodized)
Page 2–3
Packaging Contents and Configurations
Page 4
Side Rail Assembly
PRIME DESIGN, A SAFE FLEET BRAND
Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK
Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Safe Fleet PRIME DESIGN AR-2100-BLK Series
Summary of Contents for Safe Fleet PRIME DESIGN AR-2100-BLK Series
- Page 1 AR-2100–AR-2108 Side Rail Pairs (Clear or Black Anodized) Page 2–3 Packaging Contents and Configurations Page 4 Side Rail Assembly PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...

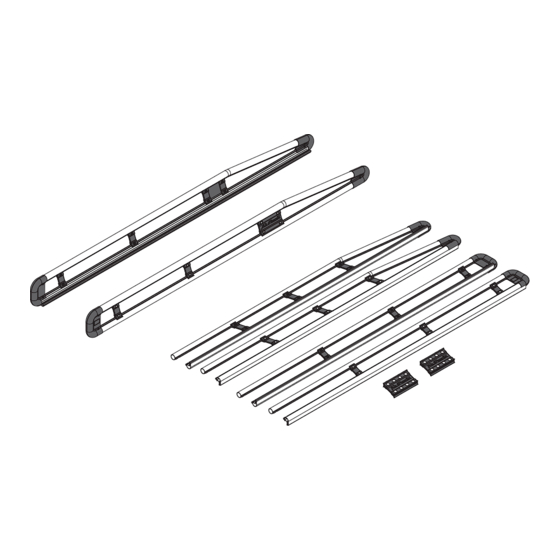

- Page 2 CONTENT OVERVIEWS NOTE: Solid Side Rail pairs are packaged fully assembled. Split Side Rail pairs are packaged with Front Left/Right Side Rails, Rear Left/Right Side Rails, and Left/Right Rail Connectors, and require assembly. See Page 4 for Assembly Instructions. 76” Side Rail Assembly-Solid Pair AR-2100 (Clear Anodized) AR-2100-BLK (Black Anodized) 76.00”...
- Page 3 128” Side Rail Assembly, Split Pair with 6” Side Rail Connectors AR-2105 (Clear Anodized) AR-2105-BLK (Black Anodized) 6.00” 52.00” 76.00” 128.00” 136” Side Rail Assembly, Split Pair with 6” Side Rail Connectors AR-2106 (Clear Anodized) AR-2106-BLK (Black Anodized) 6.00” 60.00” 76.00”...
- Page 4 SIDE RAIL ASSEMBLY –SPLIT RAIL PAIRS ONLY NOTE: No assembly needed for AR-2100 and AR-2101 (Solid Pair Assemblies). Assemble Side rails as shown. Torque to 80 in-lbs USAM-AR2100SERIES-US01 Rev-A 0319 To install Crossbars and Roller, refer to your respective AR Crossbar Module Assembly Manual included with your chosen rack configuration features.
