bq76PL536PGM-1 Programming Board

This document covers the initial connection and installation of the Texas Instruments bq76PL536A
program (OTP) board, P/N bq76PL536PGM-1. For device details and how to set up the secondary
protection, see the corresponding data sheet for bq76PL536A (SLUSAD3) or bq76PL536A-Q1
(SLUSAM3). This document refers to the bq76PL536A, but all the content applies to the bq76PL536A-Q1
also.
1
2
3
4
5
6
......................................................................................................................
7
.................................................................................................................
8
1
2
3
4
5
6
7
8
Loading Image to bq76PL536A OTP EPROM Programmer
9
10
11
12
13
14
15
Passing/Failing. IC Failed to Program Fail Count Increases by 1
16
17
18
19
20
21
22
23
24
25
26
SLUU468A - December 2010 - Revised July 2015
Submit Documentation Feedback
...................................................................................
.........................................................................................................
........................................................................................
............................................................................................
..............................................................................................
...........................................................................................................
...........................................................................................................
.....................................................................................................
............................................................................................
............................................................................................
............................................................................................................
.....................................................................................................
..................................................................................................................
.........................................................................................
..............................................................................................................
.............................................................................................
...............................................................................................
.........................................................................................................
.............................................................................................................
..........................................................................................
.................................................................................
.................................................................................
Copyright © 2010-2015, Texas Instruments Incorporated
SLUU468A - December 2010 - Revised July 2015
Contents
.......................................................
...........................................................
...........................................................
...............................................................................
.........................................................................
.....................................................
...........................................................................
.............................................................................
.............................................................................
Quick Start Guide
.....................................
2
2
3
4
9
10
14
14
3
3
4
5
5
6
6
6
7
7
7
8
8
8
9
9
10
10
11
11
12
12
12
13
13
13
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the bq76PL536PGM-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments bq76PL536PGM-1

Summary of Contents for Texas Instruments bq76PL536PGM-1

  • Page 1: Table Of Contents

    Programming Board This document covers the initial connection and installation of the Texas Instruments bq76PL536A program (OTP) board, P/N bq76PL536PGM-1. For device details and how to set up the secondary protection, see the corresponding data sheet for bq76PL536A (SLUSAD3) or bq76PL536A-Q1 (SLUSAM3).

  • Page 2: Software And Hardware Requirements

    See the bq76PL536EVM-3 (SLUU437) User's Guide for detailed installation information. Installing the bq76PL536PGM-1 Programming Software Download the bq76PL536PGM-1 Programming Software from the tool folder on TI.com located here: http://www.ti.com/tool/bq76pl536pgm-1-sw?keyMatch=bq76pl536. Run the file "bq76PL536 programmer setup.msi". Installation is automatic. This installs the GUI software for Windows.

  • Page 3: Connecting Bq76Pl536Pgm-1 And Bq76Pl536Evm-3 Boards

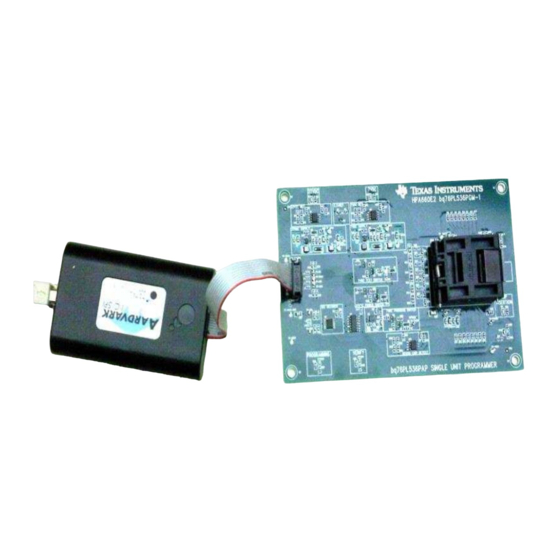

    Figure 2. bq76PL536PGM-1 1. Connect the USB cable to the Aardvark adapter and your PC. 2. Connect the Aardvark ribbon cable to the 10-pin header on the bq76PL536PGM-1 programmer board. 3. Run the bq76PL536A OTP EPROM programmer software on your PC.

  • Page 4: Eprom Programming Procedures

    (c) Save image file in YYYYYY.xml format (Figure (d) Save the YYYYYY.xml file to a directory. 3. Connect the Aardvark adapter to the bq76PL536PGM-1 programming board. See Section 4. Run bq76PL536A OTP EPROM Programmer Software. 5. Load the image created with bq76PL536EVM-3...

  • Page 5: Creating Programmable Image

    Data. Enter OTP data values to the Protected registers. Production lot information and more Figure 5. Entering Optional Product Data SLUU468A – December 2010 – Revised July 2015 bq76PL536PGM-1 Programming Board Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 6: Saving Image File

    Figure 6. Saving Image File Figure 7. Loading Image to bq76PL536A OTP EPROM Programmer Figure 8. Loading Image to bq76PL536A OTP EPROM Programmer bq76PL536PGM-1 Programming Board SLUU468A – December 2010 – Revised July 2015 Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 7: Check Hardware Setup

    EPROM Programming Procedures www.ti.com Figure 9. Check Hardware Setup Figure 10. Detecting IC Figure 11. IC Detected. IC Inserted Correctly SLUU468A – December 2010 – Revised July 2015 bq76PL536PGM-1 Programming Board Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 8: Warning For No Ic Or Inserting Incorrectly

    NOTE: GO Back to Step 5 Figure 13. Programming IC Passing count will increase by 1. Figure 14. Passing or Failing. IC is Programmed Correctly bq76PL536PGM-1 Programming Board SLUU468A – December 2010 – Revised July 2015 Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 9: Warnings And Troubleshooting

    IC is a failed IC and must be disregarded. (c) Go to Section 6.5. Verify Blank Check feature. Request that TI send blank ICs. SLUU468A – December 2010 – Revised July 2015 bq76PL536PGM-1 Programming Board Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 10: Advanced Mode View Detail

    Connect dongle to your PC (Figure 21). Program Image • Program OTP trim value to IC (Figure 22). • Click icon or F5. bq76PL536PGM-1 Programming Board SLUU468A – December 2010 – Revised July 2015 Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 11: Advanced Mode Main View

    Check whether OTP is blank or not (Figure 25 Figure 26). Refresh Figure 19. Advanced Mode Main View Figure 20. Copying Measurements Data to Clipboard SLUU468A – December 2010 – Revised July 2015 bq76PL536PGM-1 Programming Board Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 12: Connect To Dongle

    No 22V and 7V DC LEDs are on programming board. ± Repeat 4.0 procedures. Figure 22. Program Image Figure 23. Comparing OTP. OTP Matches bq76PL536PGM-1 Programming Board SLUU468A – December 2010 – Revised July 2015 Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 13: Comparing Otp. Otp Does Not Match

    Figure 24. Comparing OTP. OTP Does not Match Figure 25. Checking for Blank OTP. OTP is Blank Figure 26. Checking for Blank OTP. OTP is not Blank SLUU468A – December 2010 – Revised July 2015 bq76PL536PGM-1 Programming Board Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...

  • Page 14: Support

    ......................• Added data sheet numbers ........................ • Changed image for board ................... • Changed images by resizing and for clarity Revision History SLUU468A – December 2010 – Revised July 2015 Submit Documentation Feedback Copyright © 2010–2015, Texas Instruments Incorporated...
