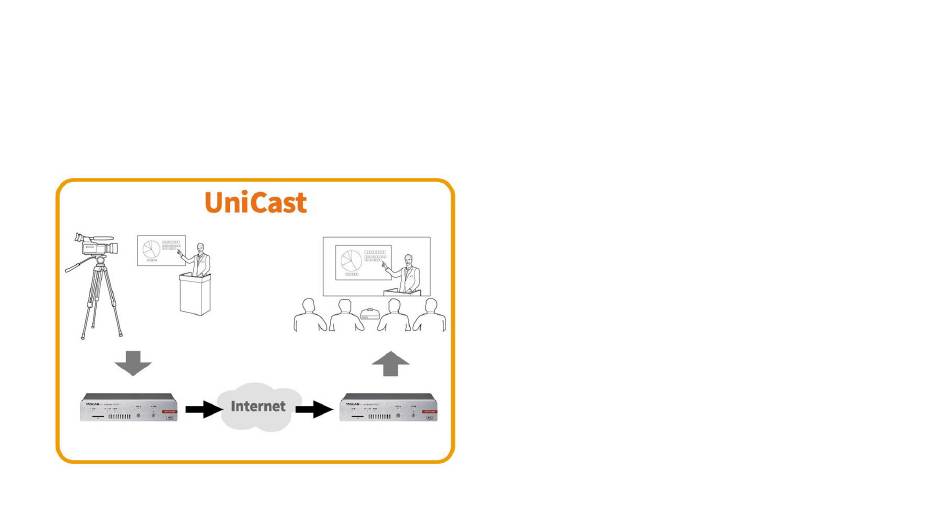

Point-to-point streaming unicast between different networks
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VS-R265／VS-R264
Guide to point-to-point streaming (unicast) between different
networks
<Precautions>
It is necessary to secure a stable bandwidth to
establish a stable streaming between bases in
different networks. Please consult with a
network contractor in case construction is
needed.
TEAC Corporation
Issued October 2020 (revised December 2021)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-R265 and is the answer not in the manual?

Questions and answers

Related Manuals for Teac VS-R265

Summary of Contents for Teac VS-R265

  • Page 1 VS-R265／VS-R264 Guide to point-to-point streaming (unicast) between different networks <Precautions> It is necessary to secure a stable bandwidth to establish a stable streaming between bases in different networks. Please consult with a network contractor in case construction is needed. TEAC Corporation...

  • Page 2: Table Of Contents

    3 ・Required equipment ・・・・・・ page 4~5 ・Connection ・・・・・・ 1. Encoder side setup page 6 (1) PC setup ・・・・・・ (2) VS-R265 setup page 7~11 ・・・・・・ page 12 Confirming the settings ・・・・・・ 2. Decoder side setup page 13 (1) PC setup ・・・・・・...

  • Page 3: Required Equipment

    ・Required equipment 【Encoder side】 VS-R265 (or VS-R264 ) 1 set PC (for setup) 1 set Router 1 set Camera(s) or other visual equipment 1 set 【Decoder side】 VS-R265 (or VS-R264 ) 1 set PC (for setup) 1 set Router 1 set...
  • Page 4 ・Connection: Connect as shown in the picture below. Decoder side Encoder side VS-R265 ① Camera(s), VS-R265 ② Router ① Router ② Video etc. monitor HDMI HDMI Global IP ② Global IP ① e.g. 60.###.###.88 Port no. 6400 (e.g.)

  • Page 5: Connection

    ・Connection ① Obtaining the global IP address (public IP address) of the decoder’s network Connect the computer and the decoder on the same network and search “what is my IP” on Google (*1). Write down the network’s global IP address. e.g.

  • Page 6: Encoder Side Setup (1) Pc Setup

    1. Encoder side setup (1) PC setup Since the VS-R265’s factory default private IP address is 192.168.1.100, this guide will use this initial value to set the computer’s private address. IP address : 192.168.1.19 (*1) Sub-net mask : 255.255.255.0 Default gateway : 192.168.1.1 (*2: router’s IP address)

  • Page 7: Vs-R265 Setup Page 7~11

    1. Encoder side setup (2) VS-R265 setup #1 ① Use the TASCAM DISCOVERY application to recognize the VS-R265 on the computer. Press this button to open the Streaming Dashboard ② Press the Open button on the right to open the Streaming Dashboard on a browser.
  • Page 8 1. Encoder side setup (2) VS-R265 setup #2 Select “Device Settings” [Streaming Dashboard screen] ③ Select “Device Settings” on the top right of the Streaming Dashboard screen. ④ Select the Network tab on the left, [Device Settings > Network screen］...
  • Page 9 1. Encoder side setup (2) VS-R265 setup #3 [Device Settings > General screen］ ⑤ Select the General tab on the left, set the Encoder to ON, and save settings. Set the Encoder to ON and save...
  • Page 10 (2) VS-R265 setup #4 [Encoder Control screen］ ⑥ Select Encoder Control on the top center. Turning ON the Encoder will display the VS-R265 on the screen. ⑦ Press the Configure button below Press the Configure button “Output Settings” and open the Output Settings screen.
  • Page 11 1. Encoder side setup (2) VS-R265 setup #5 [Output Settings Unicast1 screen］ ⑧ The settings are as shown on the screen. Unicast Output1 : On Set Unicast Output1 to On Specify the port number of the decoder router. Protocol : Select “rtp://” to increase 60.###.###.88...

  • Page 12: Confirming The Settings

    1. Confirming the settings Decoder side Encoder side Camera(s), VS-R265 ① Router ② Router ① VS-R265 ② Video etc. monitor 192.168.1.1 192.168.1.21 HDMI HDMI Global IP ① Global IP ② 60.###.###.88 Port no. 6400 192.168.1.19...

  • Page 13: Decoder Side Setup (1) Pc Setup

    2. Decoder side setup (1) PC setup Since the VS-R265’s factory default private IP address is 192.168.1.100, this guide will use this initial value to set the computer’s private address. IP address : 192.168.1.19 (*1) Sub-net mask : 255.255.255.0 Default gateway : 192.168.1.1 (*2: router’s IP address)

  • Page 14: Vs-R265 Setup Page 14~18

    1. Decoder side setup (2) VS-R265 setup #1 ① Use the TASCAM DISCOVERY application to recognize the VS-R265 on the computer. Press this button to open the Streaming Dashboard ② Press the Open button on the right to open the Streaming Dashboard on a browser.
  • Page 15 1. Decoder side setup (2) VS-R265 setup #2 [Streaming Dashboard screen］ Select “Device Settings” ③ Select “Device Settings” on the top right of the Streaming Dashboard screen. [Device Settings > Network screen］ ④ Select the Network tab on the left, change “Address Assignment”...
  • Page 16 1. Decoder side setup (2) VS-R265 setup #3 [Device Settings > General screen］ ⑤ Select the General tab on the left, set the Decoder to ON, and save settings. Set the Decoder to ON and save...
  • Page 17 1. Decoder side setup (2) VS-R265 setup #4 [Decoder Control screen］ ⑥ Select Decoder Control on the top right. Turning ON the Decoder will display the VS-R265 on the screen. ⑦ Press the Configure button below Press the Configure button [Decoder Stream Settings screen］...
  • Page 18 1. Decoder side setup (2) VS-R265 setup #5 [Decoder Stream Settings screen］ ⑧ The settings are as shown on the screen. Source Encoder : Other Encoder Stream Type : Unicast Protocol : rtp:// or udp:// (match with the encoder) Port...

  • Page 19: Router Setup

    Set the router forwarding (opening) port to receive data from external networks. In case the unit’s DHCP server function is enabled, set the VS-R265 IP address to be fixed in order to use this function. If the IP address is changed dynamically by the...

  • Page 20: Confirming All Settings

    2. Confirming all settings Decoder side Encoder side Router ② Camera(s), VS-R265 ① VS-R265 ② Router ① Video etc. monitor 192.168.1.1 192.168.1.1 192.168.1.21 192.168.1.11 HDMI HDMI Global IP ① Global IP② 60.###.###.88 Port no. 6400 192.168.1.19 192.168.1.29...

  • Page 21: Troubleshooting

    ⇒Make sure the VS-R265’s private IP address matches that of the computer’s. ⇒The private IP address may change dynamically if the VS-R265’s private IP address is set to DHCP. Use a USB memory flash, etc. or the TASCAM DISCOVERY application to check the private IP address.
