Installation
Turn the water off at the main, or at
the stops, before beginning.

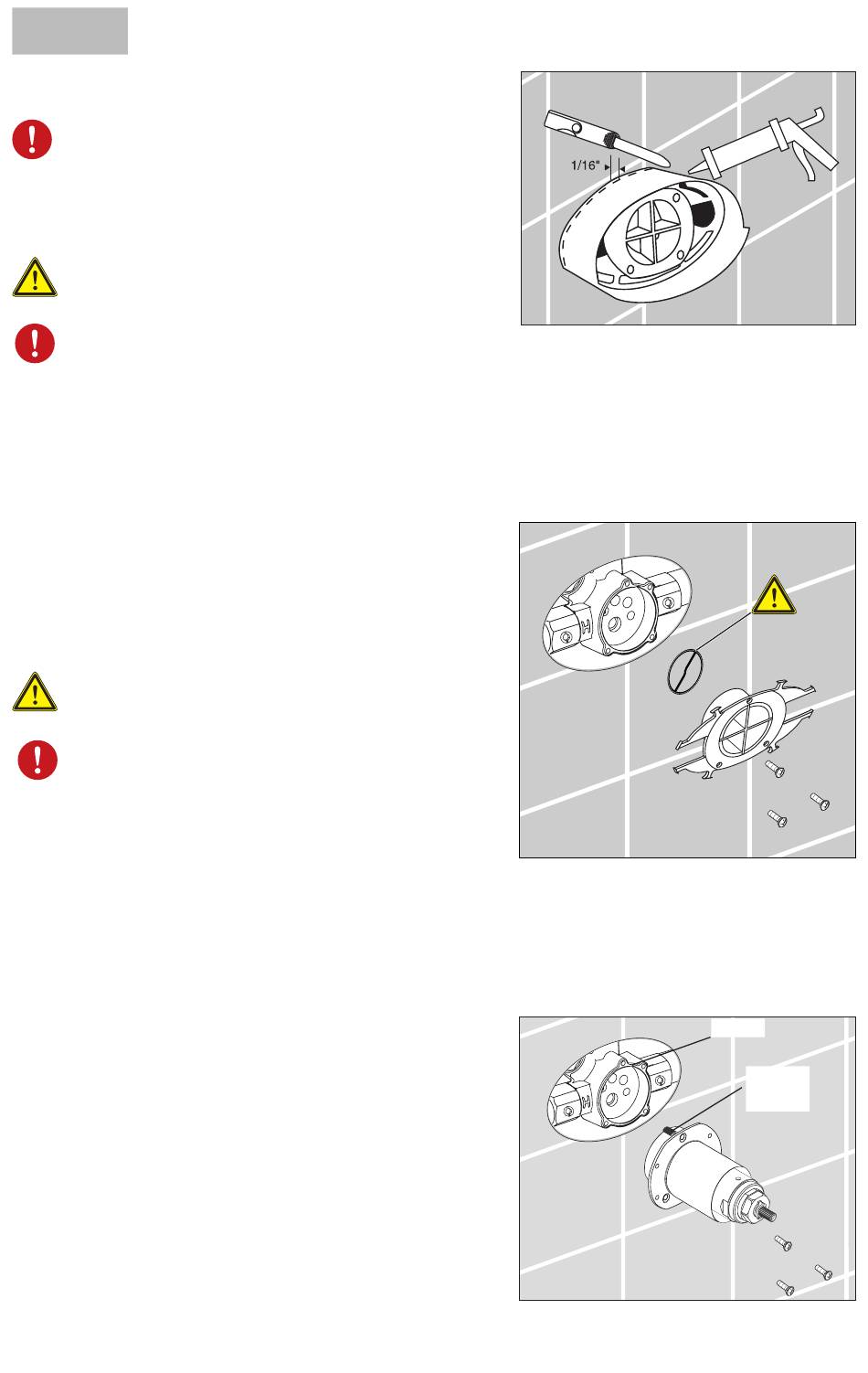

Cut the installation box (i-box) so that it extends
1/16" outside the finished wall.
Seal the wall around the i-box
with waterproof sealant.
Failure to seal the wall can lead
to possible water damage.
Remove the label.
Cut the eight support arms that connect the flush-
ing plug to the i-box. Remove the flushing plug.
Do not discard the screws.
Be sure that the blue sealing
gasket is removed as well.
Failure to remove the gasket
can result in possible damage
to the cartridge and possible
water damage.
Insert the cartridge in the rough. The locator tab
goes straight into the notch on the rough.
Use the flushing plug screws to connect the
cartridge retainer plate to the rough. Tighten the
screws evenly with a manual screwdriver. Do not
over tighten the screws.
8
notch
locator
tab
