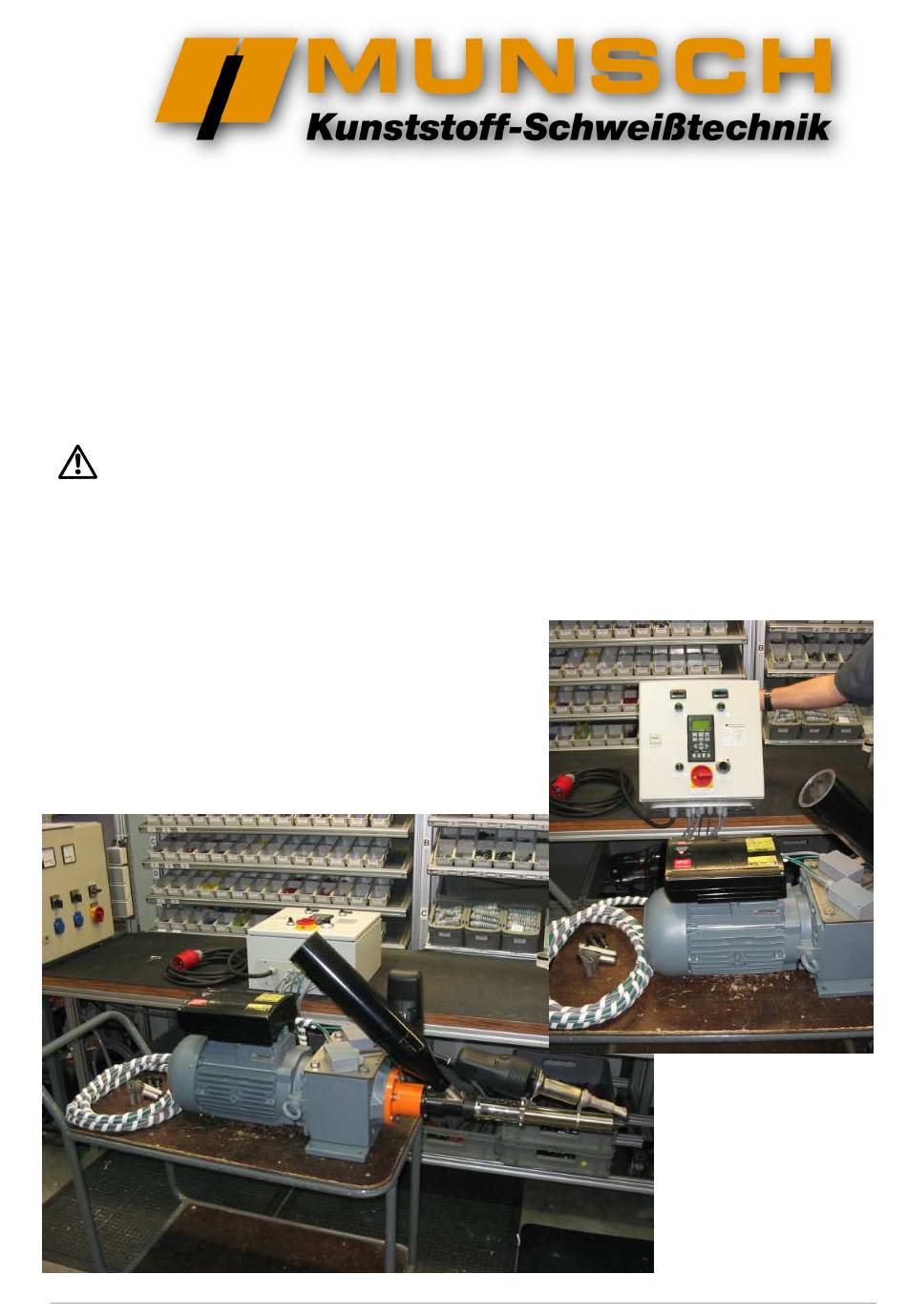

Operating Instructions
Type:
GM-50-FU
These operating instructions contain important
information to be observed for extruder operation
and maintenance.
It is therefore imperative that they be read and their
contents fully understood by the operators before the
extruder is placed in service.
MUNSCH Kunststoff-Schweißtechnik GmbH
Serial No.:
Article No.:
Issue 12.2009/Rev. 01
K02912
Page 1/15
Advertisement
Table of Contents
Related Manuals for Munsch GM-50-FU
Summary of Contents for Munsch GM-50-FU
- Page 1 It is therefore imperative that they be read and their contents fully understood by the operators before the extruder is placed in service. MUNSCH Kunststoff-Schweißtechnik GmbH Issue 12.2009/Rev. 01 Page 1/15...
-
Page 2: Table Of Contents
Extruder GM-50-FU Scope of delivery: Please check that the delivery is complete. The delivery comprises: 1 extruder 2 compression nozzles 1 control cabinet 1 hot air hood 1 welding shoe, machined 3 preheat nozzles 2 nozzles Contents GENERAL ..................................4 SAFETY ..................................4 ...............5... - Page 3 EG-Konformitätserklärung des Herstellers nach der EG-Maschinenrichtlinie 2006/42/EG Anhang II, Nr. 1 A EC-Declaration of Conformity by the Manufacturer as defined by machinery directive 2006/42/EC, Annex II, No. 1 A MUNSCH Kunststoff-Schweißtechnik GmbH Im Staudchen D-56235 Ransbach-Baumbach Germany Mr. Johann Dausenau, Kunststoffschweißtechnik GmbH,...
-
Page 4: General
Extruder GM-50-FU Non-observance of the safety instructions may in 1 General particular involve the following risks: • failure of important extruder functions, These operating instructions must always be available at the place of use of the extruder. • hazards to persons due to electrical and... -
Page 5: Identification Of Information In The Operating Instructions
A detailed instruction into extruder operation will be provided by the Manufacturer/Supplier on request. Furthermore, the Operator has to make sure that the contents of the operating instructions is fully understood by the operating personnel. GM-50-FU Issue 12.2009/Rev. 01 Page 5/15... - Page 6 Extruder GM-50-FU • Extension cables must be certified for the specific • service conditions (e.g. outdoor service) and The extruder must not be used in identified accordingly. explosion hazard areas or flammable atmospheres. Always handle the connecting cable with care.
-
Page 7: Safety Instructions For Maintenance, Inspection And Mounting
- the unit does not work properly or there are unusual changes in its operating behaviour. • Never allow the extruder to come into contact with water: Hazard to persons and equipment, short-circuit risk. GM-50-FU Issue 12.2009/Rev. 01 Page 7/15... -
Page 8: Transport And Storage
4.2 General touch. These parts reach temperatures of up to 350 ° C during operation. Type GM-50-FU is a extruder with integrated air • supply (Autoair). • Always transport or store the extruder in such a... -
Page 9: Startup And Shutoff
The output rate is variable so that the preheat time can be matched to the weld thickness. • Mount hot air hood GM-50-FU Issue 12.2009/Rev. 01 Page 9/15... -
Page 10: Starting The Extruder
Extruder GM-50-FU • Mount welding shoe 5.3 Starting the extruder - Select the welding shoe required for the specific weld geometry or machine a welding shoe blank to the required geometry. Observe section “Safety“. - Observe DVS 2207 Guideline, Part 4 for machining welding shoe blanks. -
Page 11: Welding With The Extruder
Observe section “Safety“. • The granulate is fed to the extruder via a hopper provided on the machine. Do not leave the extruder unattended. • When interrupting the welding job, always switch off the drive. GM-50-FU Issue 12.2009/Rev. 01 Page 11/15... -
Page 12: Shutoff
Extruder GM-50-FU 5.4.5 Shutoff Temperature chart Material Melt temperature Air temperature Observe section “Safety”. 200 – 240 ° C 250 – 300 ° C 200 – 240 ° C 250 – 300 ° C • After completion of the welding job, switch off PVDF 240 –... -
Page 13: Maintenance/Inspection
Make sure to use original spare parts only. recommend: to have all maintenance, inspection and mounting For spare parts supply, contact MUNSCH Kunststoff- work carried out by authorized and qualified Schweißtechnik GmbH. personnel who are familiar with the operating... - Page 14 Type designation: Serial No.: P.O. date: Your warranty MUNSCH Kunststoff-Schweißtechnik GmbH hereby warrants the unit to be free from defects in materials and workmanship from the date of its first acquisition. Should deficiencies resulting from defects in materials or workmanship be identified during the warranty period, the...
- Page 15 In such a case, the Purchaser shall not be entitled to any replacement. 5 Manufacturer’s warranty obligations shall not be affected by a change in ownership of the purchased article. MUNSCH Kunststoff-Schweißtechnik GmbH Im Staudchen • D-56235 Ransbach-Baumbach P.O. Box 142 • D-56221 Ransbach-Baumbach Germany Phone:...
