Firmensitz/Registered Office: Im Staudchen, D-56235 Ransbach-Baumbach
Registergericht/Registration Court: Amtsgericht Montabaur, HRB 3959
1/20

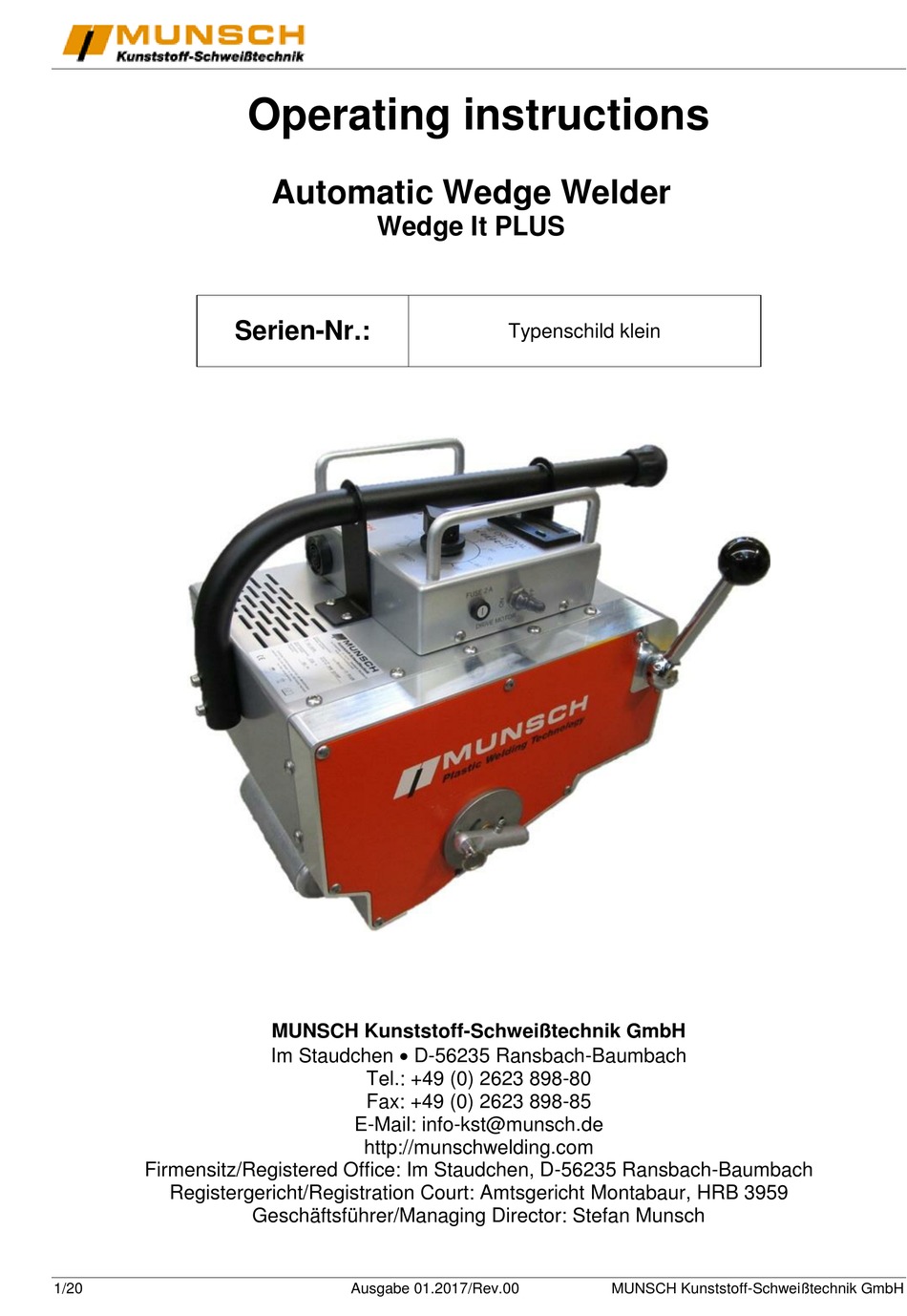

Operating instructions
Automatic Wedge Welder
Wedge It PLUS
Serien-Nr.:
MUNSCH Kunststoff-Schweißtechnik GmbH
Im Staudchen D-56235 Ransbach-Baumbach
Tel.: +49 (0) 2623 898-80
Fax: +49 (0) 2623 898-85
E-Mail: info-kst@munsch.de
http://munschwelding.com
Geschäftsführer/Managing Director: Stefan Munsch
Ausgabe 01.2017/Rev.00
Typenschild klein
MUNSCH Kunststoff-Schweißtechnik GmbH
Advertisement
Table of Contents
Related Manuals for Munsch Wedge It PLUS
Summary of Contents for Munsch Wedge It PLUS
- Page 1 Operating instructions Automatic Wedge Welder Wedge It PLUS Serien-Nr.: Typenschild klein MUNSCH Kunststoff-Schweißtechnik GmbH Im Staudchen D-56235 Ransbach-Baumbach Tel.: +49 (0) 2623 898-80 Fax: +49 (0) 2623 898-85 E-Mail: info-kst@munsch.de http://munschwelding.com Firmensitz/Registered Office: Im Staudchen, D-56235 Ransbach-Baumbach Registergericht/Registration Court: Amtsgericht Montabaur, HRB 3959 Geschäftsführer/Managing Director: Stefan Munsch...
- Page 2 Introduction Wedge It Plus, manufactured by MUNSCH Kunststoff-Schweißtechnik GmbH, is a self- propelled, heat/pressure fusion machine, used for the seaming of thermoplastic geomembranes and related materials. Although this unit was designed for use in the field, it can be used in-house as well.
-
Page 3: Table Of Contents
50/60 Capacity 2000 Temperature °C Max. 450, infinitely variable Max. travel speed m/min 6.5, infinitely variable Dimensions LxWxH 406x279x267 Weight 38.5 PE-HD (20-120),PP, Hypalon, Materials PVC (with stainless steel wedge), … Material thicknesses 0.5-2.5 3/20 Ausgabe 01.2017/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... -
Page 4: Safety
FI switch required for personal protection. Unit may only be operated under observation. Heat may propagate to flammable materials outside the range of vision. Protect the unit from moisture and direct rainfall! MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 01.2017/Rev.00 4/20... -
Page 5: Identification
Element Indicator Motor Lights Speed Control Fig.1 Key mechanical components and functions Nip Pressure Nip Pressure Cam Lever Upper Nip Roller Lower Nip Roller Retract Plunger Wedge Move- ment Handle Lock-in Plate Fig. 2 5/20 Ausgabe 01.2017/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... - Page 6 Wedge Up/Down Centering Adjustment Fig. 3 Drop Out Plate Lower Contour Lower Contour Roller Adjustment Roller Assy Cover Upper Contour Roller Adjustment Upper Contour Roller Assy Wedge Fig. 4 MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 01.2017/Rev.00 6/20...
-
Page 7: Set-Up Procedure
Adjust the lower contour rollers up, clockwise, until the wedge begins to move up slightly. Now insert the other 4” x 18” piece of material between upper contour assembly and wedge (figure 4). Adjust the upper contour rollers down, clockwise, to obtain the desired tolerance. 7/20 Ausgabe 01.2017/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... -
Page 8: Suggested Set-Up For Hdpe Material
NOTE: Distances #1, 2 & 3 should be the same for the HDPE set-up. For PVC set-up, distance #2 & 3 should be approximately ½ the distance of #1 and contour roller adjustments should be backed off completely or removed. MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 01.2017/Rev.00... -
Page 9: Basic Welding Operation
NOTE: Once the bottom sheet of material has been loaded, you may need to manually roll the welder forward and backward as you are loading the top sheet to prevent a “burn out” at the beginning of the weld. 9/20 Ausgabe 01.2017/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... -
Page 10: Executing A Weld
1. Disengage the welding pressure 2. Turn the motor switch off 3. Disengage the wedge REMEMBER: Always engage the wedge LAST when starting a weld and disengage the wedge LAST at the end of the weld. MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 01.2017/Rev.00 10/20... -
Page 11: Welding Parameters - Hdpe And Lldpe
As ambient conditions and other variables change (i.e. dirt, moisture, etc.), the welding parameters must be adjusted by the field technician or by the operator. MUNSCH Kunststoff-Schweißtechnik GmbH assumes no liability for weld quality or lack thereof, when using a Wedge-It Hot Wedge Welder. -
Page 12: Maintenance
More involved maintenance practices should be performed on a daily or weekly basis, depending on how much welding you are doing. Part 1 of this section will explain how to accomplish these tasks. MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 01.2017/Rev.00 12/20... -
Page 13: Lubricating Gears, Sprockets And Chains
Wipe with a clean rag, or preferably, blow dry with compressed air. Make sure all components are clear of dirt and sand, etc. Lightly lubricate all gears, sprockets and chains. NOTE: MUNSCH Kunststoff-Schweißtechnik GmbH recommends using spray on white lithium grease which is available at any hardware store or auto parts store. - Page 14 33. Nip arm 34. Nip arm spring 35. Upper material guide 36. Nip pivot shaft snap ring 37. Wedge mount set screw 38. Linear shaft 39. Wedge mount set screw 40. Linear shaft MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 01.2017/Rev.00 14/20...
-
Page 15: Removing And Reinstalling Hot Wedge Assembly
Also, make sure that there is enough slack in these wires to allow free fore and aft movement of the wedge. Split copper wedge makes changing the heaters simple. 15/20 Ausgabe 01.2017/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... -
Page 16: Re-Setting Timing Of Rack & Pinion Wedge Movement
Push 1 x: iCPt appears d. Set it to „2“ e. Keep pushed until the screen changes. In case of any questions, please call your sales office or dial MUNSCH at: +49 2623-898-80 MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 01.2017/Rev.00 16/20... -
Page 17: General Information
E16 – Main Line Fuses (20A, 2 pieces) E30 – Speed Readout Voltage Selection Switch (Motor power switch) NOTE: To access key electronic components shown above, the top handle, handle brackets and lid screws have to be removed. 17/20 Ausgabe 01.2017/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... -
Page 18: Main Spare Part List
Main spare part list Description Munsch ordering code Temperature controller K02187 Heating cartidge 800W K02878 Heating cartridge 1000W K06893 Heating cartridge 5/8“ 1000W K07011 Thermocouple K02879 Solid State relais K06462 Hot wedge K06355 Motor control board K06549 Plug in horse power resistor... -
Page 19: Changing Operating Voltage Of Wedge-It
Check both nip roller set screws for tightness Check drive chains & sprockets. NOTE: Parts list is not included to this instruction manual. If you need item numbers, prices and delivery times, please contact your distributor. 19/20 Ausgabe 01.2017/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... -
Page 20: Ec-Declaration Of Conformity By The Manufacturer
EG-Konformitätserklärung des Herstellers nach der EG-Maschinenrichtlinie 2006/42/EG Anhang II, Nr. 1 A EC-Declaration of Conformity by the Manufacturer as defined by machinery directive 2006/42/EC, Annex II, No. 1 A MUNSCH Kunststoff-Schweißtechnik GmbH Im Staudchen D-56235 Ransbach-Baumbach Germany Mr. Johann Dausenau, Kunststoffschweißtechnik GmbH,...
