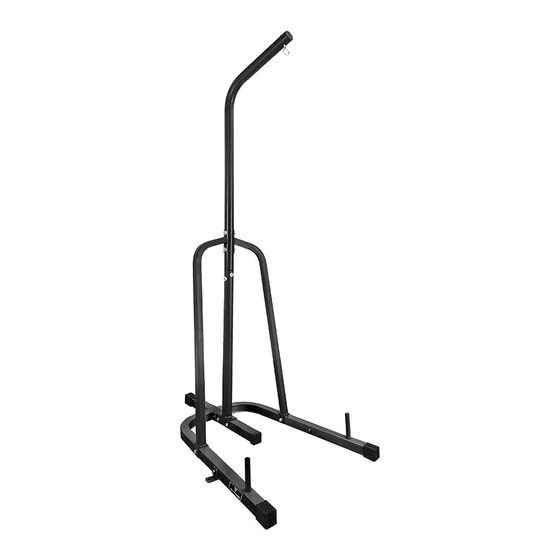

Hit boxing punch bag holder
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

HIT00591

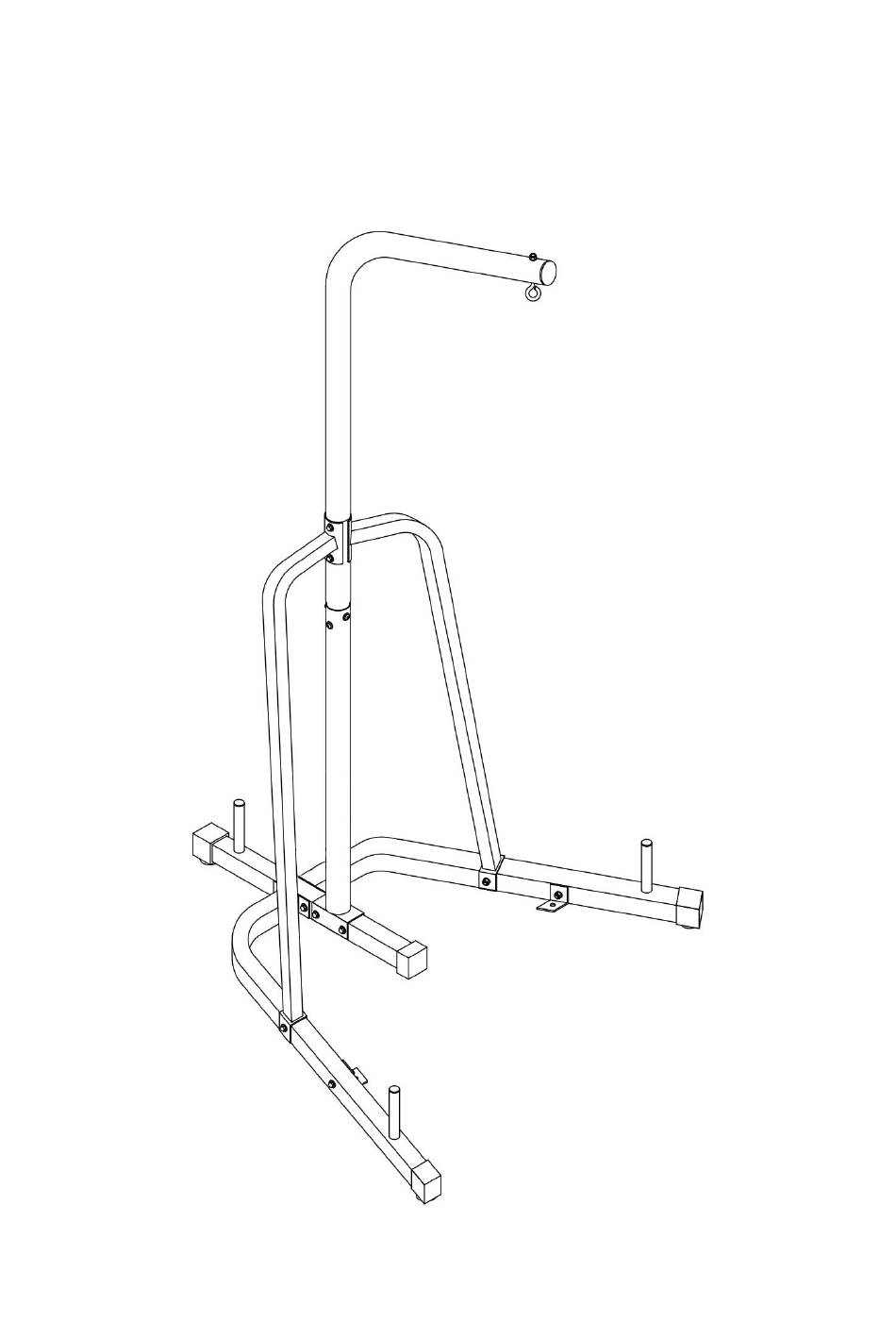

HIT BOXING PUNCH BAG HOLDER
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIT00591 and is the answer not in the manual?

Questions and answers

Related Manuals for HIT FITNESS HIT00591

Summary of Contents for HIT FITNESS HIT00591

  • Page 1 HIT00591 HIT BOXING PUNCH BAG HOLDER OWNER’S MANUAL...
  • Page 2 PART LIST Q’TY PART NO: DESCRIPTION BASE CONNECT TUBE LEFT BASE RIGHT BASE VERTICAL BEAM TOP CROSS BEAM LEFT BRACE FRAME RIGHT BRACE FRAME STORAGE POST STEEL PLATE RUBBER END CAP RUBBER CAP 60MM ROUND END CAP 25MM ROUND END CAP HOOK M10*80MM HEX BOLT M10*70MM HEX BOLT...
  • Page 3 STEP 1 1. ATTACH STORAGE POST (8) INTO THE HOLES ON THE BASE (1,2,3), SECURED WITH BOLT (17), AND WASHER (20)AS SHOWN. 2. PLACE RUBBER END CAP (10) AND RUBBER CAP (11) ONTO THE BASE (1,2,3). ATTACH LEFT BASE (2) AND RIGHT BASE (3) ONTO BASE CONNECT TUBE (1), SECURED WITH BOLT (16), WASHER (20), AND NYLON NUT (18).
  • Page 4 STEP 2 1. ATTACH VERTICAL BEAM (4) ONTO THE BASE CONNECT TUBE (1), SECURED WITH BOLT (16), WASHER (20), AND NYLON NUT (18), AS SHOWN. 2. INSERT TOP CROSS BEAM (5) INTO VERTICAL BEAM (4), SECURED WITH BOLT (17) AND ARC WASHER (19), AS SHOWN. 3.
  • Page 5 STEP 3 1. ATTACH LEFT BRACE FRAME (6) AND RIGHT BRACE FRAME (7) ONTO VERTICAL BEAM (4), SECURED WITH BOLT (15), ARC WASHER (19), AND NYLON NUT (18), AS SHOWN. 2. INSERT THE OTHER END OF LEFT BRACE FRAME (6) AND RIGHT BRACE FRAME (7) ONTO THE LEFT BASE (2) AND RIGHT BASE (3), SECURED WITH BOLT (16), WASHER (20), AND NYLON NUT (18), AS SHOWN.
