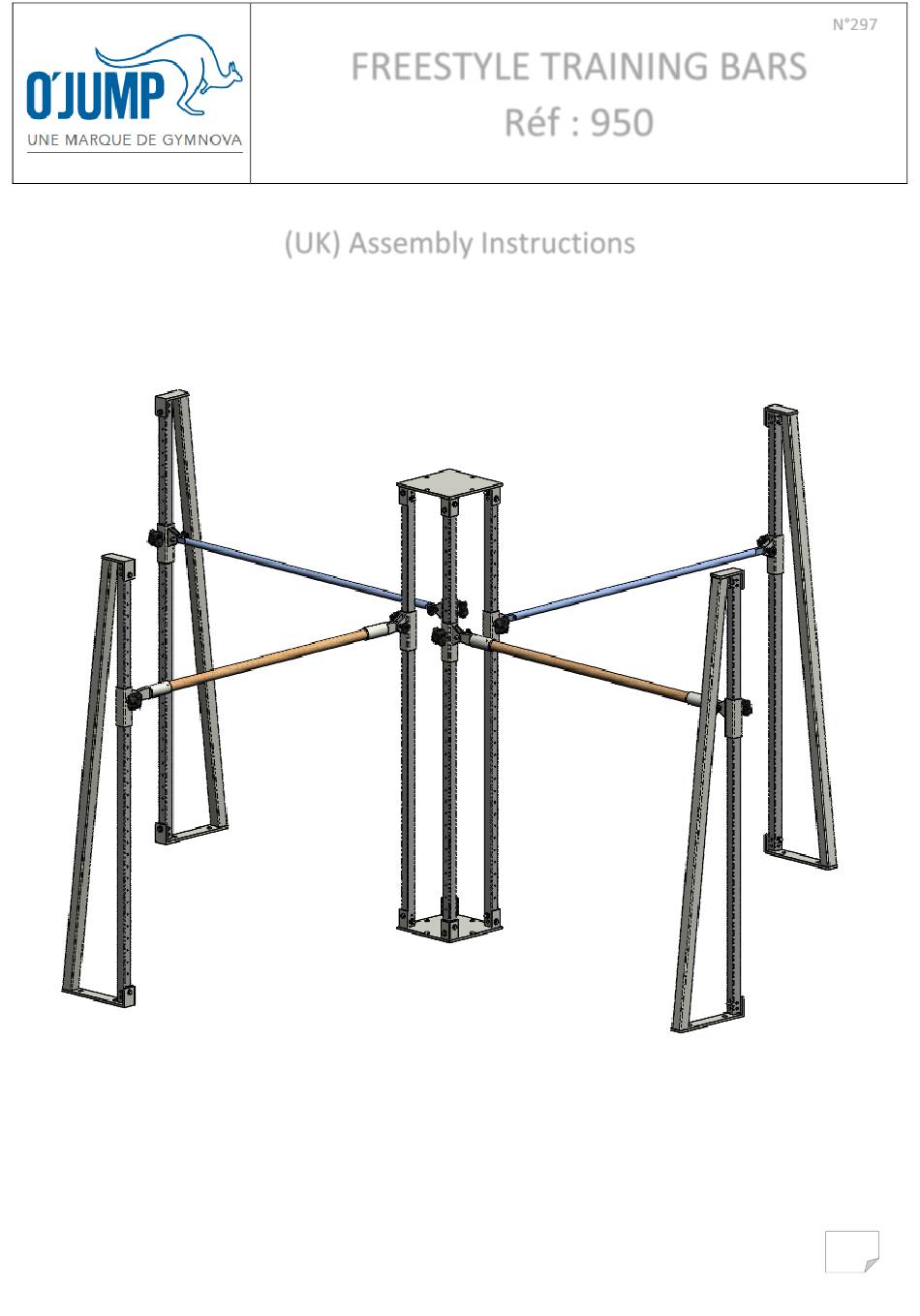

- Page 1 N°297 FREESTYLE TRAINING BARS Réf : 950 (UK) Assembly Instructions 01/09/2020...
- Page 2 Thank you for buying this product O'jump. We advise you to read the assembly instructions carefully. The apparatus is presented in pre-assembled parts for a simplified assembly. We have designed this O'jump product to bring you complete satisfaction. If you need help, the O'jump team is at your disposal to accompany you.
- Page 3 Tools needed to assemble the apparatus Hex wrench N°18/19 Hardware listing (pre-assembled) Index finger indexing handle M10 x 60 Ø22x10.5 01/09/2020...
- Page 4 List of parts (pre-assembled) Ø28 steel hand rail Central post (1 package) Side post (4 packages) Ø40 wooden hand-rail (2 packages) (2 packages) 01/09/2020...
- Page 5 Assembling the hand rail To insert the pin, press the blue button to release the ball. 01/09/2020...
- Page 6 Hand rail height adjustment Unscrew the knobs. Pull on the indexing knobs to release the slide. Slide it down or up. Release the knob in front of the desired position. Lock the two knobs by tightening. (See photo page 7) Repeat for all four posts.
- Page 7 01/09/2020...
- Page 8 Fixing the freestyle training bar to the ground Material required : A bubble level A drill anchors adapted to Screws adapted to Wrench adapted to Pencil your soil your soil your type of screws Check with the O’JUMP service specifying the nature of your soil. The type of plugs and screws varies depending on whether your floor is concrete, parquet, taraflex...
- Page 9 2. Using a pencil, trace the location of the 6 holes. Cutaway top view 1861 Position the side post and ensure the correct alignment of the hand-rail using the above ribs. 01/09/2020...
- Page 10 3. Drill all the holes using a drill bit suitable for your floor. Place the dowels in the holes. They should not protrude from the ground. 4. Position the uprights opposite the holes, then secure the uprights with suitable screws. 01/09/2020...
