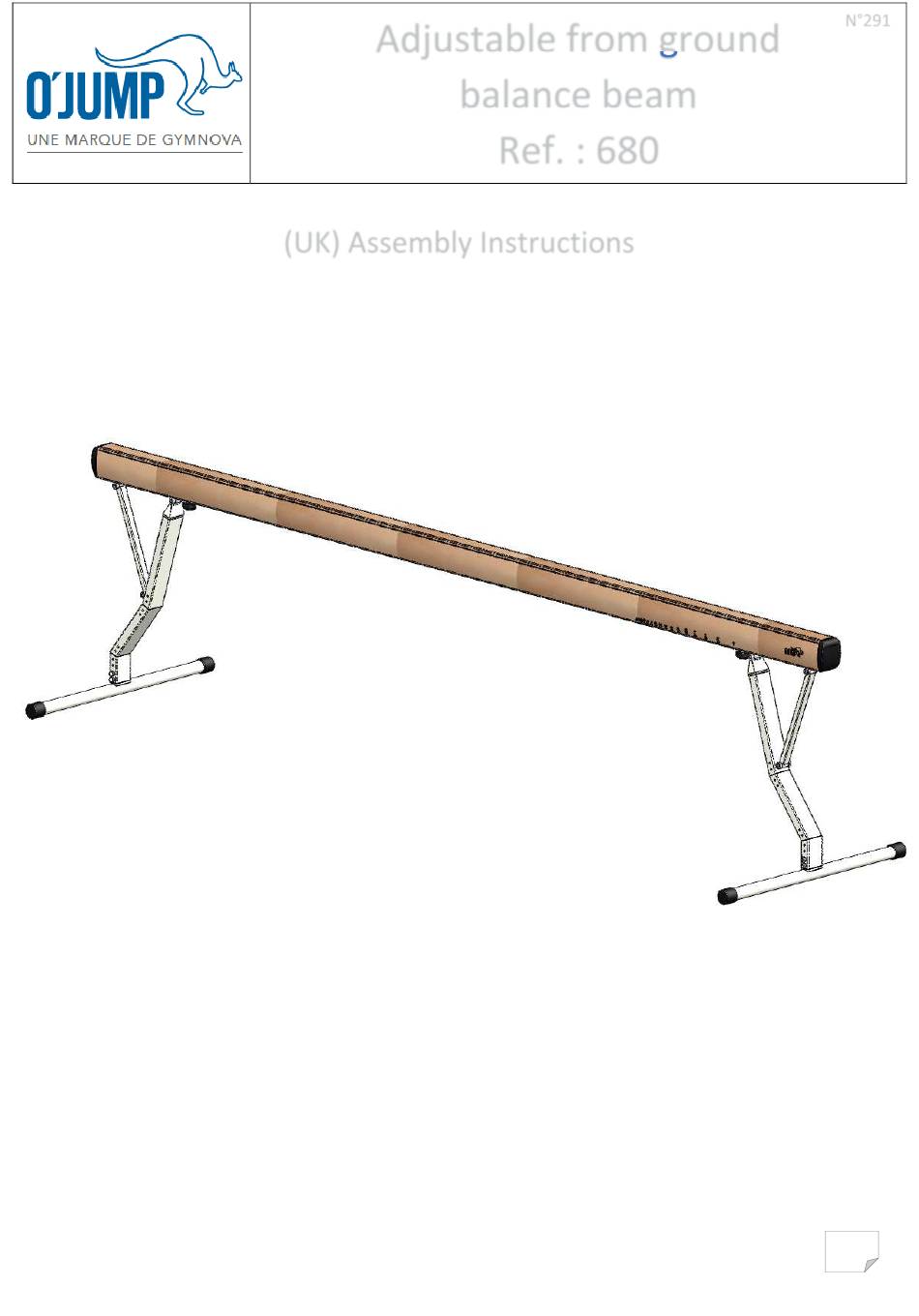

- Page 1 N°291 Adjustable from ground balance beam Ref. : 680 (UK) Assembly Instructions 18/01/2021...
- Page 2 Thank you for buying this product O'jump. We advise you to read the assembly instructions carefully. The apparatus is presented in pre-assembled parts for a simplified assembly. We have designed this O'jump product to bring you complete satisfaction. If you need help, the O'jump team is at your disposal to accompany you.
- Page 3 Tools needed to assemble the apparatus. Hex wrench N°18/19 Allen wrench N°10, 8, 5 Hardware listing (pre-assembled) M10 x 45 M5 x 16 End cap M12 Circlips M12 x 120 Ø24x13 Indexing knob Inner clamping plate Beam end caps 18/01/2021...
- Page 4 List of parts (pre-assembled) Feet Legs 1 Feet + 1 Leg (2 packages) 1 Beam body (1 package) 18/01/2021...
- Page 5 Assembling Legs 1) Remove the end caps. Place the beam body upside down on the floor and put in place the leg. 18/01/2021...
- Page 6 Allen wrench N°8 Inserting the indexing knob into the beam body Unscrew and pull the indexing knob while sliding the leg. Put in place the knob in front the F Position then release to insert the indexing pin. 18/01/2021...
- Page 7 Allen wrench N°8 Inserting of the inner clamping plate in the beam body Until the first hole. 18/01/2021...
- Page 8 Allen wrench N°10 Hex wrench N°18/19 Assembling feet. 18/01/2021...
- Page 9 Turn the beam over and then replace the beam end caps. 18/01/2021...
-
Page 10: Height Adjustment
Height adjustment Unscrew and pull the knob to release the indexing pin. Slide the foot sideways. Release the knob in front of the desired position. Lock the knob by tightening. Repeat for the other foot. Warning: Safety is always the main consideration when setting up an apparatus. •...
