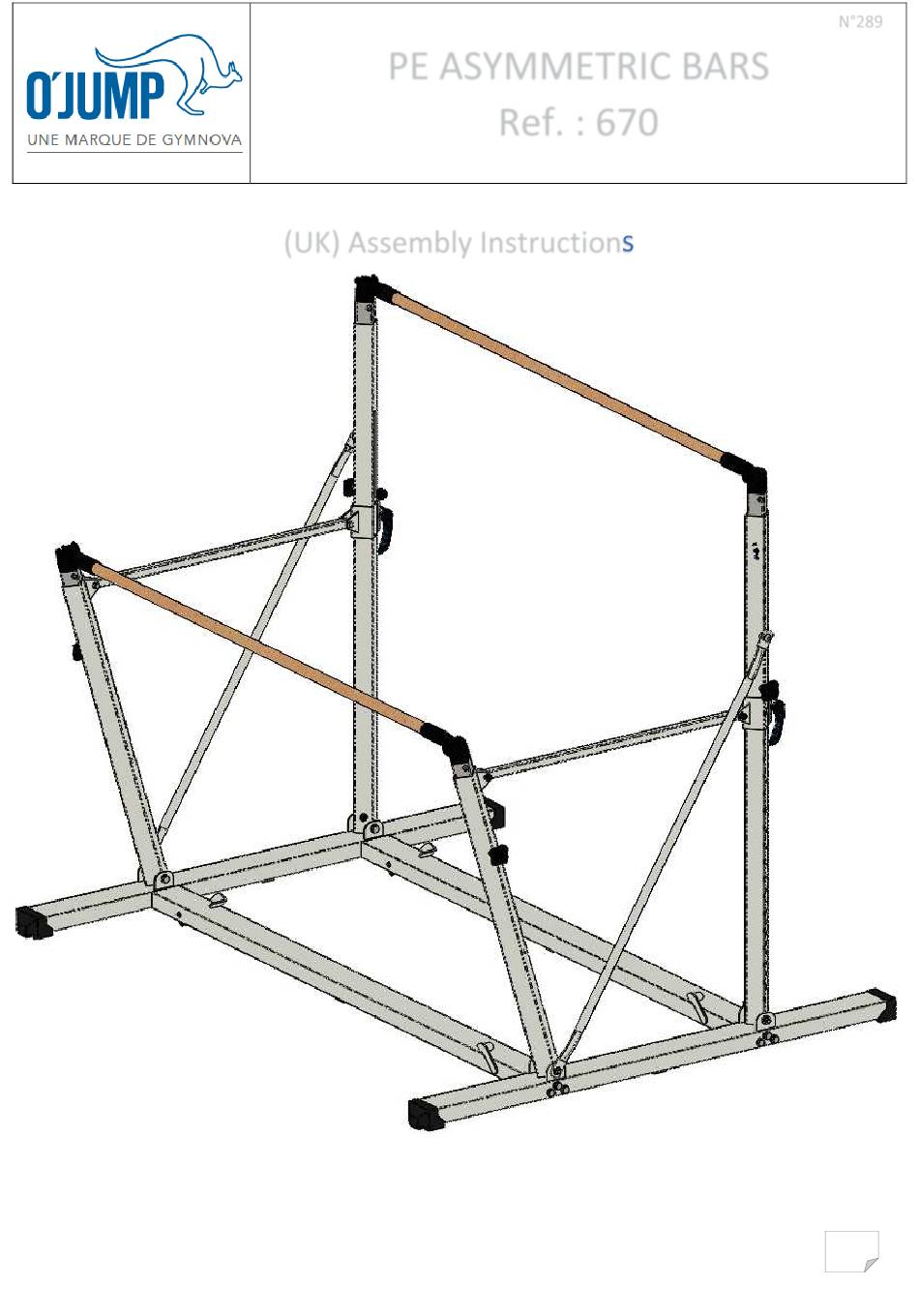

- Page 1 N°289 PE ASYMMETRIC BARS Ref. : 670 (UK) Assembly Instructions 18/01/2021...
- Page 2 Thank you for buying this product O'jump. We advise you to read the assembly instructions carefully. The apparatus is presented in pre-assembled parts for a simplified assembly. We have designed this O'jump product to bring you complete satisfaction. If you need help, the O'jump team is at your disposal to accompany you.
- Page 3 Tools needed to assemble the apparatus. Hex wrench Allen wrench N°10, N°18/19/24 Hardware listing (pre-assembled) M16x130 M16x150 Ø30xØ17 M12x60 Ø24xØ13 Indexing pin Indexing knob Elephant handle Sliding handle 18/01/2021...
- Page 4 List of parts (pre-assembled) 2 Chassis feet (2 packages) 2 Chassis stands (2 packages) 1 Upper upright L&R (2 packages) 1 Pair Lower uprights (1 package) 1 Pair of Braces + 1 Pair of Spreader (1 package) 2 Wooden hand-rails Ø40 (2 packages) 18/01/2021...
- Page 5 Hex wrench N° 24 Chassis base 18/01/2021...
- Page 6 Hex wrench N° 24 Lower upright & Brace 18/01/2021...
- Page 7 Hex wrench N° 24 Upper upright & Brace 18/01/2021...
- Page 8 wrench Allen N°10, Upper upright & Brace 18/01/2021...
- Page 9 Hex wrench N° 18/19 Spreader 18/01/2021...
- Page 10 Repeat the operations on pages 6,7,8,9 for the opposite side 18/01/2021...
- Page 11 Hand-rails To insert the indexing pin, press the blue button to release the ball. 18/01/2021...
-
Page 12: Height Adjustment
Height adjustment Unscrew and pull the knob to release the slide. Slide up using the handle. Release the knob in front of the desired position. Lock the knob by tightening. Repeat the operation for the other upright. Sliding handle Indexing knob Warning: Safety is always the main consideration when setting up an apparatus. - Page 13 Spacing adjustment Lift the elephant handle up to release the spreader. Slide up or down using the handle. Put the window in front of the desired position. Pull down the elephant handle. Repeat the operation for the other spreader. Window 18/01/2021...
- Page 14 Moving the apparatus Closed position Warning: Open position Safety is always the primary consideration when moving an apparatus. • It is important to always have a good understanding of the task. • Use common sense. . Always keep your feet out of reach of the apparatus .
