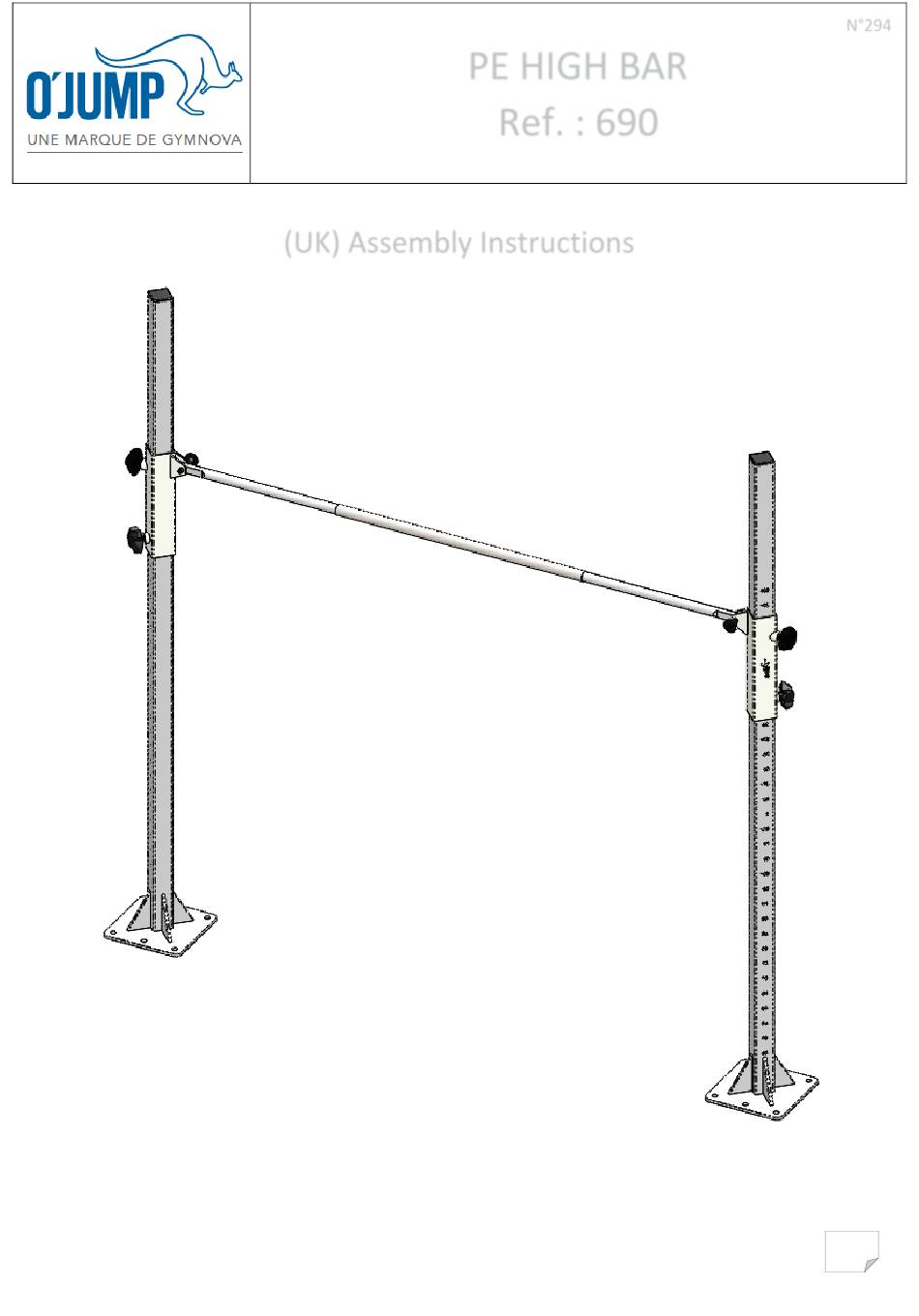

- Page 1 N°294 PE HIGH BAR Ref. : 690 (UK) Assembly Instructions 18/01/2021...
- Page 2 Thank you for buying this product O'jump. We advise you to read the assembly instructions carefully. The apparatus is presented in pre-assembled parts for a simplified assembly. We have designed this O'jump product to bring you complete satisfaction. If you need help, the O'jump team is at your disposal to accompany you.
- Page 3 Tools needed to assemble the apparatus Hardware listing (pre-assembled) indexing knob Indexing pin Tightening knob 18/01/2021...
- Page 4 List of parts (pre-assembled) High bar uprights (2 packages) Steel hand-rail + Steel tube (1 package) 18/01/2021...
- Page 5 To insert the indexing pin, press the blue button to release the ball. 18/01/2021...
-
Page 6: Height Adjustment
Height adjustment Unscrew the tightening and indexing knobs. Pull the indexing knob to release the slide. Slide it down or up. Release the indexing knob in front of the desired position. Lock the two knobs by tightening. Warning: Safety is always the main consideration when setting up an apparatus. •... - Page 7 Fixing the high bar to the ground Material required : A bubble level A drill anchors adapted to Screws adapted to Wrench adapted to Pencil your support your support your type of screws Check with the O’JUMP service specifying the nature of your support. The type of anchors and screws depending on whether your floor is concrete, wooden floor, flexible ground...
- Page 8 With a pencil, trace the location of the 4 holes for each plate. (Do not use the middle holes) Drill all the holes using a drill bit appropriate for your floor. Place the fixations in the holes. They should not be higher than the ground. 18/01/2021...
- Page 9 Put in place the uprights in front of the 4 holes, then fix the uprights with appropriate screws. 18/01/2021...
