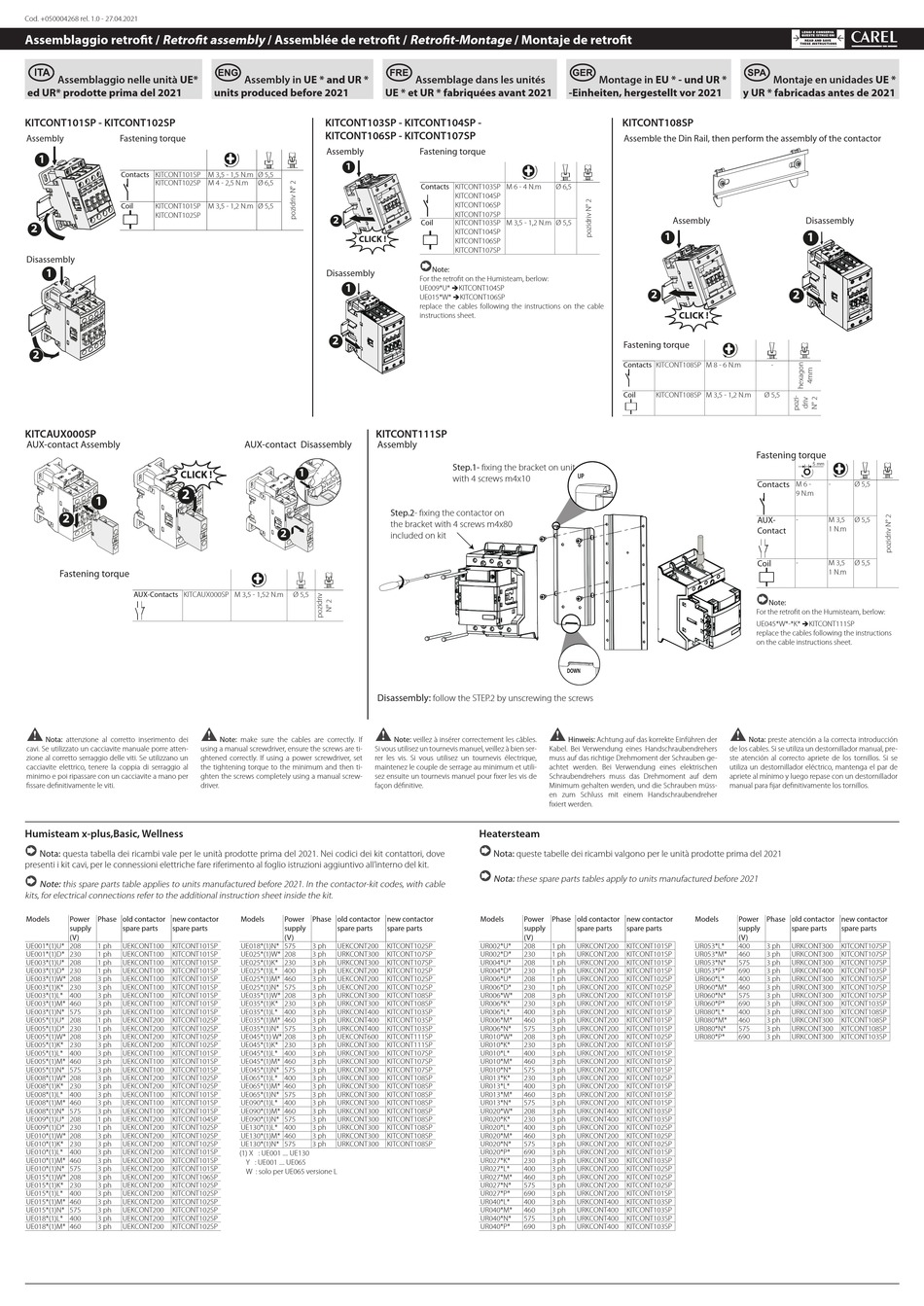

Carel KITCONT101SP Assembly

Cod. +050004268 rel. 1.0 - 27.04.2021
Assemblaggio retrofit / Retrofit assembly / Assemblée de retrofit / Retrofit-Montage / Montaje de retrofit
Assemblaggio nelle unità UE*
ed UR* prodotte prima del 2021
KITCONT101SP - KITCONT102SP
Assembly

Fastening torque

1
Contacts KITCONT101SP M 3,5 - 1,5 N.m Ø 5,5
KITCONT102SP M 4 - 2,5 N.m
Coil KITCONT101SP
KITCONT102SP
2

Disassembly

1
2
KITCAUX000SP

AUX-contact Assembly

CLICK !
2
1
2
Fastening torque
AUX-Contacts KITCAUX000SP M 3,5 - 1,52 N.m
Nota: attenzione al corretto inserimento dei
cavi. Se utilizzato un cacciavite manuale porre atten-
zione al corretto serraggio delle viti. Se utilizzano un
cacciavite elettrico, tenere la coppia di serraggio al
minimo e poi ripassare con un cacciavite a mano per
fissare definitivamente le viti.
Humisteam x-plus,Basic, Wellness
Nota: questa tabella dei ricambi vale per le unità prodotte prima del 2021. Nei codici dei kit contattori, dove
presenti i kit cavi, per le connessioni elettriche fare riferimento al foglio istruzioni aggiuntivo all'interno del kit.
Note: this spare parts table applies to units manufactured before 2021. In the contactor-kit codes, with cable
kits, for electrical connections refer to the additional instruction sheet inside the kit.

Models

Power Phase old contactor new contactor
supply spare parts spare parts
(V)
UE001*(1)U* 208 1 ph UEKCONT100 KITCONT101SP
UE001*(1)D* 230 1 ph UEKCONT100 KITCONT101SP
UE003*(1)U* 208 1 ph UEKCONT100 KITCONT101SP
UE003*(1)D* 230 1 ph UEKCONT100 KITCONT101SP
UE003*(1)W* 208 3 ph UEKCONT100 KITCONT101SP
UE003*(1)K* 230 3 ph UEKCONT100 KITCONT101SP
UE003*(1)L* 400 3 ph UEKCONT100 KITCONT101SP
UE003*(1)M* 460 3 ph UEKCONT100 KITCONT101SP
UE003*(1)N* 575 3 ph UEKCONT100 KITCONT101SP
UE005*(1)U* 208 1 ph UEKCONT200 KITCONT102SP
UE005*(1)D* 230 1 ph UEKCONT200 KITCONT102SP
UE005*(1)W* 208 3 ph UEKCONT200 KITCONT102SP
UE005*(1)K* 230 3 ph UEKCONT200 KITCONT102SP
UE005*(1)L* 400 3 ph UEKCONT100 KITCONT101SP
UE005*(1)M* 460 3 ph UEKCONT100 KITCONT101SP
UE005*(1)N* 575 3 ph UEKCONT100 KITCONT101SP
UE008*(1)W* 208 3 ph UEKCONT200 KITCONT102SP
UE008*(1)K* 230 3 ph UEKCONT200 KITCONT102SP
UE008*(1)L* 400 3 ph UEKCONT100 KITCONT101SP
UE008*(1)M* 460 3 ph UEKCONT100 KITCONT101SP
UE008*(1)N* 575 3 ph UEKCONT100 KITCONT101SP
UE009*(1)U* 208 1 ph UEKCONT200 KITCONT104SP
UE009*(1)D* 230 1 ph UEKCONT200 KITCONT102SP
UE010*(1)W* 208 3 ph UEKCONT200 KITCONT102SP
UE010*(1)K* 230 3 ph UEKCONT200 KITCONT102SP
UE010*(1)L* 400 3 ph UEKCONT200 KITCONT101SP
UE010*(1)M* 460 3 ph UEKCONT200 KITCONT101SP
UE010*(1)N* 575 3 ph UEKCONT200 KITCONT101SP
UE015*(1)W* 208 3 ph UEKCONT200 KITCONT106SP
UE015*(1)K* 230 3 ph UEKCONT200 KITCONT102SP
UE015*(1)L* 400 3 ph UEKCONT200 KITCONT102SP
UE015*(1)M* 460 3 ph UEKCONT200 KITCONT102SP
UE015*(1)N* 575 3 ph UEKCONT200 KITCONT102SP
UE018*(1)L* 400 3 ph UEKCONT200 KITCONT102SP
UE018*(1)M* 460 3 ph UEKCONT200 KITCONT102SP
Assembly in UE * and UR *
units produced before 2021
KITCONT103SP - KITCONT104SP -
KITCONT106SP - KITCONT107SP
Assembly
1
Ø 6,5
M 3,5 - 1,2 N.m Ø 5,5
2
CLICK !
Disassembly
1
2

AUX-contact Disassembly

1
2
Ø 5,5
Note: make sure the cables are correctly. If
using a manual screwdriver, ensure the screws are ti- Si vous utilisez un tournevis manuel, veillez à bien ser-
ghtened correctly. If using a power screwdriver, set rer les vis. Si vous utilisez un tournevis électrique,
the tightening torque to the minimum and then ti- maintenez le couple de serrage au minimum et utili-
ghten the screws completely using a manual screw- sez ensuite un tournevis manuel pour fixer les vis de
driver. façon définitive.
Models Power Phase old contactor
supply spare parts
(V)
UE018*(1)N* 575 3 ph UEKCONT200
UE025*(1)W* 208 3 ph URKCONT300
UE025*(1)K* 230 3 ph URKCONT300
UE025*(1)L* 400 3 ph UEKCONT200
UE025*(1)M* 460 3 ph UEKCONT200
UE025*(1)N* 575 3 ph UEKCONT200
UE035*(1)W* 208 3 ph URKCONT300
UE035*(1)K* 230 3 ph URKCONT300
UE035*(1)L* 400 3 ph URKCONT400
UE035*(1)M* 460 3 ph URKCONT400
UE035*(1)N* 575 3 ph URKCONT400
UE045*(1) W* 208 3 ph UEKCONT600
UE045*(1)K* 230 3 ph URKCONT300
UE045*(1)L* 400 3 ph URKCONT300
UE045*(1)M* 460 3 ph URKCONT300
UE045*(1)N* 575 3 ph URKCONT300
UE065*(1)L* 400 3 ph URKCONT300
UE065*(1)M* 460 3 ph URKCONT300
UE065*(1)N* 575 3 ph URKCONT300
UE090*(1)L* 400 3 ph URKCONT300
UE090*(1)M* 460 3 ph URKCONT300
UE090*(1)N* 575 3 ph URKCONT300
UE130*(1)L* 400 3 ph URKCONT300
UE130*(1)M* 460 3 ph URKCONT300
UE130*(1)N* 575 3 ph URKCONT300
(1) X : UE001 .... UE130
Y : UE001 .... UE065
W : solo per UE065 versione L
Assemblage dans les unités
UE * et UR * fabriquées avant 2021
Fastening torque
Contacts KITCONT103SP M 6 - 4 N.m
KITCONT104SP
KITCONT106SP
KITCONT107SP
Coil KITCONT103SP M 3,5 - 1,2 N.m Ø 5,5
KITCONT104SP
KITCONT106SP
KITCONT107SP
Note:
For the retrofit on the Humisteam, berlow:
UE009*U* KITCONT104SP

UE015*W* KITCONT106SP

replace the cables following the instructions on the cable
instructions sheet.
KITCONT111SP
Assembly
Step.1- fixing the bracket on unit
with 4 screws m4x10
Step.2- fixing the contactor on
the bracket with 4 screws m4x80
included on kit
Disassembly: follow the STEP.2 by unscrewing the screws
Note: veillez à insérer correctement les câbles.
Kabel. Bei Verwendung eines Handschraubendrehers
muss auf das richtige Drehmoment der Schrauben ge-
achtet werden. Bei Verwendung eines elektrischen
Schraubendrehers muss das Drehmoment auf dem
Minimum gehalten werden, und die Schrauben müss-
en zum Schluss mit einem Handschraubendreher
fixiert werden.
Heatersteam
Nota: queste tabelle dei ricambi valgono per le unità prodotte prima del 2021
Nota: these spare parts tables apply to units manufactured before 2021
new contactor Models Power
spare parts supply
(V)
KITCONT102SP UR002*U* 208
KITCONT107SP UR002*D* 230
KITCONT107SP UR004*U* 208
KITCONT102SP UR004*D* 230
KITCONT102SP UR006*U* 208
KITCONT102SP UR006*D* 230
KITCONT108SP UR006*W* 208
KITCONT108SP UR006*K* 230
KITCONT103SP UR006*L* 400
KITCONT103SP UR006*M* 460
KITCONT103SP UR006*N* 575
KITCONT111SP UR010*W* 208
KITCONT111SP UR010*K* 230
KITCONT107SP UR010*L* 400
KITCONT107SP UR010*M* 460
KITCONT107SP UR010*N* 575
KITCONT108SP UR013*K* 230
KITCONT108SP UR013*L* 400
KITCONT108SP UR013*M* 460
KITCONT108SP UR013*N* 575
KITCONT108SP UR020*W* 208
KITCONT108SP UR020*K* 230
KITCONT108SP UR020*L* 400
KITCONT108SP UR020*M* 460
KITCONT108SP UR020*N* 575
UR020*P* 690
UR027*K* 230
UR027*L* 400
UR027*M* 460
UR027*N* 575
UR027*P* 690
UR040*L* 400
UR040*M* 460
UR040*N* 575
UR040*P* 690
Montage in EU * - und UR *
-Einheiten, hergestellt vor 2021
KITCONT108SP
Assemble the Din Rail, then perform the assembly of the contactor
Ø 6,5
Assembly
1
2
CLICK !
Fastening torque
Contacts KITCONT108SP M 8 - 6 N.m
Coil KITCONT108SP M 3,5 - 1,2 N.m
UP
DOWN
Hinweis: Achtung auf das korrekte Einführen der
Phase old contactor new contactor Models
spare parts spare parts
1 ph URKCONT200 KITCONT101SP UR053*L*
1 ph URKCONT200 KITCONT101SP UR053*M*
1 ph URKCONT200 KITCONT101SP UR053*N*
1 ph URKCONT200 KITCONT101SP UR053*P*
1 ph URKCONT200 KITCONT102SP UR060*L*
1 ph URKCONT200 KITCONT102SP UR060*M*
3 ph URKCONT200 KITCONT101SP UR060*N*
3 ph URKCONT200 KITCONT101SP UR060*P*
3 ph URKCONT200 KITCONT101SP UR080*L*
3 ph URKCONT200 KITCONT101SP UR080*M*
3 ph URKCONT200 KITCONT101SP UR080*N*
3 ph URKCONT200 KITCONT102SP UR080*P*
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT200 KITCONT102SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT400 KITCONT103SP
3 ph URKCONT400 KITCONT103SP
3 ph URKCONT200 KITCONT102SP
3 ph URKCONT200 KITCONT102SP
3 ph URKCONT200 KITCONT102SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT300 KITCONT103SP
3 ph URKCONT200 KITCONT102SP
3 ph URKCONT200 KITCONT102SP
3 ph URKCONT200 KITCONT102SP
3 ph URKCONT200 KITCONT101SP
3 ph URKCONT400 KITCONT103SP
3 ph URKCONT400 KITCONT103SP
3 ph URKCONT400 KITCONT103SP
3 ph URKCONT400 KITCONT103SP
Montaje en unidades UE *
y UR * fabricadas antes de 2021
Disassembly
1
2
-
Ø 5,5
Fastening torque
5 mm
Contacts M 6 - - Ø 5,5
9 N.m
AUX- - M 3,5 Ø 5,5
1 N.m
Contact
Coil - M 3,5 Ø 5,5
1 N.m
Note:
For the retrofit on the Humisteam, berlow:
UE045*W*-*K* KITCONT111SP

replace the cables following the instructions
on the cable instructions sheet.
Nota: preste atención a la correcta introducción
de los cables. Si se utiliza un destornillador manual, pre-
ste atención al correcto apriete de los tornillos. Si se
utiliza un destornillador eléctrico, mantenga el par de
apriete al mínimo y luego repase con un destornillador
manual para fijar definitivamente los tornillos.
Power Phase old contactor new contactor
supply spare parts spare parts
(V)
400 3 ph URKCONT300 KITCONT107SP
460 3 ph URKCONT300 KITCONT107SP
575 3 ph URKCONT300 KITCONT107SP
690 3 ph URKCONT400 KITCONT103SP
400 3 ph URKCONT300 KITCONT107SP
460 3 ph URKCONT300 KITCONT107SP
575 3 ph URKCONT300 KITCONT107SP
690 3 ph URKCONT300 KITCONT103SP
400 3 ph URKCONT300 KITCONT108SP
460 3 ph URKCONT300 KITCONT108SP
575 3 ph URKCONT300 KITCONT108SP
690 3 ph URKCONT300 KITCONT103SP
