ASSEMBLY INSTRUCTIONS

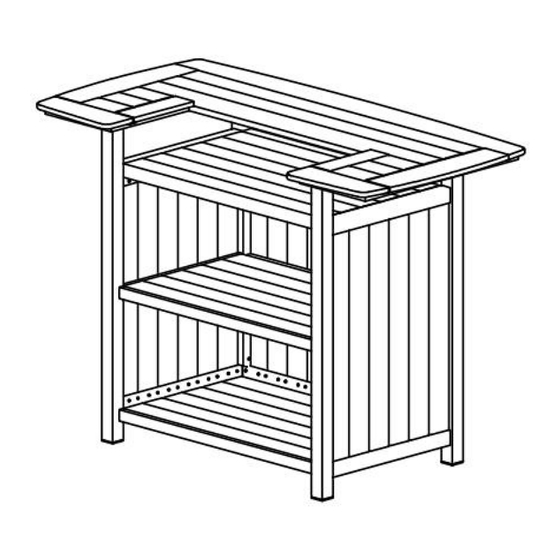

SHGP HDPE BAR TABLE
Manufactured for Rooms To Go
SKU 76414425 / 76414437 / 76414451 / 76414487
Thanks for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose
inside the carton during shipment. Identify and count all parts and compare with the Hardware List below
Caution: Loosely pre-assemble all the bolts first. Do not fully turn until all bolts are inserted into the proper holes.
Step 1: Place the Left Side Panel(Part A) on a clean, soft surface as a blanket or carpet. Assemble the Front Panel(Part B) to the Left
Side Panel by Bolt(M6*30)(Part F) and Washer (Part G&H), tighten with Allen Key (Part Z). Assemble the Shelf(Part D) to the Left Side
Panel by Bolt(M6*30)(Part F) and Washer (Part G&H), tighten with Allen Key (Part Z).
Step 2: Assemble the Right Side Panel(Part C) to the Base by Bolt(M6*30)(Part F) and Washer (Part G&H), tighten with Allen Key (Part
Z).

Advertisement

loading
Need help?

Need help?

Do you have a question about the PATIO 76414425 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ROOMS TO GO PATIO 76414425

  • Page 1 ASSEMBLY INSTRUCTIONS SHGP HDPE BAR TABLE Manufactured for Rooms To Go SKU 76414425 / 76414437 / 76414451 / 76414487 Thanks for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment.
  • Page 2 Step 3: Assemble the Table top(Part E) to the Table base by Bolt(M6*30)(Part F) and Washer (Part G&H), tighten with Allen Key (Part Z). Step 4: After tightening all bolts, your product is ready for use. PARTS LIST PARTS LIST NO.: DESC NO.:...

This manual is also suitable for:

Patio 76414437Patio 76414451Patio 76414487
