User Guide
Document Type: User Guide
Document Number: T0005978_UG
Document Version: 1.9
Product Name: Agriculture Sensor
Product Code:
T0005982 (Agriculture Sensor, Soil Surface Mount Module, NA)
T0005983 (Agriculture Sensor, Soil Surface Mount Module, EU)
T0005986 (Agriculture Sensor, Elevated Mount Module, NA)
T0005987 (Agriculture Sensor, Elevated Mount Module, EU)
Issue Date: April 5, 2021
PROPRIETARY:
The information contained in this document is the property of TEKTELIC Communications Inc. Except as specifically
authorized in writing by TEKTELIC, the holder of this document shall keep all information contained herein
confidential, and shall protect the same in whole or in part from disclosure to all third parties.
© 2019 TEKTELIC Communications Inc., all rights reserved.
All products, names, and services are trademarks and registered trademarks of their respective companies.
TEKTELIC Communications Inc.
th
7657 10
Street NE
Calgary, AB, Canada T2E 8X2
Phone: (403) 338-6900
GRICULTURE
S
ENSOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T0005982 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TEKTELIC Communications T0005982

  • Page 1 Issue Date: April 5, 2021 PROPRIETARY: The information contained in this document is the property of TEKTELIC Communications Inc. Except as specifically authorized in writing by TEKTELIC, the holder of this document shall keep all information contained herein confidential, and shall protect the same in whole or in part from disclosure to all third parties.
  • Page 2 Sensor December 16, 2020 Release Mark Oevering Corrections to Table 2 April 5, 2021 Release Mark Oevering Added ALS range to Table 2 LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 2 of 22...
  • Page 3: Table Of Contents

    Battery Replacement ......................18 Operation, Alarms, and Management ................... 19 Configuration ........................19 Default Configuration ..................... 19 LED Behaviour ........................ 19 Compliance Statements ......................21 LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 3 of 22...
  • Page 4 Table 2: Agriculture Sensor Specifications ..................10 Table 3: Default Configuration - Soil Surface Mount ..............19 Table 4: Default Configuration - Elevated Mount ................. 19 LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 4 of 22...
  • Page 5 Figure 6 Agriculture Sensor magnetic reset/wake-up pattern ............ 16 Figure 7 Agriculture Sensor magnetic UL-triggering pattern ............17 Figure 8 LED Location ........................20 LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 5 of 22...
  • Page 6: Product Description

    Once planted in the soil, it exchanges water with the surrounding soil thus staying in equilibrium with it. Soil water LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 6 of 22...

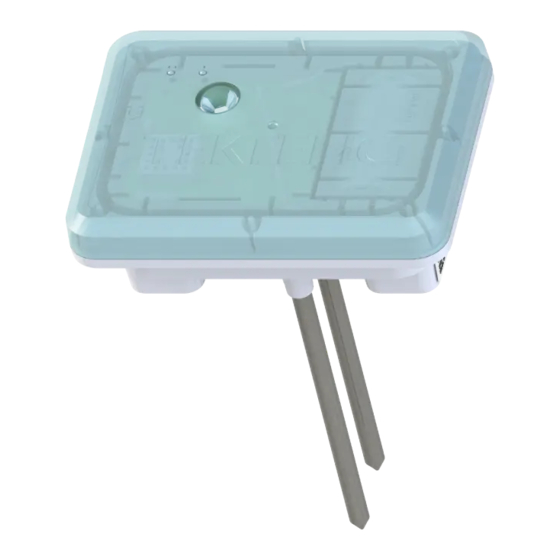

  • Page 7: Figure 1 Agriculture Sensor Soil Surface Mount Model

    Figure 1 illustrates the Agriculture Sensor Soil Surface Mount Model in the enclosure. a) Exterior view b) Inside view Figure 1 Agriculture Sensor Soil Surface Mount Model LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 7 of 22...
  • Page 8: Figure 2 Agriculture Sensor Elevated Mount Model

    Figure 2 illustrates the Agriculture Sensor Elevated Mount Model in the Enclosure. a) Exterior view b) Inside view Figure 2 Agriculture Sensor Elevated Mount Model LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 8 of 22...
  • Page 9: Physical Interfaces

    Elevated Pole Module. The wires can be installed into the terminal block pins either way. Figure 3 Agriculture Sensor Connector Block LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 9 of 22...
  • Page 10: Specifications

    MCU temperature, ambient temperature, ambient humidity, ambient light, accelerometer, battery level, water tension, soil moisture, soil temperature MCU Temperature < ±5°C between -40°C and 85°C Measurement Accuracy LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 10 of 22...
  • Page 11 *From the manufacturer datasheet. Applicable to Soil Surface Mount only Applicable to Soil Surface Mount only Applicable to Elevated Pole only Applicable to Elevated Pole only LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 11 of 22...
  • Page 12: Installation

    The following tools are required to install the Agriculture Sensor:  Torx T10 screwdriver (8 x enclosure screws)  Slotted screwdriver (internal terminal block connections)  Wire Stripper  Wire Cutter LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 12 of 22...
  • Page 13: Elevated Mount Sensor Mounting

    Next dress the internal wires so that the cable gland seals against the outer cable jacket. Finally, tighten the cable gland. LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 13 of 22...
  • Page 14 (labeled ‘-’) of the matching I/O channel. NOTE: Elevated Mount Sensor I/O are referenced to the sensor ground and are not isolated. LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 14 of 22...
  • Page 15: Power Up, Commissioning And Monitoring

    DEEP SLEEP is to apply the specified magnetic pattern or to open the enclosure and remove and reinsert the battery. LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 15 of 22...
  • Page 16: Figure 5 Reed Switch Location

    3 sec but (and activated if no longer than 10 sec in DEEP SLEEP) Figure 6 Agriculture Sensor magnetic reset/wake-up pattern LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 16 of 22...
  • Page 17: Commissioning

    To add your sensor to the Network Server, you will need to enter the DevEUI, AppEUI and AppKey that were provided for your device from Tektelic. LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 17 of 22...
  • Page 18: Battery Replacement

    Make sure that the gasket is properly seated in the cover before placing on the Agriculture Sensor housing. Tighten the 8 cover screws to 2.5 lbf-in (30 N-cm). LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 18 of 22...
  • Page 19: Operation, Alarms, And Management

    Ticks per Ambient Light 1 (15 min) 5.3 LED Behaviour The LED’s are located on the top of the Agricultural Sensor. See Figure 8. LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 19 of 22...
  • Page 20: Figure 8 Led Location

     The LoRa LED will blink whenever LoRa activity occurs on the sensor (transmitting or receiving packets)  The System LED can be controlled via the downlink command interface. LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 20 of 22...
  • Page 21: Compliance Statements

    L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 21 of 22...
  • Page 22 State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. LoRa Agriculture Sensor User Guide T0005978_UG Version # 1.9 TEKTELIC Communications Inc. Confidential Page 22 of 22...
