Summary of Contents for Meinberg IMS-LNO

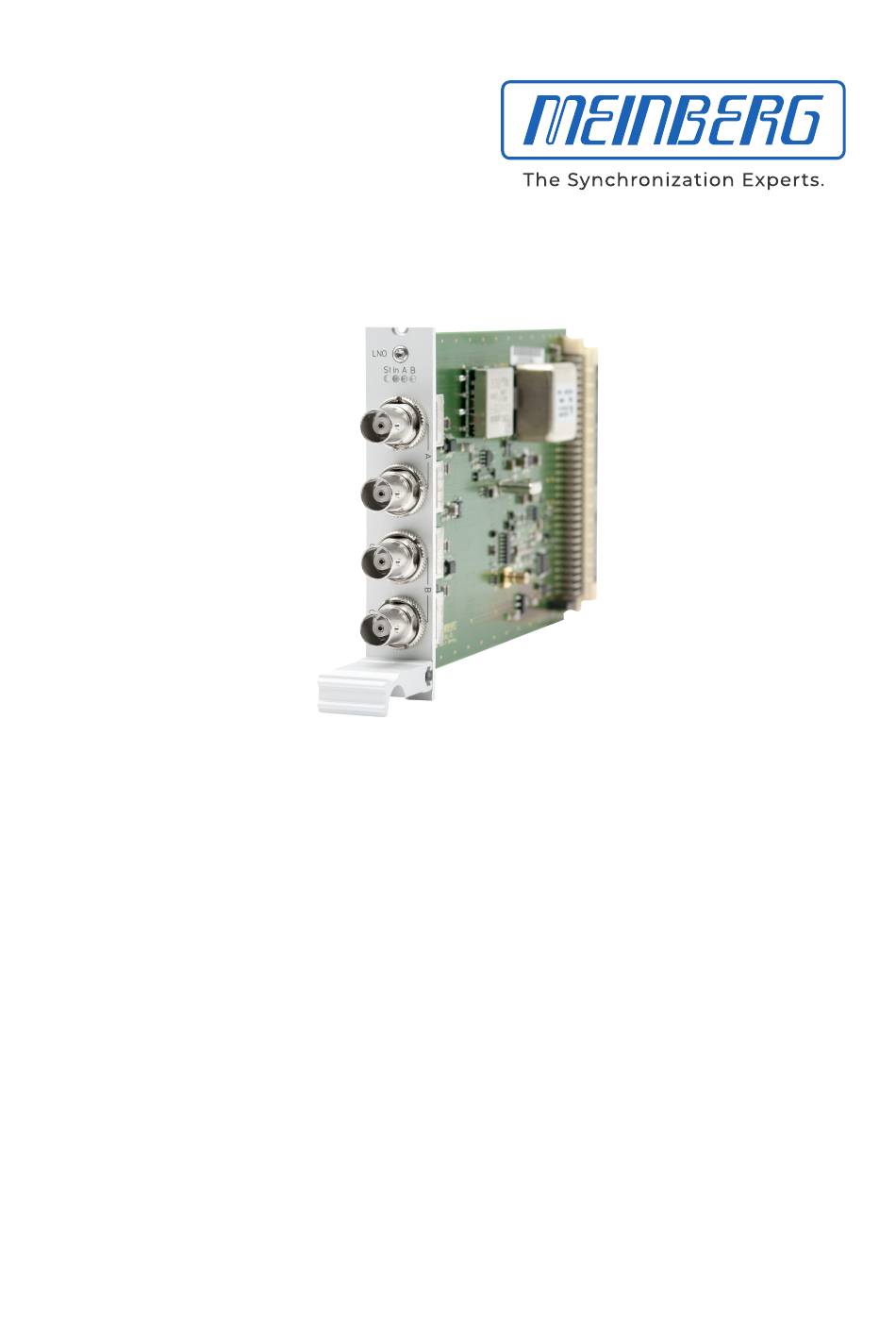

- Page 1 SETUP GUIDE IMS-LNO Hot-Plug Module October 24, 2022 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
IMS-LNO - Status LEDs ........ -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com Email: info@meinberg.de... -
Page 5: Introduction
Meinberg product. Download link: https://www.meinbergglobal.com/download/docs/manuals/english/ltos_7-00.pdf Compatibility The IMS-LNO is an IMS module which is compatible with all systems of the IMS family. It can also be used on any slot (MRI, ESI, I/O). Date: October 24, 2022... -
Page 6: Important Safety Information
• Take note of the chapter "Power Supply". 3.1 Product Documentation Detailed product documentation is provided on a USB flash drive delivered with the Meinberg system. The manuals can also be downloaded from the Meinberg website at https://www.meinbergglobal.com, where you can enter your system name into the search box at the top of the page to find the relevant manual. -
Page 7: Prevention Of Esd Damage
ESD-proof bags that are crumpled or have holes cannot provide effective protection against electrostatic discharges. ESD-proof bags must have a sufficient electrical resistance and must not be made of conductive metals if the device has a lithium battery fitted on it. Date: October 24, 2022 IMS-LNO... -
Page 8: Power Supply
In the event that a power supply unit is no longer working (e.g. defective), please return it to Meinberg for repair. Failure to observe these safety instructions may result in serious injury and/or property damage. -

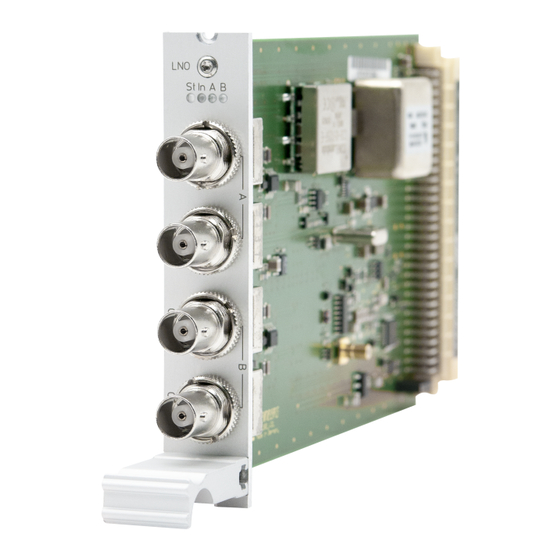

Page 9: Front Connectors Ims-Lno
4 Front Connectors IMS-LNO Date: October 24, 2022 IMS-LNO... -
Page 10: Ims-Lno - Status Leds
4 Front Connectors IMS-LNO 4.1 IMS-LNO - Status LEDs Status display LED St: Status of the IMS-LNO LED In: Status of the backplane output signals LED A: Status of the LNO output signals (A) LED B: Status of the LNO output signals (B) St In A B The status messages of the LED’s are as follows:... -
Page 11: 10 Mhz Sine Output
8 dBm +5 V @ 720 mA (steady state), +5 V @ 640 mA (warm up) 12 dBm:+5 V @ 970 mA (steady state), +5 V @ 620 mA (warm up) Connection type: BNC socket Cable: coaxial, shielded Date: October 24, 2022 IMS-LNO... - Page 12 4 Front Connectors IMS-LNO Method The internal 10 MHz reference signal is fed into a narrow band quartz filter. The generated signal will be provided to up to four outputs via a distribution amplifier circuit. 10 MHz Matching Quartz Filter...
-
Page 13: Before You Start
5.1 Contents of Delivery Unpack the IMS-LNO carefully and check the contents of the delivery against the enclosed packing list to ensure that no parts are missing. If any of the listed items are missing, please contact our sales department: sales@meinberg.de... -
Page 14: System Installation
Operating System, the configuration of some IMS modules may be reset to factory defaults! Information: The NTP service and access to the web interface will be unavailable while the CPU is not installed. Management and monitoring functions will also be disabled. IMS-LNO Date: October 24, 2022... -
Page 15: Installation And Removal Of Hot-Pluggable Ims Modules
If the removed module is not to be replaced with another module, the cover plate should be refitted using the two Torx screws. Locations of fixture screws in a 1RU IMS system Date: October 24, 2022 IMS-LNO... - Page 16 flush with that of the adjacent modules or cover plates. Insert and tighten the two Torx screws again. The installed module is now ready to set up for use. IMS-LNO Date: October 24, 2022...
-
Page 17: Status Monitoring Of The Ims-Lno
7 Status Monitoring of the IMS-LNO The status menu provides detailed status monitoring options for the IMS-LNO. To do so, select the menu I/O- Config –> Status in the web interface. All values monitored by the microprocessor of the IMS-LNO are displayed here in detail. -
Page 18: Rohs And Weee
WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation ex- penses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. IMS-LNO...
