- Page 1 MANUAL BPE-2000 Setup Guide 19th November 2019 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
......4 BPE-2000 - Backplane Port Expander Configuring an BPE expansion card via the Web Interface . - Page 4 1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com...
-
Page 5: Safety Instructions For Hot Pluggable Modules
• Place the module out of the box or after removal from the system with the component side to the top on a grounded and static-free surface. • Storage of an IMS module must be done in a dry place. • Installation or removal from hot-swap components only by authorized personnel! Date: 19th November 2019 BPE-2000... -
Page 6: Additional Safety Hints
To ensure safe operation supply mains connected to this decice must be equipped with a fuse and a fault- current circuit breaker according to the applicable national standards for safe operation. The device must be connected to a protective earth with low grounding resistance according to the applicable national rules. BPE-2000 Date: 19th November 2019... -
Page 7: Cabling
Wiring or any other work done the connectors particularly when connectors are opened may never be carried out when the installation is energized. All connectors must be covered to prevent from accidental contact to life parts. ALWAYS ENSURE A PROPER INSTALLATION! Date: 19th November 2019 BPE-2000... -
Page 8: Replacement Or Installation Of A Hot-Pluggable Ims Module
Non-observance can cause damage to the module and the chassis. Make sure that the module is securely locked into the connector block before you fasten the two screws. Now you can put the installed module into operation. Attachment points of an 1U IMS system BPE-2000 Date: 19th November 2019... -
Page 9: Important Hints For Hot-Pluggable Ims Modules
(Rescan Refclocks) must be executed in the web interface menu "System". not "hot swappable" The central management unit must be disconnected from mains before replacement. RSC/SPT not "hot swappable" The RSC switching card must be disconnected from the mains before the replacement. Date: 19th November 2019 BPE-2000... -
Page 10: Bpe-2000 - Backplane Port Expander

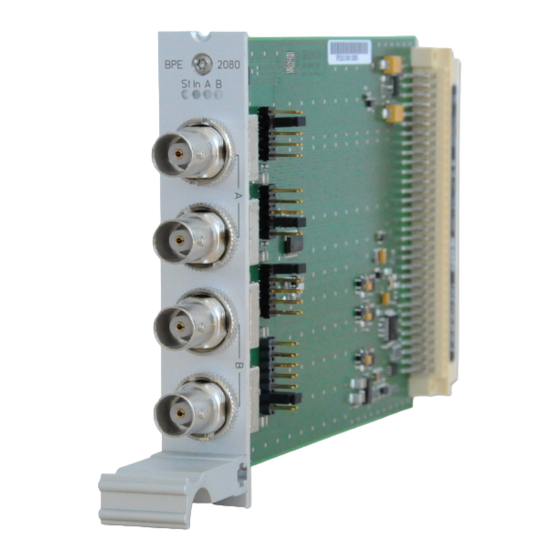

4 BPE-2000 - Backplane Port Expander 4 BPE-2000 - Backplane Port Expander Output Signals: fixed: PPS, 10MHz, TC-DCLS, TC-AM Power Requirements: 5 V +-5%, 150 mA / BNC 5 V +-5%, 150 mA / FO Status Indicators LED St: BPE status LED In: Status of the backplane’s output signals... -
Page 11: Configuring An Bpe Expansion Card Via The Web Interface
"Clock Receiver" in systems with only a single receiver. The BPE modules have no direct configuration options. This information is also displayed in the "IO Config" menu. Figure: menu "Clock Switch Card IRIG Settings" Date: 19th November 2019 BPE-2000...
