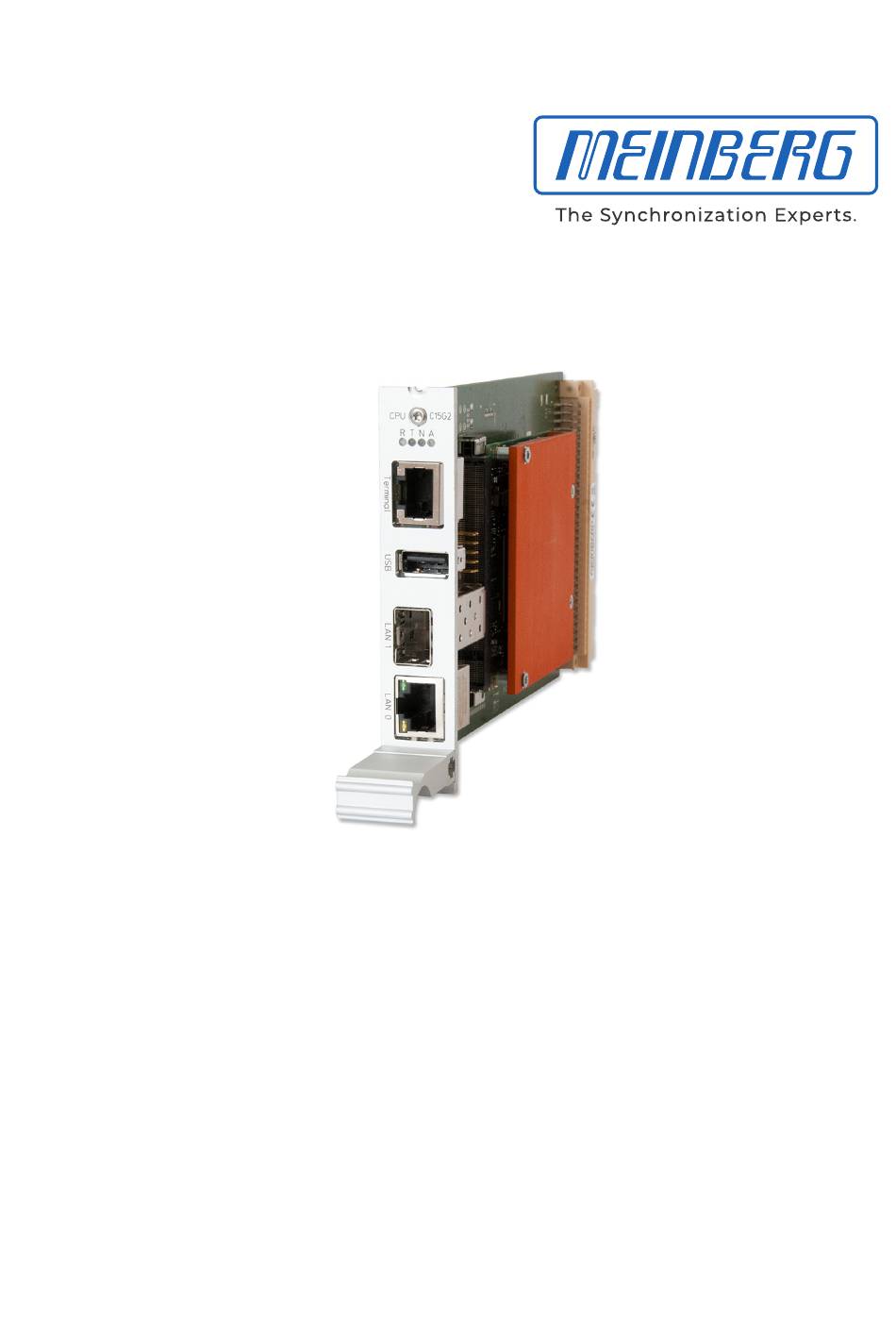

- Page 1 MANUAL IMS-CPU Setup Guide IMS CPU-C15G2 24th September 2019 Meinberg Funkuhren GmbH & Co. KG...
-
Page 4: Table Of Contents
Important Hints for hot-pluggable IMS Modules ......4 Technical Specifications - IMS CPU-C15G2 Main Menu . - Page 5 1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com...
-
Page 6: Safety Instructions For Hot Pluggable Modules
2 Safety Instructions for hot pluggable Modules Check before every maintenance work on the system: • If a data backup is required? • Is a backup required, verify the data recovery which is done by this backup. • Make sure to avoid any static discharge while working - use a grounding cable and/or antistatic gloves during installation and removal of hot pluggable components. -
Page 7: Additional Safety Hints
2 Safety Instructions for hot pluggable Modules 2.1 Additional Safety Hints This manual contains important information for the installation and operation of this device as well as for your safety. Make sure to read carefully before installing and commissioning the device. Certain operating conditions may require the observance of additional safety regulations not covered by this manual. -
Page 8: Cabling
2.3 Cabling WARNING! DANGER TO LIFE BY ELECTRICAL SHOCK! NO LIVE WORKING! Wiring or any other work done the connectors particularly when connectors are opened may never be carried out when the installation is energized. All connectors must be covered to prevent from accidental contact to life parts. ALWAYS ENSURE A PROPER INSTALLATION! Date: 24th September 2019 IMS-CPU Setup Guide... -
Page 9: Replacement Or Installation Of A Hot-Pluggable Ims Module
3 Replacement or Installation of a Hot-pluggable IMS Module 3 Replacement or Installation of a Hot-pluggable IMS Module Please use a Torx screwdriver (T8 x 60) for removal and installation. Follow the safety instructions at the beginning of this manual! Remove the two marked Torx screws from the module holder plate or the cover plate of the empty slot. -
Page 10: Important Hints For Hot-Pluggable Ims Modules
3.1 Important Hints for hot-pluggable IMS Modules The following points should be strictly observed when replacing IMS modules during operation. Not all IMS modules are fully hot-pluggable. Of course, it is not possible to replace a power supply unit of a non-redundant system without first having installed a second power source in operational mode. -

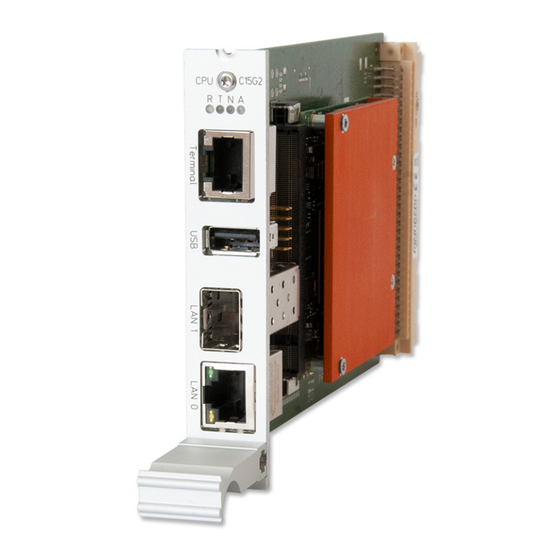

Page 11: Technical Specifications - Ims Cpu-C15G2
As the central management and control element, the CPU module in an LANTIME system is responsible for management, configuration and alarm notifications. It additionally provides NTP and SNTP services on its network interface. The CPU-C15G2 is equipped with two integrated network interfaces, additional network ports can be added by installing LNE modules. - Page 12 Supported Protocols: Network Time Protocol (NTP): NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905) SNTP v3 (RFC 1769), SNTP v4 (RFC 4330) OSI Layer 2 (Data Link Layer): PRP (IEC 62439-3) OSI Layer 3 (Network Layer): IPv4, IPv6 OSI Layer 4 (Transport Layer): TCP, UDP, TIME (RFC 868),...
-
Page 13: Main Menu
4 Technical Specifications - IMS CPU-C15G2 4.1 Main Menu The LANTIME webinterface provides you with configuration options and status information of your LANTIME system accesssed via Web GUI. The main page contatins an overview of the most important configuration and status parameters for the system.
