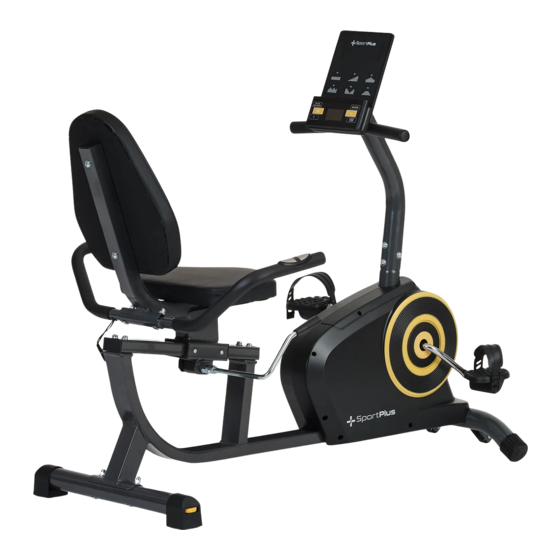

Sportplus SP-RB-9500-iE User Manual

Sportplus SP-RB-9500-iE User Manual

Recumbant bike
Hide thumbs Also See for SP-RB-9500-iE:
Table of Contents
  • Deutsch

    • Table of Contents
    • Technische Angaben
    • Sicherheitshinweise
    • Sitzschlitten Einstellen
    • Rangieren und Nivellierung
    • Bedienung des Computers
    • Wartung, Reinigung und Pflege
    • Entsorgungshinweise
    • Service und Ersatzteile
    • Gewährleistungen
    • Eu-Konformitätserklärung
    • Explosionszeichnung
    • Teileliste
  • Français

    • Indications Techniques
    • Consignes de Sécurité
    • Réglage des Rails du Siège
    • Rangement Et Niveau
    • Utilisation de L'ordinateur
    • Maintenance, Nettoyage Et Entretien
    • Consignes Pour la Mise Au Rebut
    • Service Et Pièces de Rechange
    • Déclaration Ue de Conformité
    • Garanties
    • Vue Éclatée
    • Liste des Pièces
  • Italiano

    • Dati Tecnici
    • Avvertenze Per la Sicurezza
    • Regolazione Della Slitta del Sedile
    • Sistemazione E Livellamento
    • Utilizzo del Computer
    • Manutenzione, Pulizia E Cura
    • Assistenza E Pezzi DI Ricambio
    • Consigli Per lo Smaltimento
    • Dichiarazione DI Conformità Ue
    • Garanzia
    • Disegno Esploso
    • Elenco Delle Parti
  • Español

    • Datos Técnicos
    • Indicaciones de Seguridad
    • Ajustar el Carro del Asiento
    • Maniobra y Nivelación
    • Funcionamiento del Ordenador
    • Limpieza, Cuidado y Mantenimiento
    • Indicaciones de Eliminación
    • Servicio y Piezas de Repuesto
    • Declaración de Conformidad Ue
    • Garantías
    • Plano Detallado
    • Lista de Piezas

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 28

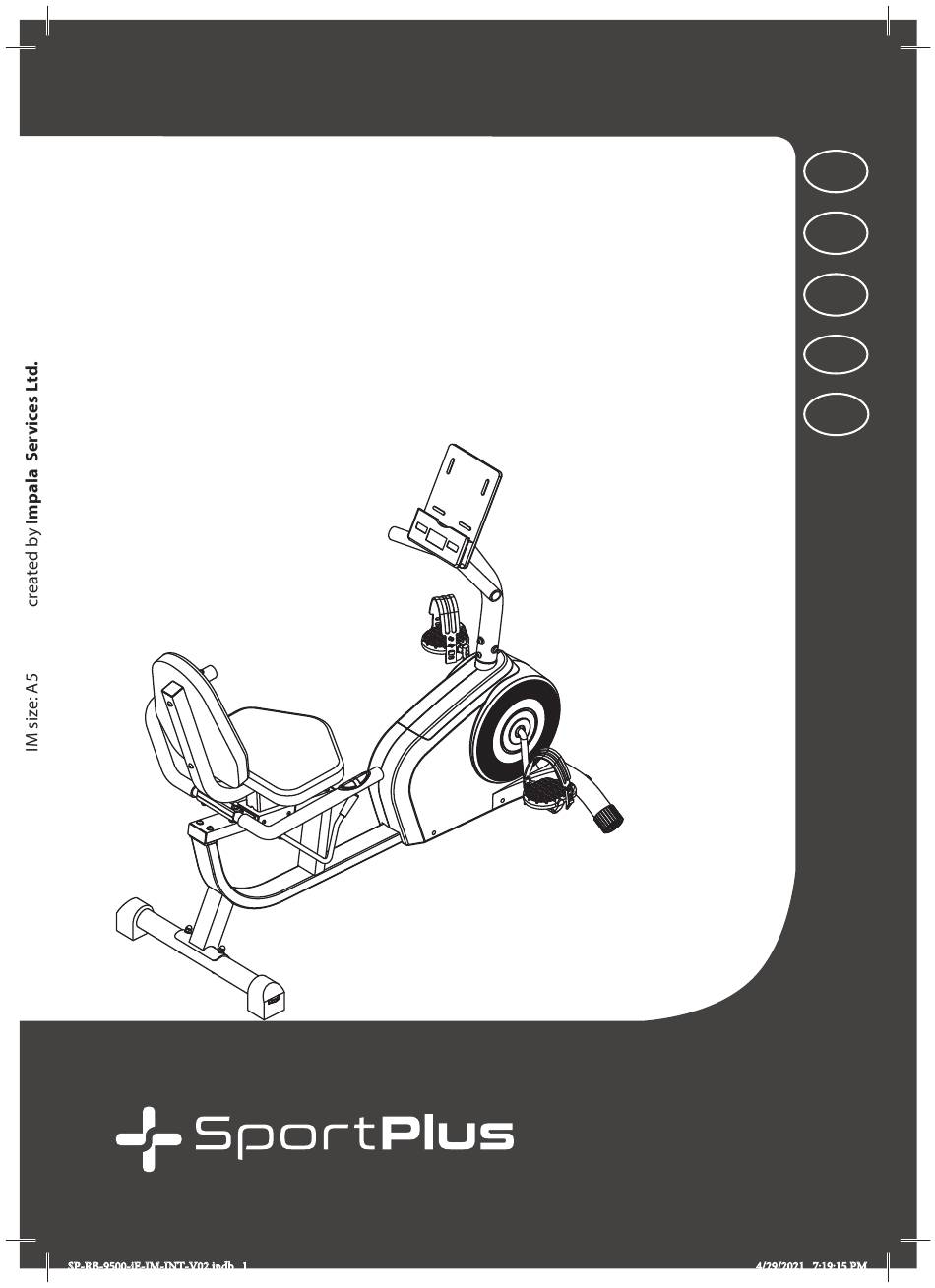

GEBRAUCHSANLEITUNG
`
