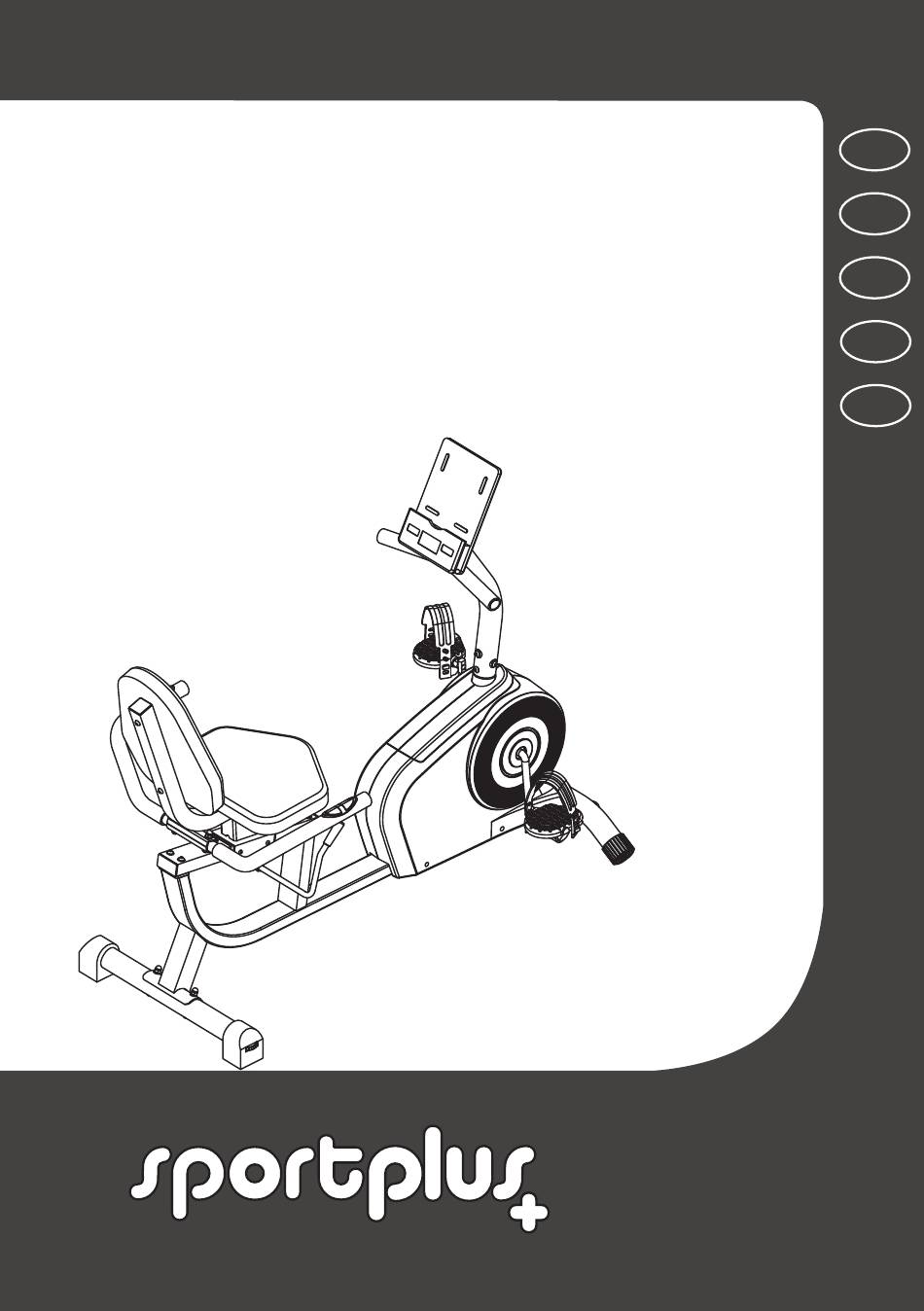

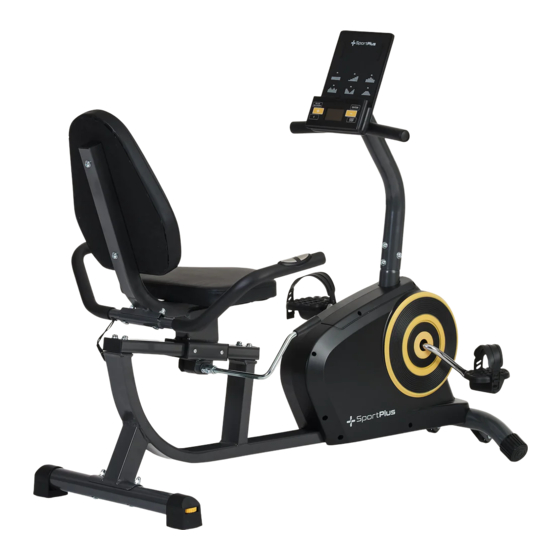

- Page 1 GEBRAUCHSANLEITUNG LIEGERAD USER MANUAL RECUMBANT BIKE MODE D'EMPLOI VÉLO SEMI-ALLONGÉ MANUALE UTENTE CYCLETTE RECLINATA MANUAL DE INSTRUCCIONES BICICLETA RECLINADA SP-RB-9500-iE...
- Page 2 MONTAGESATZ / ASSEMBLY KIT / PIÈCES DE MONTAGE / KIT DI MONTAGGIO / JUEGO DE MONTAJE # 19 M8*60 # 26 16*8.5*1.5 # 27 # 20 M8*55 # 23 16*8.5*1.5 # 29 M8*50 # 23 16*8.5*1.5 # 28 M8*16 # 33 M6*15 # 25 M8*42...
- Page 3 # 22 M8*45 # 24 # 23 16*8.5*1.5 # 21 M8*20 # 26 16*8.5*1.5 # 92 # 93...
- Page 4 LIEFERUMFANG/ SCOPE OF DELIVERY / CONTENU DE LA LIVRAISON / VOLUME DI CONSEGNA / ALCANCE DE LA ENTREGA # 49 # 63 # 64 # 77 # 60 L/R # 4 / 6...
- Page 5 MONTAGEANLEITUNG / ASSEMBLY INSTRUCTIONS / NOTICE DE MONTAGE / ISTRUZIONI DI MONTAGGIO / MANUAL DE MONTAJE Schritt 1 / Step 1 / 1 étape / Passaggio 1 / Paso 1: ère...
- Page 6 Schritt 2 / Step 2 / 2 étape / Passaggio 2 / Paso 2:...
- Page 7 Schritt 3 / Step 3 / 3 étape / Passaggio 3 / Paso 3:...
- Page 8 Schritt 4 / Step 4 / 4 étape / Passaggio 4 / Paso 4:...
- Page 9 Schritt 5 / Step 5 / 5 étape / Passaggio 5 / Paso 5:...
- Page 10 Schritt 6 / Step 6 / 6 étape / Passaggio 6 / Paso 6:...
- Page 11 Schritt 7 / Step 7 / 7 étape / Passaggio 7 / Paso 7:...
- Page 12 Schritt 8 / Step 8 / 8 étape / Passaggio 8 / Paso 8: 60 L 60 R...
-
Page 13: Table Of Contents
Dear Customer, Congratulations for choosing a SportPlus product. We have every expectation that you will be fully satisfied with your new purchase. To guarantee optimal function of this product, please adhere to the following instructions: • Before using this product for the first time, please read the manual carefully! •... -
Page 14: Safety Instructions
SAFETY INSTRUCTIONS INTENDED USE • This product is intended for private use and is not suitable for medicinal, therapeutic or commercial purposes. • The maximum permissible user weight for this product is 110 kg. • Before connecting the device to the mains, make sure the current and mains voltage match the specifications on the rating label. - Page 15 SAFETY INSTRUCTIONS • Parents and supervisors should be aware of their responsibility, since, due to children's natural playfulness and love of experimentation, situations and conduct will likely arise for which the training unit is not intended. • If you allow a child to use the product, do not leave it unattended during use. Make all necessary adjustments to the product yourself and supervise the child during exercise.
-
Page 16: Setting The Seat Carriage
3. SETTING THE SEAT CARRIAGE • Sit on the seat carriage and place both feet on the floor. • Lift the brake lever (49) to release the brake (Ill. 1) and move the seat carriage to the desired position. • Press the brake lever down to lock (Ill. -
Page 17: Moving And Leveling
4. MOVING AND LEVELING MOVING • Carefully lift the device by the rear stabilizer (3) until the wheels on the front stabilizer (9) reach the floor. • Now roll the device to the desired position (Ill. 3). Ill. 3 LEVELING •... -
Page 18: Using The Computer
5. USING THE COMPUTER BUTTON FUNCTIONS ENTER BUTTON • Press this button to confirm the program selection. • Press this button to confirm the training value settings. • Press this button to make program settings for distance, time, calories or heart rate. Please note that not all functions are available in each program. - Page 19 Press this button to turn Bluetooth® on the computer on or off. When Bluetooth® is activated, the Bluetooth® icon flashes on the display. • Download the SportPlus Cardio APP for Android or iOS from the following link: http://www.sportplus.de/application FUNCTIONS •...
- Page 20 5. USING THE COMPUTER PROGRAM SELECTION AND OPERATION Connect the power adapter (70) to a suitable wall socket first and then to the adapter socket on the device. In stop mode, press the + or – button to select a program. Press ENTER to confirm.
- Page 21 USING THE COMPUTER PRESET PROGRAMS (P2-P6) • Select one of the pre-set programs using the + or – button. Press ENTER to confirm. • The preset programs differ in regard to resistance, time, distance and calorie consumption settings. • The following table shows the preset values for the resistance levels of the different programs. •...
-
Page 22: Maintenance, Cleaning And Care
5. USING THE COMPUTER • Consult your doctor to have your body’s ideal pulse range checked. • Important! Stop exercising immediately if you feel dizzy or if you do not feel safe anymore! • Press the start/stop button to start the workout. •... -
Page 23: Notes On Disposal
Our service team is naturally available at any time to assist you with additional questions regarding the assembly and use of your SportPlus product as well as ordering spare parts. Service time:... -
Page 24: Warranties
9. WARRANTIES SportPlus guarantees that the product under warranty has been manufactured from the highest quality materials and has been checked with the utmost care. Should there be any defects within the hereinafter stipulated warranty period and under normal use and maintenance conditions, please contact our service team. -
Page 25: Explosion View
10. EXPLOSION VIEW... -
Page 26: Part List
11. PART LIST No. DESCRIPTION Quantity 48 Hex bolt M8*15 No. DESCRIPTION Quantity 49 Setting lever 1 Main device 50 Eccentric shaft 2 Handlebar post 51 Eccentric disc 3 Front Stabilizer 52 Coated spacer 4 Seat frame 53 Washer Φ30×2.0 5 Handle 54 Spacer belt pulley 6 Carriage tube... - Page 27 Servicehotline: +49 (0) 40 - 780 896 – 35 (Nationales Festnetz, Gesprächsgebühren sind von Ihrem Telefonanbieter / Ihrem Telefonvertrag abhängig.) E-Mail: service@sportplus.org URL: http://www.sportplus.org Servicehotline: +44 - 203 318 4415 (Call charges depend on your phone company / your phone contract.) E-Mail: service@sportplus.org...
