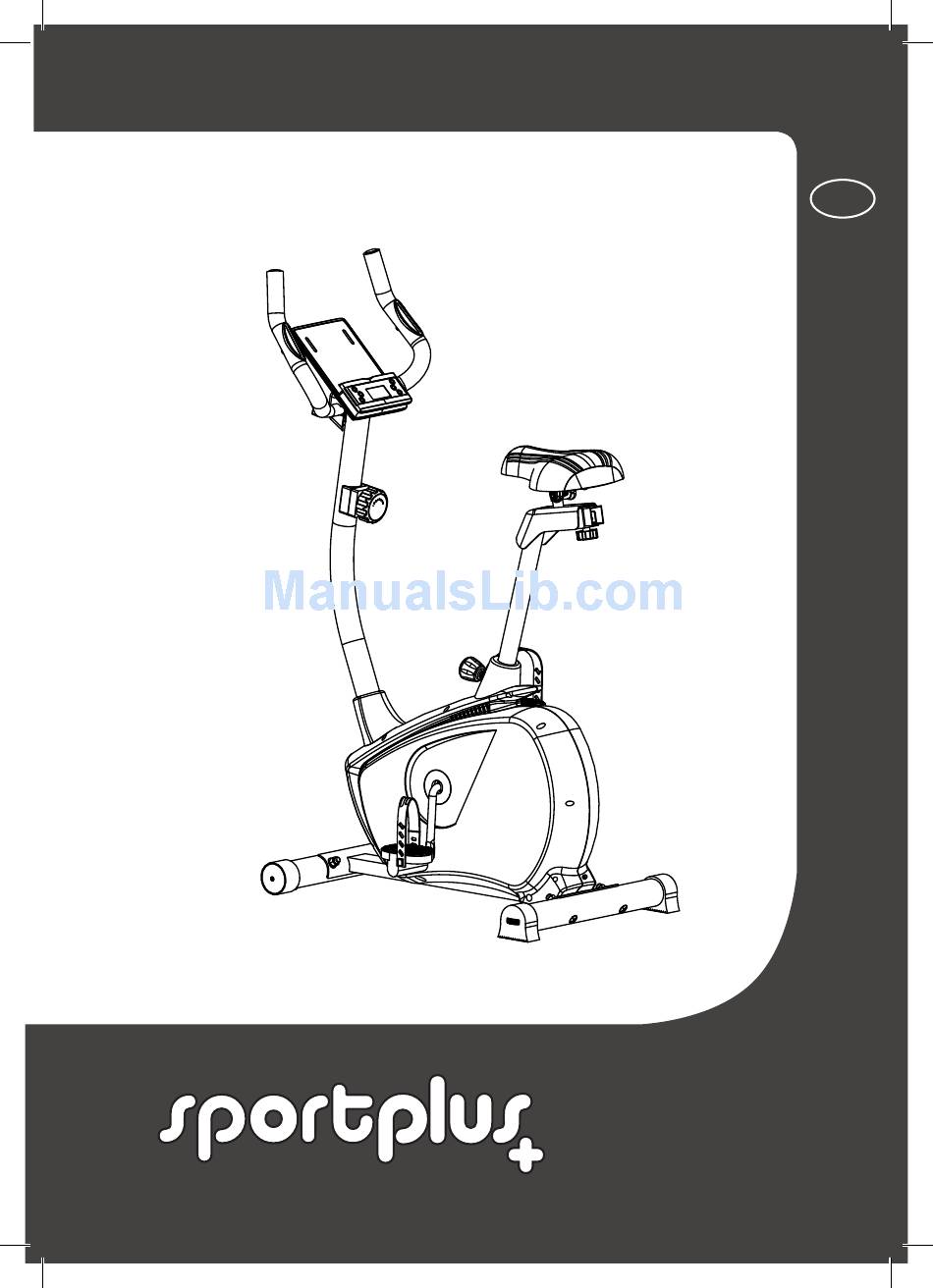

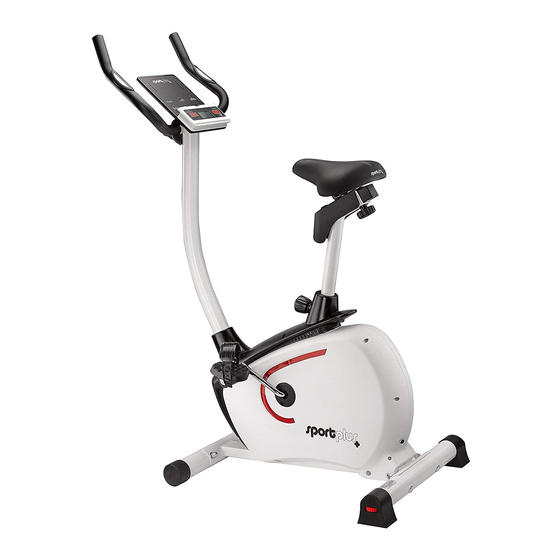

  • Page 1 USER MANUAL ERGOMETER SP-HT-9500-E SP-HT-9500-E-IM-GB-V05.indb 1 2/15/17 2:18 PM...

  • Page 2: Table Of Contents

    Dear Customer, Congratulations for choosing a SportPlus product. We have every expectation that you will be fully satisfied with your new purchase. To guarantee optimal function of this product, please adhere to the following instructions: • Before using this product for the first time, please read the manual carefully! •...

  • Page 3: Safety Instructions

    Use the product for the intended purposes as described in this user manual only. • Shield the product from spraying water, moisture, high temperatures and direct sunlight. SP-HT-9500-E-IM-GB-V05.indb 3 2/15/17 2:18 PM...
  • Page 4 • If necessary, lay out protective padding (not included) beneath the product to protect your floor as there is no guarantee that, for instance, the rubber feet will not leave marks behind. SP-HT-9500-E-IM-GB-V05.indb 4 2/15/17 2:18 PM...

  • Page 5: Preparation

    Hand screw for saddle height adjustment Carriage bolt M10*75 Curved washer Φ10*Φ22 Cap nut M10 Hexagon socket screw M8*16 Curved washer Φ8*Φ20 Handlebar lock screw with T-shaped handle Handlebar rod cover Wrench Hexagon socket wrench (6 mm) Wrench SP-HT-9500-E-IM-GB-V05.indb 5 2/15/17 2:18 PM...
  • Page 6 3. PREPARATION No. Description Description Frame Saddle Base column (front) Left pedal Base column (rear) Right pedal Handlebar rod cover, Head frame tube bottom Handle bar Saddle tube cover, bottom Computer Adapter Saddle tube SP-HT-9500-E-IM-GB-V05.indb 6 2/15/17 2:18 PM...

  • Page 7: Assembly Instructions

    2 carriage bolts (15), 2 curved washers (16) and 2 cap nuts (17). Attach the front base column (2) to the main frame (1). Secure the connection using 2 carriage bolts (15), 2 curved washers (16) and 2 cap nuts (17). SP-HT-9500-E-IM-GB-V05.indb 7 2/15/17 2:18 PM...
  • Page 8 Insert the head frame tube (4) into the main frame (1) and secure the connection with 4 hexagon screws (18) and 4 curved washers (19). • Place the bottom cover of the handlebar rod (35) on the main frame (1). SP-HT-9500-E-IM-GB-V05.indb 8 2/15/17 2:18 PM...
  • Page 9 (6). • Remove the 4 screws (27) from the rear side of the computer (6). Place the computer in the computer mount on the head frame tube and secure with 4 screws (27). SP-HT-9500-E-IM-GB-V05.indb 9 2/15/17 2:18 PM...

  • Page 10: Saddle

    Loosen the nuts on the bottom of the saddle (8). Attach the saddle (8) to the seat slider (39) and secure with the nuts. • Adjust the saddle height at any time after installation using the hand screw (11). SP-HT-9500-E-IM-GB-V05.indb 10 2/15/17 2:18 PM...

  • Page 11: Left Pedal

    Use the handlebar lock screw with T-shaped handle (21) to adjust the handlebar to the desired position. • Connect the adapter (70) to a suitable wall socket. • Connect the adapter (70) to the adapter socket. SP-HT-9500-E-IM-GB-V05.indb 11 2/15/17 2:18 PM...

  • Page 12: Using The Computer

    Start / Stop button: • Start or stop the workout of the respective program by pressing this button. • When in stop mode, press and hold ENTER for 3 seconds in order to reset all values to zero. SP-HT-9500-E-IM-GB-V05.indb 12 2/15/17 2:18 PM...
  • Page 13 Distance setting: 1.0~99.00: activated countdown till 0. CALORIES 0~9990 ±10 Calorie setting 0: the display will show the calories burnt during workout. Calorie setting 0.0~9990: acti- vated countdown till 0 PULSE 80~180 ±1 SP-HT-9500-E-IM-GB-V05.indb 13 2/15/17 2:18 PM...
  • Page 14 Press the + or – button at any time during the workout to adjust the resistance level as desired. Please note: When the value reaches zero, the computer will emit an acoustic signal. Press the start/stop button to continue the workout. SP-HT-9500-E-IM-GB-V05.indb 14 2/15/17 2:18 PM...
  • Page 15 You may nevertheless press the + or – button at any time during workout to adjust the resistance accordingly. • Press the start/stop button to start the workout. PROGRAM Min. Min. Min. Min. Min. Min. Min. Min. Min. Min. P2 Steps P3 Hill P4 Rolling P5 Valley P6 Fat Burn SP-HT-9500-E-IM-GB-V05.indb 15 2/15/17 2:18 PM...
  • Page 16 F 1.0 to F 6.0. The increase takes place in increments of 0.1. F 1.0 indicates the best fitness level, and F 6.0 indicates the worst fitness level. • Press any button to return to the main interface. SP-HT-9500-E-IM-GB-V05.indb 16 2/15/17 2:18 PM...

  • Page 17: Tips For Your Workout

    Do not wear loose clothing that could catch on the unit during training. • Check your pulse regularly. Establish your personal training frequency range to achieve the best training results. Take into consideration your age as well as your physical condition. SP-HT-9500-E-IM-GB-V05.indb 17 2/15/17 2:18 PM...

  • Page 18: Cleaning & Maintenance

    Squeaking noises. Connections (bearing Lubricate the bearing bushing bushing) are dry. with grease. Please contact our customer service in case of further questions or problems. SP-HT-9500-E-IM-GB-V05.indb 18 2/15/17 2:18 PM...

  • Page 19: Complaints & Warranty

    We reserve the right to refuse to accept unsolicited shipments or to return the corresponding merchandise to the sender carriage forward, that is, at the sender's expense. SP-HT-9500-E-IM-GB-V05.indb 19 2/15/17 2:18 PM...

  • Page 20: Terms Of Warranty

    11. TERMS OF WARRANTY SportPlus guarantees that the product this warranty applies to was manufactured using high-quality materials and has been inspected with the utmost attention. The operation and assembly of the product according to the user manual is a precondition of this warranty.

  • Page 21: Explosion View

    12. EXPLOSION VIEW SP-HT-9500-E-IM-GB-V05.indb 21 2/15/17 2:18 PM...
  • Page 22 12. EXPLOSION VIEW SP-HT-9500-E-IM-GB-V05.indb 22 2/15/17 2:18 PM...

  • Page 23: Components List

    Screw for computer M5*10 Handle padding Handlebar rod end caps >Self-tapping screw ST4*20 Washer Φ4.2*Φ12 Cable guide bushing Head frame tube computer cable Main frame computer cable Handlebar rod cover, bottom Saddle tube cover, bottom Handlebar rod cover SP-HT-9500-E-IM-GB-V05.indb 23 2/15/17 2:18 PM...
  • Page 24 Hexagon nut M6 Flange nut Driving belt Ball bearings Hexagon nut M8 Flywheel Spring Self-tapping screw ST5*15 Magnet assembly Drive wheel Saddle support sheath Engine cable Pedal arm crank 66L/R Housing (left/right) Magnet Power cable Motor Adapter SP-HT-9500-E-IM-GB-V05.indb 24 2/15/17 2:18 PM...
  • Page 25 Servicehotline: +44 - 203 318 4415 (Call charges depend on your phone company / your phone contract.) E-Mail: service@sportplus.org URL: http://www.sportplus.org Latupo GmbH Waterloohain 9 22769 Hamburg Germany SP-HT-9500-E-IM-GB-V05.indb 25 2/15/17 2:18 PM...
