Holzmann MKS 355ECO User Manual

Holzmann MKS 355ECO User Manual

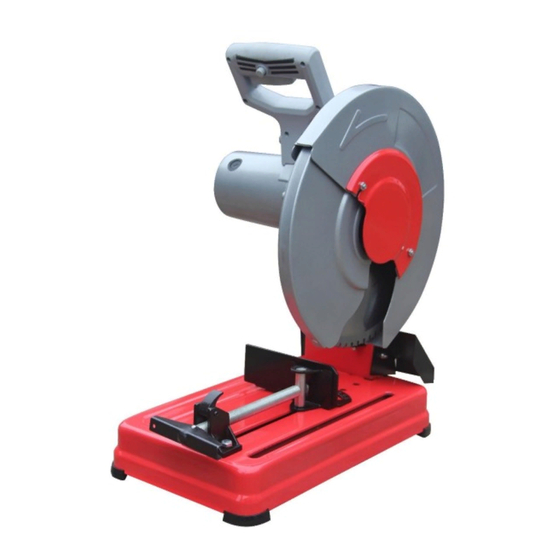

Portable cutoff saw
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Originalfassung
DE
BETRIEBSANLEITUNG
Übersetzung / Translation
EN
USER MANUAL
MKS
355ECO
Edition: 07.01-2019 – Revision - 00 – PlC - DE/EN
MOBILE METALLTRENNSÄGE
PORTABLE CUTOFF SAW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKS 355ECO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Holzmann MKS 355ECO

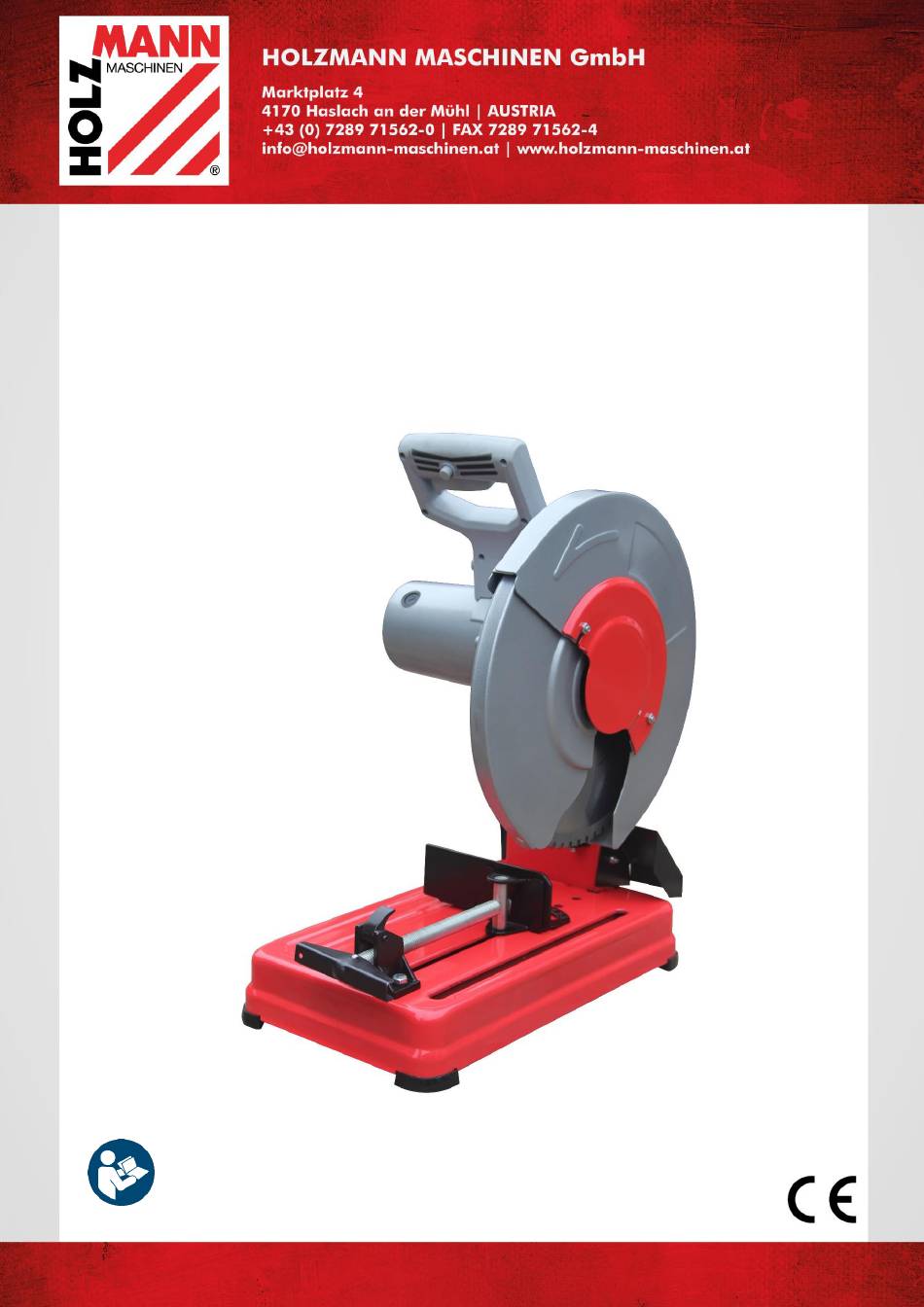

  • Page 1 Originalfassung BETRIEBSANLEITUNG MOBILE METALLTRENNSÄGE Übersetzung / Translation USER MANUAL PORTABLE CUTOFF SAW 355ECO Edition: 07.01-2019 – Revision - 00 – PlC - DE/EN...
  • Page 2: Table Of Contents

    REINIGUNG, WARTUNG, LAGERUNG & ENTSORGUNG 8.1 Reinigung ......................12 8.2 Wartung ......................12 8.2.1 Wartungsplan ....................13 8.2.2 Sägeblattwechsel ..................13 8.2.3 Austausch der Kohlebürsten ................14 8.3 Lagerung ......................14 8.4 Entsorgung ......................14 FEHLERBEHEBUNG PREFACE (EN) HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 3 Ersatzteilbestellung / Spare Parts Order ............25 17.2 Explosionszeichnung / Exploded View ............26 17.3 Ersatzteilliste / Spare Parts List ..............27 EU-KONFORMITÄTSERKLÄRUNG / CE-CERTIFICATE OF CONFORMITY GARANTIEERKLÄRUNG (DE) GUARANTEE TERMS (EN) PRODUKTBEOBACHTUNG | PRODUCT MONITORING HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 4: Sicherheitszeichen / Safety Signs

    Sicherheitsabstand einhalten! Keep safety distance! Warnschilder und/oder Aufkleber an der Maschine, die unleserlich sind oder die entfernt wurden, sind umgehend zu erneuern! Missing or non-readable se curity stickers have to be replaced immediately! HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 5: Technik / Technics

    Tiefenregulierungsschraube / depth fixation screws adjustment bolt Funkenschutz / rear spark shield Transportsicherung / transport lock Fixierlöcher Anschlag / fixation holes Motorgehäuse / motor housing vise stop Grundgestell / Base Spindelarretierung / spindle lock HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 6: Technische Daten / Technical Data

    Maschinenmaße / machine dimension 710 x 300 x 635 mm Maße Grundplatte / dimension base plate 455 x 255 x 80 mm Gewicht (netto) / weight (net) 18,5 kg Gewicht (brutto) / weight (gross) 20 kg HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 7: Vorwort (De)

    Nachdruck, die Übersetzung und die Entnahme von Fotos und Abbildungen werden gerichtlich verfolgt. Als Gerichtsstand gilt das Landesgericht Linz oder das für 4170 Haslach zuständige Gericht als vereinbart. Kundendienstadresse HOLZMANN MASCHINEN GmbH 4170 Haslach, Marktplatz 4 AUSTRIA Tel +43 7289 71562 Dw 0 Fax +43 7289 71562 Dw 4 info@holzmann-maschinen.at...
  • Page 8: Sicherheit

    Die nicht bestimmungsgemäße Verwendung bzw. die Missachtung der in dieser Anleitung dargelegten Ausführungen und Hinweise hat das Erlöschen sämtlicher Gewährleistungs- und Schadenersatzansprüche gegenüber der Holzmann Maschinen GmbH zur Folge. Anforderungen an Benutzer Voraussetzungen für das Bedienen der Maschine sind die körperliche und geistige Eignung sowie Kenntnis und Verständnis der Betriebsanleitung.
  • Page 9: Allgemeine Sicherheitshinweise

    Verwenden Sie nur geeignete Verlängerungskabel.  Setzen Sie die Maschine vor Umrüst-, Einstell-, Mess-, Reinigungs-, Wartungs- oder Instandhaltungsarbeiten stets still und trennen sie diese für Wartungs- oder Instandhaltungsarbeiten stets von der Stromversorgung. Warten Sie vor der Aufnahme HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 10: Gefahrenhinweise

    Situation hin, die zu Sachschäden führen kann, wenn sie nicht gemieden wird. Ungeachtet aller Sicherheitsvorschriften sind und bleiben ihr gesunder Hausverstand und ihre entsprechende technische Eignung/Ausbildung der wichtigste Sicherheitsfaktor bei der fehlerfreien Bedienung der Maschine. Sicheres Arbeiten hängt in erster Linie von Ihnen ab! HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 11: Transport

    Sie den Schraubstockgriff (SG) an, um das Werkstück zu sichern. 3. Um das Werkstück zu lösen, lockern Sie den Schraubstockgriff (SG) einige Umdrehungen, heben den Schnellspanner (SP) dann an und ziehen den Schraubstockgriff (SG) nach hinten. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 12: Schnitttiefenstopp Einstellen

    Prüfen Sie vor jedem Betrieb den einwandfreien Zustand der Sicherheitseinrichtungen.  Kontrollieren Sie sämtliche Verbindungen zumindest wöchentlich auf festen Sitz.  Überprüfen Sie regelmäßig den einwandfreien und lesbaren Zustand der Warn- und Sicherheitsaufkleber der Maschine. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 13: Wartungsplan

    3. Nehmen Sie das alte Sägeblatt von der Spindel. 4. Montieren Sie das neue Sägeblatt auf die Spindel (Drehrichtung beachten!) 5. Setzen Sie danach den Außenflansch und die Flanschscheibe wieder auf und ziehen Sie die Dornschraube wieder fest HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 14: Austausch Der Kohlebürsten

    Restmüll. Kontaktieren Sie gegebenenfalls Ihre lokalen Behörden für Informationen bezüglich der verfügbaren Entsorgungsmöglichkeiten. Wenn Sie bei Ihrem Fachhändler eine neue Maschine oder ein gleichwertiges Gerät kaufen, ist dieser in bestimmten Ländern verpflichtet, Ihre alte Maschine fachgerecht zu entsorgen. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 15: Fehlerbehebung

    • Sägeblatt hat Unwucht Kohlebürsten prüfen und ggfs. Innere Beschädigung oder • tauschen Verschleiß (z.B. Kohlebürsten) • Sägeblatt weniger stark gegen Überhitzung • Überbeanspruchung das Werkstück drücken • Sägeblatt schärfen bzw. Sägeblatt abgenutzt oder austauschen stumpf HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 16: Preface (En)

    Check delivery immediately after receipt and make a note of any complaints on the consignment note when the delivery person takes them over! Transport damage must be reported separately to us within 24 hours. Holzmann cannot assume any warranty for transport damage not noted. Copyright © 2018 This documentation is protected by copyright.
  • Page 17: Safety

    Modify, circumvent or disable the safety devices of the machine. The improper use or disregard of the versions and instructions described in this manual will result in the voiding of all warranty and compensation claims against Holzmann Maschinen GmbH. 11.2 User Requirements The physical and mental suitability as well as knowledge and understanding of the operating instructions are prerequisites for operating the machine.
  • Page 18: General Safety Instructions

    A damaged or tangled cable increases the risk of electric shock. Handle the cable with care. Never use the cable to carry, pull, or disconnect the power tool. Keep the cable away from heat, oil, sharp edges or moving parts. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 19: Hazard Warnings

    Irrespective of all safety regulations, your sound common sense and corresponding technical suitability/training are and remain the most important safety factor in the error-free operation of the machine. Safe working depends first and foremost on you! HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 20: Transport

    (SG) to secure the workpiece. 3. To release the workpiece, loosen the vice grip (SG) a few turns, then lift the quick release (SP) and pull out the vice grip (SG). HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 21: Setting The Cutting Depth Stopp

    Before each operation, check that the safety devices are in perfect condition.  Check all connections for tightness at least once a week.  Regularly check that the warning and safety labels on the machine are in perfect and legible condition. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 22: Maintenance Plan

    5. Remove the old saw blade from the spindle. 6. Mount the new saw blade on the spindle (note: direction of rotation!) 7. Reattach the outer flange and the washer and tighten the bolt again. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 23: Replacing The Carbon Brushes

    If you buy a new machine or an equivalent device from your specialist dealer, he is obliged in certain countries to dispose of your old machine properly. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 24: Troubleshooting

    • Check carbon brushes and replace if necessary • Press saw blade less hard Overheating • Machine overstressed against the workpiece • Sharpen or replace saw blade • Saw blade worn or blunt HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 25: Ersatzteile / Spare Parts

    Bestelladresse sehen Sie unter Kundendienstadressen im Vorwort dieser Dokumentation. With original HOLZMANN spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan. I M P O R T A N T...
  • Page 26: Explosionszeichnung / Exploded View

    ERSATZTEILE / SPARE PARTS 17.2 Explosionszeichnung / Exploded View HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 27: Ersatzteilliste / Spare Parts List

    Screw M6x12 Fix washer Soleplate Foot Current ring Dust board Stator Fixed connect rod Bearing Washer Rotor Locknut M8 Bearing Screw M6x30 Weather ring Screw M5x100 Coil spring Screw M5x10 Connect rod Screw M5x10 HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 28 Swith Brush holder YNT18-3 Bottom handle Brush Brush cover YNT19-3 Cable cover Screw M5x30 Cable Lockspring Screw ST4x16 Lockpin Screw M5x65 Shaft Screw ST4x65 Screw M5x20 Cable press board Screw ST4x14 Top handle HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 29: Eu-Konformitätserklärung / Ce-Certificate Of Conformity

    Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void. Technische Dokumentation HOLZMANN-MASCHINEN GmbH 4170 Haslach, Marktplatz 4 Haslach, 07.01.2019 DI (FH) Daniel Schörgenhuber Ort / Datum place/date Geschäftsführer / Director HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
  • Page 30: Garantieerklärung (De)

    Nach Ablauf der Garantiezeit können Instandsetzungs- und Reparaturarbeiten von entsprechend geeigneten Fachfirmen durchgeführt werden. Es steht Ihnen auch die HOLZMANN-Maschinen GmbH weiterhin gerne mit Service und Reparatur zur Seite. Stellen Sie in diesem Fall eine unverbindliche Kostenanfrage, unter Angabe der Informationen siehe C) an unseren Kundendienst oder senden Sie uns Ihre Anfrage einfach per umseitig beiliegendem Formular ein.
  • Page 31: Guarantee Terms (En)

    DIY use and a warranty period of 1 year for professional/industrial use - starting with the purchase of the final consumer (invoice date). In case of defects during this period which are not excluded by paragraph 3, Holzmann will repair or replace the machine at its own discretion.
  • Page 32: Produktbeobachtung | Product Monitoring

    V i e l e n D a n k f ü r I h r e M i t a r b e i t ! / T h a n k y o u f o r y o u r c o o p e r a t i o n ! KONTAKTADRESSE / CONTACT: HOLZMANN MASCHINEN GmbH 4170 Haslach, Marktplatz 4 AUSTRIA...
  • Page 33 PRODUKTBEOBACHTUNG | PRODUCT MONITORING HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at MKS 355 E...
