- Page 1 Communication Module Protos® MS 3400-160 Communication Unit for Memosens® Sensors SENS MEMO Latest Product Information: www.knick.de...
-
Page 2: Warranty
“waste electrical and electronic equipment”. Trademarks The following trademarks are used in this manual without further marking: are registered trademarks of Knick Elektronische Messgeräte GmbH & Co. KG, Germany is a registered trademark of Endress+Hauser Conducta GmbH & Co. KG, Germany Knick Elektronische Messgeräte GmbH &... -
Page 6: Table Of Contents
Table of Contents Protos MS 3400-160 Module Warranty ............................2 Return of Products under Warranty ..................2 Disposal ............................2 Trademarks ........................... 2 Intended Use ..........................10 Safety Information ..................11 Conformity with FDA 21 CFR Part 11 ................11 Software Version ........................12 Modular Concept ........................13... - Page 7 Table of Contents Protos MS 3400-160 Module Maintenance ....................52 Sensor monitor .........................52 Temp probe adjustment ......................52 Diagnostics Functions ......................53 Message list ..........................53 Logbook ............................53 Sensor monitor .........................54 Cal record ............................54 Sensor network diagram .......................55 Sensor wear ..........................55 Calibration timer ........................56 Adaptive calibration timer ....................56...
- Page 8 Table of Contents Protos MS 3400-160 Module Data entry of premeasured sensors .................84 Zero correction ..........................85 Memosens OXY Maintenance ..............86 Sensor monitor .........................87 Cal record ............................88 Sensor network diagram OXY .....................88 Memosens COND Parameter Setting ............89 Concentration Table ........................95 USP Function ....................
- Page 9 Table of Contents Protos MS 3400-160 Module To configure a current output ..................146 Current Outputs: Characteristics ..................147 Output Filter ..........................149 NAMUR Signals: Current Outputs ................... 150 NAMUR Signals: Relay Contacts ..................151 Relay Contacts: Protective Wiring ................... 152 Relay contacts, usage ......................
-
Page 10: Intended Use
Intended Use The module provides an RS-485 interface for connecting Memosens sensors. An analog current input can accept a signal from a pressure transmitter for pressure compensation of oxygen sensors. A galvanically isolated switching input allows the connection of monitoring equipment, such as a flow monitor- ing system. -
Page 11: Safety Information
Safety Information Caution! Never try to open the module! If a repair should be required, return the module to our factory. If the specifications in the instruction manual are not sufficient for assessing the safety of operation, please contact the manufacturer to make sure that your intended application is possible and safe. -
Page 12: Software Version
Software Version MS 3400-160 Module Protos 3400 device software The MS 3400-160 module is supported by software version 9.0 or higher. Module software MS 3400-160 Software version 1.x Query actual device/module software When the analyzer is in measuring mode: Press menu key, open Diagnostics menu: Device description Menu Display Device description 7.00 pH... -
Page 13: Modular Concept
• FIU (radio and Memosens) (software occupies 2 slots) • Unical probe controller Documentation The basic unit is accompanied by a CD-ROM containing the complete docu- mentation. Latest product information as well as instruction manuals for earlier software releases are available at www.knick.de. -
Page 14: Short Description
Short Description Short description: FRONT module 4 captive screws Transflective LC graphic display for opening the analyzer (240 x 160 pixels) (Caution! Make sure that the gasket between FRONT white backlighting, high resolution and BASE is properly seated and clean!) and high contrast. -
Page 15: Short Description: Menu Structure
Short Description: Menu Structure Basic functions: Calibration, maintenance, parameter setting, diagnostics Menu groups Calibration Maintenance Diagnostics Parameter setting Measuring Passcode: 2958 1246 1147 Operator level 1989 Administrator level Selection of BASE SYSTEM Message list Module 1 Point of meas Module 1 further menu FRONT Module 2... - Page 16 Short Description: FRONT module View into the open device (FRONT module) Slot for SmartMedia card • Data recording The SmartMedia card expands the measurement recorder capacity to > 50,000 records. • Exchange of parameter sets 5 parameter sets can be stored on the SmartMedia card, 2 of them can be loaded simultaneously to the analyzer and be switched by remote control.
-
Page 17: Short Description: Base Module

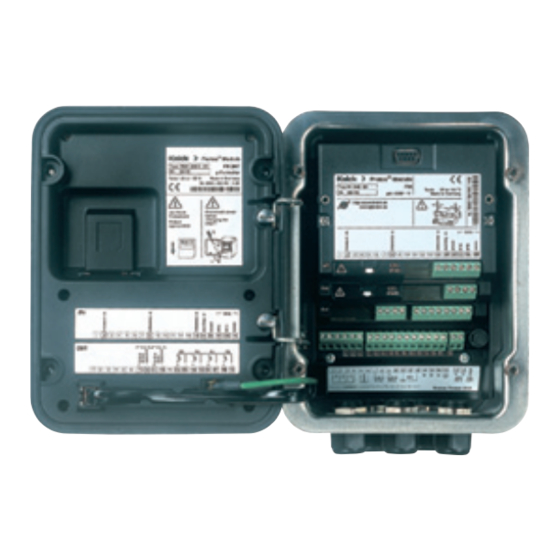

Short Description: BASE Module View into the open device (BASE module, 3 function modules installed) Module equipment Module identification: Plug & Play. Up to 3 modules can be combined as desired. Several input and communica- tion modules are available. Note Only one module can be connected in addition to a FIU 3400-141 module. -
Page 18: Terminal Plate Ms 3400-160 Module
Terminal Plate MS 3400-160 Module Terminal plate MS 3400-160 module: Terminal assignments for Memosens or M12 cable: Terminal Wire color Connection Brown (BN) Power supply + Transparent Shield Green (GN) RS485 (A) Yellow (YE) RS485 (B) White (WH) Power supply – (GND) Attaching the terminal plates The terminal plates of the lower modules can be sticked to the inner side of the door. -
Page 19: Memosens Cable
Memosens Cable The connecting cable consists of an inductive connector for digital Memosens® sensors (bayonet lock). It allows connecting the ferrule-terminated wires from the sensor loop of the transmitter. Specifications Material PEEK Cable diameter 6.3 mm Cable 2x2, twisted wire pairs Length up to 100 m Ambient temperature... -
Page 20: Parameter Setting: Operating Levels
Parameter Setting: Operating Levels Viewing level, Operator level, Administrator level Note: HOLD mode (Setting: BASE module) Viewing level, Operator level, Menu Display Administrator level Open parameter setting 11.03 pH 25.6 °C From the measuring mode: Menu selection Press menu key to select menu. Select parameter setting using arrow keys, press enter to confirm.
