Summary of Contents for DEFA Solid 712800

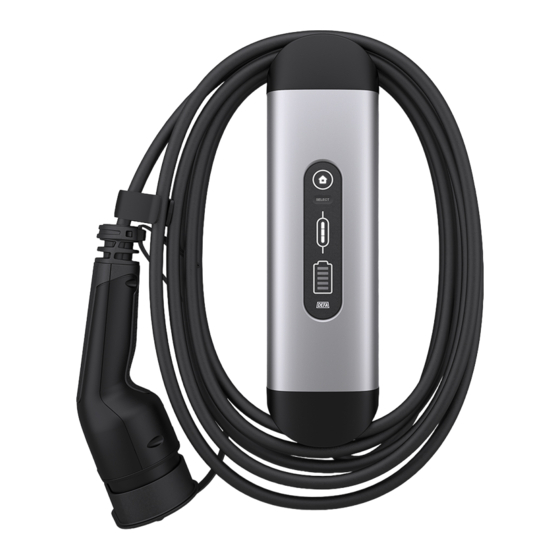

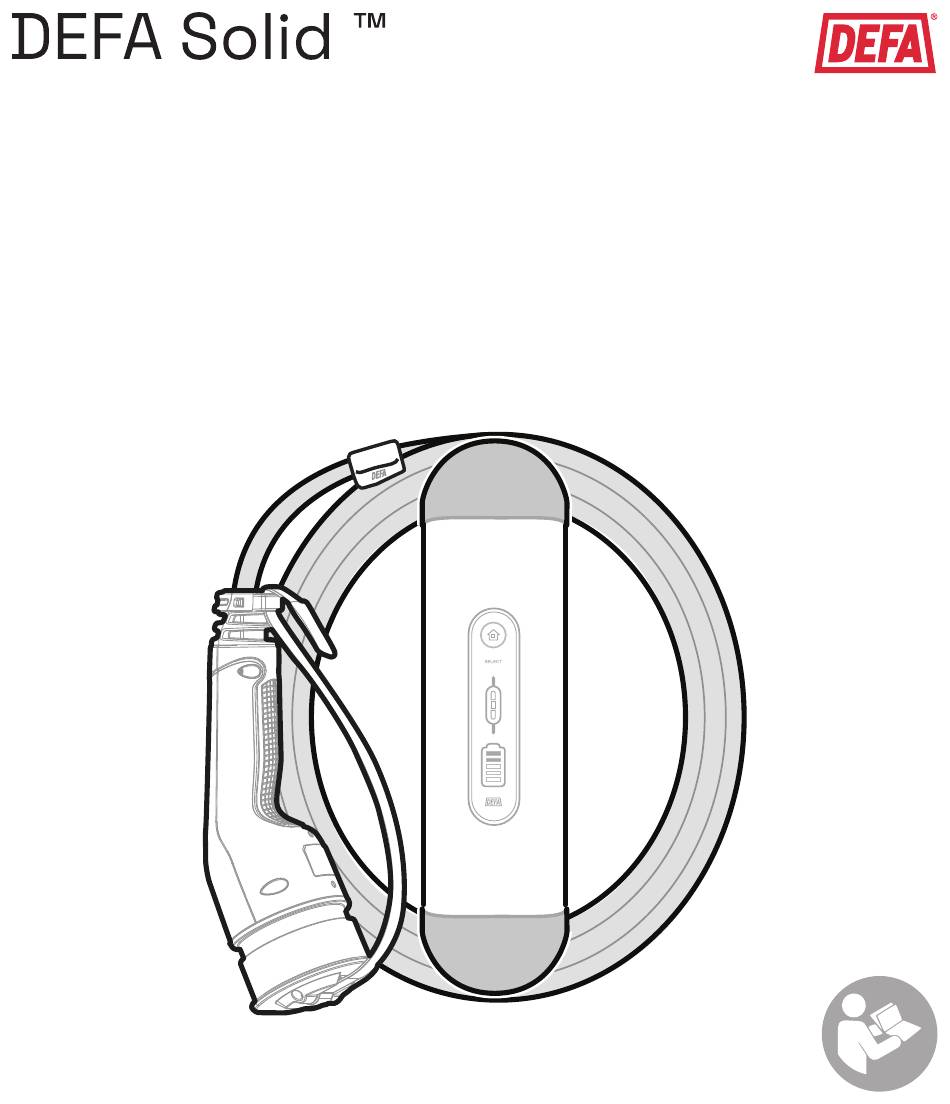

- Page 1 EV Charging Station (EN) User Manual...
-
Page 3: Table Of Contents
Table of Contents Description ......................Safety information ....................Main parts ......................Charge the vehicle....................Display symbols on the charging unit ..............Set the required charging level................Store and protect ....................Maintenance and care..................Error detection and solutions................Technical specification ..................Contact information .................... -
Page 4: Description
The DEFA Solid EV Charger is a premium charging station for electric vehicles and plug-in hybrids. The DEFA Solid EV Charger has been created with the user in mind. Unique features, unmatched user friendliness, and extreme durability characterizes the DEFA Solid EV Charger. -
Page 5: Safety Information
defa.com... - Page 6 Handle the charger with care and do not subject it to strong force or impact. Do not pull, twist, tangle, drag, or step on the cable. Always hold the cable by the handle when pulling it. Do not pull the cable itself. defa.com...
- Page 7 • Always store with the cable coiled. Do not leave the cable on the ground after usage. • Attach the plug cap to protect the vehicle plug when the product is not in use. • Use the cable clip to coil the cable for when the product is not in use. defa.com...
-
Page 8: Main Parts
Main parts Charging station A. Charging cable B. Charging unit C. Cable clip D. Plug cap E. Vehicle plug F. Wall bracket Display view a. Power Input Indica- tion b. Select Button c. Charger Status Indic- ation d.Vehicle Connection Indication defa.com... -
Page 9: Charge The Vehicle
Insert the plug into the vehicle inlet. The vehicle starts to charge which is indicated by the lights being lit in sequence on Vehicle Connection Indication. The speed in which the lights are lit indicates which level is used. defa.com... - Page 10 WARNING Do not unplug the charging cable while the vehicle is still charging. Always complete or end the charging before unplugging (refer to the vehicle's charging instruction for information about this). • If the charging is finished, all symbols on the display will blink. You can safely unplug the charging cable. defa.com...
- Page 11 Coil the charging cable around the charging unit. Turn the charging station on/off Turn the charging station on/off by pressing and holding Select for 5 seconds. You can't turn off the charging station when it is connected to a vehicle. defa.com...
-
Page 12: Display Symbols On The Charging Unit
Display symbols on the charging unit NOTICE To see animations that explains the different signals, go to www.defa.com. Power Input Indication Indicates if the charging station is connected to power or not. No light – Power off Light on – Power on... - Page 13 Pulsing - Vehicle Pulsing red - Error nection to vehicle - Battery connec- quence - Char- has communicated ted (no charging ging* fully charged yet) *The speed in which the lights are lit indicates which charging level is used. defa.com...
-
Page 14: Set The Required Charging Level
10 A Low 1 16 A 15 A 13 A 12,5 A 11 A Low 2 Chosen by in- staller (marked with "X"): The charging power also depends on the power that the connected vehicle is able to receive. defa.com... -
Page 15: Store And Protect
Roll the cable around the charging unit. Make sure that the plug hangs with the plug cap facing the ground. Attach the clip to the charging cable. Use the plug cap The plug strap can adjust the cap's position. This prevents the cap from collecting water and dirt, and keeps the cap clear of the vehicle. defa.com... -
Page 16: Maintenance And Care
• Check the charging station regularly for cracks and other damage. Cleaning • Switch off the charging station before cleaning. This is done by pressing Select for 5 seconds while the vehicle is not connected. • Use a damp cloth to clean. Do not use water or harsh chemicals. defa.com... -
Page 17: Error Detection And Solutions
This error state will display if there is a problem detected with the internal electronics of the charging unit. Try this • Contact support, see chapter Contact Information. • Unplug the charging cable from the vehicle and then plug it in again. defa.com... - Page 18 Try this • Check that the power supply to the property is functioning as expected. • Check that the domestic circuit breaker/fuse plug has not been triggered. • Consult an electrician or the person responsible for installing the charging station. defa.com...
-
Page 19: Technical Specification
Storage temperature -50 °C to +85 °C Size (L x W x T) 312 x 85 x 70 mm Material charging unit Aluminum IK rating IK 08 IP rating IP 44 Weight 2,3 kg Certification CE, IEC61851, IEC62955 Recycling EE-waste defa.com... -
Page 20: Contact Information
Contact information If you have any questions, contact your local vendor, visit defa.com or call DEFA support: • Phone (Norway/International): +47 32 06 77 00 • Phone (Sweden/International): +46 10 498 38 00 • Phone (Finland): +358 (0)20 152 72 00 If you have any feedback on how the system or support can be improved, feel free to give us your input at connect@defa.com...
