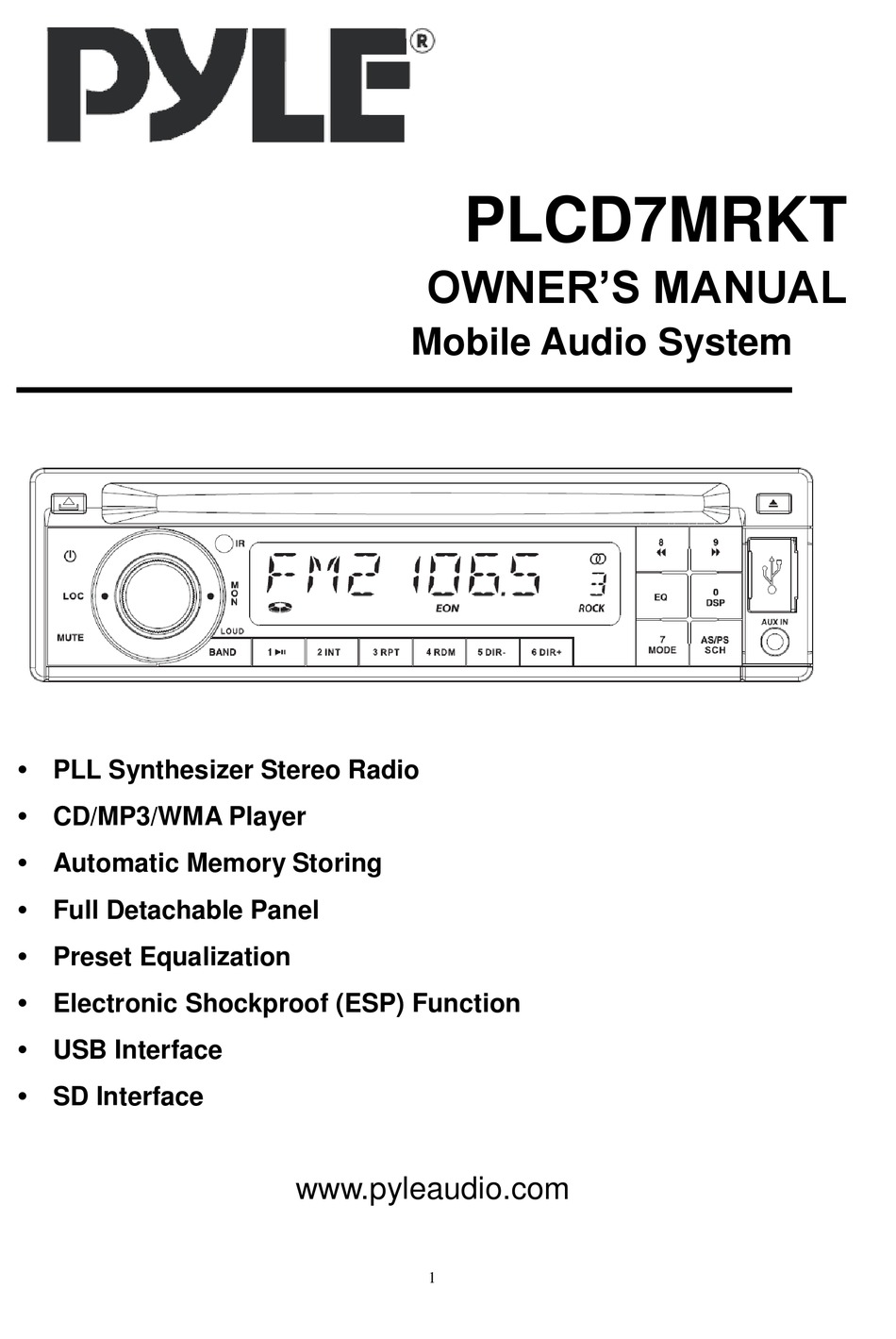

PLCD7MRKT
OWNER'S MANUAL
Mobile Audio System
 PLL Synthesizer Stereo Radio
 CD/MP3/WMA Player
 Automatic Memory Storing
 Full Detachable Panel
 Preset Equalization
 Electronic Shockproof (ESP) Function
 USB Interface
 SD Interface
www.pyleaudio.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCD7MRKT and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLCD7MRKT

Summary of Contents for Pyle PLCD7MRKT

  • Page 1 PLCD7MRKT OWNER’S MANUAL Mobile Audio System  PLL Synthesizer Stereo Radio  CD/MP3/WMA Player  Automatic Memory Storing  Full Detachable Panel  Preset Equalization  Electronic Shockproof (ESP) Function  USB Interface  SD Interface www.pyleaudio.com...

  • Page 2: Table Of Contents

    CONTENTS Installation ........... 3 Selecting tracks in single step ... 11 Take out screw before installation ..3 Selecting directory up/down ....11 DIN Front-Mount (Method A) ....3 Pausing playing ......... 11 Previewing all tracks ......11 Installing the unit ....... 3 Repeating the same track ....

  • Page 3: Installation

    INSTALLATION TAKE OUT SCREW BEFORE INSTALLATION Notes: Before install the unit, please remove the  Choose the mounting location where two screws. the unit will not interfere with the normal driving function of the driver. Take out screw before installation. ...

  • Page 4: Removing The Unit

    INSTALLATION back of the unit in place. Use the supplied they will go (with the notches facing up) hardware (Hex Nut (M5mm) and Spring into the appropriate slots at the middle Washer) to attach one end of the strap to left and right sides of the unit.

  • Page 5: Din Rear-Mount (Method B)

    INSTALLATION To fasten the unit to the factory radio 4. Lift the top of the outer trim ring then pull mounting brackets. it out to remove it. Align the screw holes on the bracket with 5. Insert both of the supplied keys into the the screw holes on the unit, and then tighten the screws (5x5mm) on each side.

  • Page 6: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL REMOVING THE FRONT PANEL 1. Press the release button ( ) on the Precautions when handling front panel and pull off the front panel. 1. Do not drop the front panel. 2. Do not put pressure on the display or control buttons when removing or installing the front panel.

  • Page 7: Wiring Connection

    WIRING CONNECTION ISO CONNECTION...

  • Page 8: Operation

    OPERATION LOCATION OF KEYS 16. DIR+ (release button) 17. DIR- 18. RDM 4. MON 19. RPT 5. disc slot 20. INT 6. LCD 7. EQ 22. BAND/LOUD | 8 (Skip backward) 23. SEL/VOL | 9 (Skip forward) 24. MUTE (Eject button) 25.

  • Page 9: Switching The Unit On/Off

    OPERATION SWITCHING ON/OFF THE UNIT stereo mode. You can sometimes improve Press and hold button (1) to turn on the reception of distant stations by selection unit. When the unit is on, press and hold EQUALIZATION button (1) for 2 seconds to turn the Press EQ button (7) shortly to turn on unit off.

  • Page 10: Radio Operation

    OPERATION following reasons: Press the AS/PS button (14) shortly to Initial installation of the unit when all scan preset station. The radio will wiring is completed. pause at this station for a few seconds All the function buttons do not operate. and then resume its search.

  • Page 11: Playing All Tracks In Random

    OPERATION Repeat all the tracks. player. Press it again to resume play.  PLAYING ALL TRACKS RANDOM  PREVIEWING ALL TRACKS Press RDM button (18) to play all tracks Press INT button (20) to play first on a CD in random order. Press again to several seconds of each track on the cancel the function.

  • Page 12: Display Information

    OPERATION Searching Directory or File Name  FUNCTION VERSION ONLY) and other Press AS/PS button for two times. It information. enters into “Searching Directory or KEY Assigned IN Searching mode (Table 1) File Name” in Digital Audio CD. AS/PS Mode Select unit searches files...

  • Page 13: Sd Operation

    OPERATION Note： Bit Rate Supports  The main unit can only support Standard (kbps) Mode standard USB-memory discs that are MPEG1 Audio 32,48,64,96, Stereo approved by Microsoft. Layer 3 128,192,256,  USB MP3 player is not a standard (44.1kHz) which means different brand name or Windows 64,96,128,192 Stereo...
  • Page 14 OPERATION ReWritable 2. The unit cannot play a CD-R and CD-RW that is not finalized. (Please refer manual your CD-R/CD-RW recorder CD-R/CD-RW software for more information on finalization process). 3. Depending on the recording status, conditions of the disc and the equipment used for the recording, some CD-Rs/CD-RWs may not be played on this unit.

  • Page 15: Remote Control

    REMOTECONTROLHANDSET(OPTIONAL) FUNCTION KEY & CONTROL 1. POWER Power ON/OFF Button 2. 7/MODE Mode Botton(S,T,U,7,For MP3/WMA Operation) 3. TUNE/SKIP Tune/SKIP Down Button(V,W,X,8 For MP3/WMA Operation) 4. BND(LOU/ENT) Band Select Button(When pressed shortly) Loudness Button (When pressed long) (Enter Button For MP3/WMA Operation) 5.

  • Page 16: Specification

    SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 160 (D) x 50 (H) Tone Controls Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) : ±10 dB Maximum Output Power Version V : 4x50 watts Current Drain...

  • Page 17: Trouble Shooting

    TROUBLE SHOOTING Before going through the checklist, check the wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition switch is If the power supply is connected to the No power.
