MOBILE AUDIO SYSTEM

Instruction Manual

CD PLAYER
WWW.PYLEAUDIO.COM
PLCD21

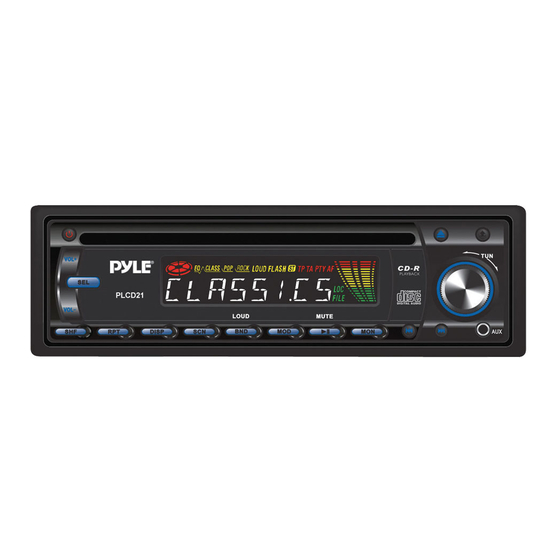

● AM/FM 2 Band Radio
● Anti-Shock Mechanism
● LCD Digital Display
● Semi-Detachable Front Panel
● Auto Power On
● RCA Line Out

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCD21 and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLCD21

Summary of Contents for Pyle PLCD21

  • Page 1: Instruction Manual

    MOBILE AUDIO SYSTEM Instruction Manual CD PLAYER WWW.PYLEAUDIO.COM PLCD21 ● AM/FM 2 Band Radio ● Anti-Shock Mechanism ● LCD Digital Display ● Semi-Detachable Front Panel ● Auto Power On ● RCA Line Out...

  • Page 2: Table Of Contents

    CONTENTS Installation 1. DIN FRONT-MOUNT (Method A) 2. DIN REAR-MOUNT (Method B) Using The Detachable Front Panel Wiring Diagram Operation General Operation Radio Operation CD Operation Aux In Operation Disc Notes Specification Troubleshooting...

  • Page 3: Installation

    Installation Notes: - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

  • Page 4: Din Rear-Mount(Method B)

    1. Frame 2. Release Frame Key Insert the release frame key into the groove at the right side of the frame, then prize out to remove the frame (You can also use the key to remove the frame from the left side.) 3.

  • Page 5: Wiring Diagram

    Precautions when handling 1. Do not drop the front panel. 2. Do not put pressure on the display or control buttons when removing or installing the front panel. 3. Do not touch the contacts on the front panel or on the main unit body. It may result in poor electrical contact.

  • Page 6: Operation

    Operation General Operation Front panel : When you remove the front panel :...

  • Page 7: Radio Operation

    SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button (except button (1) and or inserting a disc to disc slot (18). When system is on, press turn off the unit. SOUND ADJUSTMENT Press button (10) to adjust volume level. Press button 9 continually will...

  • Page 8: Cd Operation

    TUNE BUTTON Rotate TUNE button (17) desired broadcasting station. CD Operation SWITCHING TO CD MODE 1. If there is no CD disc inserted in the driver: Gently insert a CD with the printed side uppermost into the Disc Slot (18) until you feel some resistance.
  • Page 9 2. The unit cannot play a CD-R and CD- RW that is not finalized. (Please refer to the manual of your CD-R/CD-RW recorder or CD-R/CD-RW software for more information on finalization process). 3. Depending on the recording status, conditions of the disc and the equipment used for the recording, some CD-Rs/CD- RWs may not be played on this unit.

  • Page 10: Specification

    Specification 1. GENERAL Power Supply Requirements DC 12 Volts, Negative Ground Chassis Dimensions 178(W)x160(D)x 50(H) Tone Controls - Bass (at 100 Hz) ±14 dB - Treble (at 10 kHz) ±14 dB Maximum Output Power 4x40 watts Current Drain 10 Ampere (max.) 2.

  • Page 11: Troubleshooting

    Troubleshooting Before go through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. No power The car ignition switch is not on. ● If the power supply is connected to the car accessory circuits, but the engine is not moving, switch the ignition key to “ACC”.
