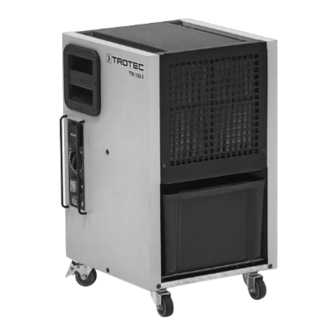

- Page 1 TTK 125 S OPERATING MANUAL DEHUMIDIFIER...
-
Page 2: Table Of Contents
Errors and faults.............. 7 and colour are reserved. The scope of delivery may vary from product images. This Maintenance ................ 8 document was created with all due care. Trotec accepts no Technical annex.............. 10 liability whatsoever for possible mistakes or omissions. © Trotec Declaration of conformity ........... 14... -
Page 3: Safety
Behaviour in the event of an emergency 1. In an emergency, disconnect the device from the mains feed-in: Switch the device off and disconnect it from the mains. 2. Do not reconnect a defective device to the mains. Operating manual – dehumidifier TTK 125 S... -
Page 4: Information About The Device
(see chapter Installing the condensate pump). The device can reduce the relative humidity of a room to approx. 32 %. Due to the heat radiation generated during operation, the room temperature may rise by approx. 1–4 °C. Operating manual – dehumidifier TTK 125 S... -
Page 5: Transport And Storage
The higher the room temperature and relative humidity, the greater the dehumidification performance. For use in living rooms, a relative humidity of approx. 50 to 60 % is sufficient. In storage facilities and archives, the humidity should not exceed approx. 50 %. Operating manual – dehumidifier TTK 125 S... - Page 6 Max. The device is optionally available with a control panel with two Automatic defrost counters (see the image at the top right). Contact your Trotec If the room temperature is below 11 °C, the evaporator will customer service.
- Page 7 Emptying the condensation tank Operation with hose attached to the condensation connection Operating manual – dehumidifier TTK 125 S...
-
Page 8: Errors And Faults
Maintenance). If the inside of the device is dirty, have it cleaned by a specialist company or by Trotec. Your device still does not operate correctly after these checks? Have the device repaired by authorised expert staff or by Trotec. Operating manual – dehumidifier TTK 125 S... -
Page 9: Maintenance
11. Date: ......12. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......13. Date: ......14. Date: ......15. Date: ......16. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......Operating manual – dehumidifier TTK 125 S... - Page 10 Trotec. • Reinsert the cleaned, dry filter in the device in reverse order. Operating manual – dehumidifier TTK 125 S...
-
Page 11: Technical Annex
Condensation tank indicator light (red), tank full Kondensatbehälter-Kontrolllampe (rot), Behälter voll Operating hours counter / Betriebsstundenzähler Compressor / Kompressor Fan motor / Lüftermotor Two way valve (defrost magnet valve) / Zwei-Wege-Ventil (Abtau-Magnetventil) Water pump socket / Wasserpumpe Steckdose Operating manual – dehumidifier TTK 125 S... - Page 12 Exploded assembly drawing Note! The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. Operating manual – dehumidifier TTK 125 S...
- Page 13 Full Tank Microswitch Castors - M6 Safety Nuts; Zinc Plated; DIN Tank Detection Spring Mechanical Humidistat General - 4 x 6 Aluminium Blind Rivet Ø 230 Aluminium Sucking Fan Blade Printed Circuit Board Operating manual – dehumidifier TTK 125 S...
- Page 14 Installing the condensate pump (optional) Operating manual – dehumidifier TTK 125 S...
-
Page 15: Declaration Of Conformity
(see Technical Data). Phone: +49 2452 962-400 Dispose of the refrigerant appropriately and according to the Fax: +49 2452 962-200 national regulations. E-mail: info@trotec.com Heinsberg, 19.04.2012 Detlef von der Lieck Managing Director Operating manual – dehumidifier TTK 125 S... - Page 16 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
