1 / 8
MODEL #
CM7 382T
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7382T
Summary of Contents for Furniture of America CM7382T

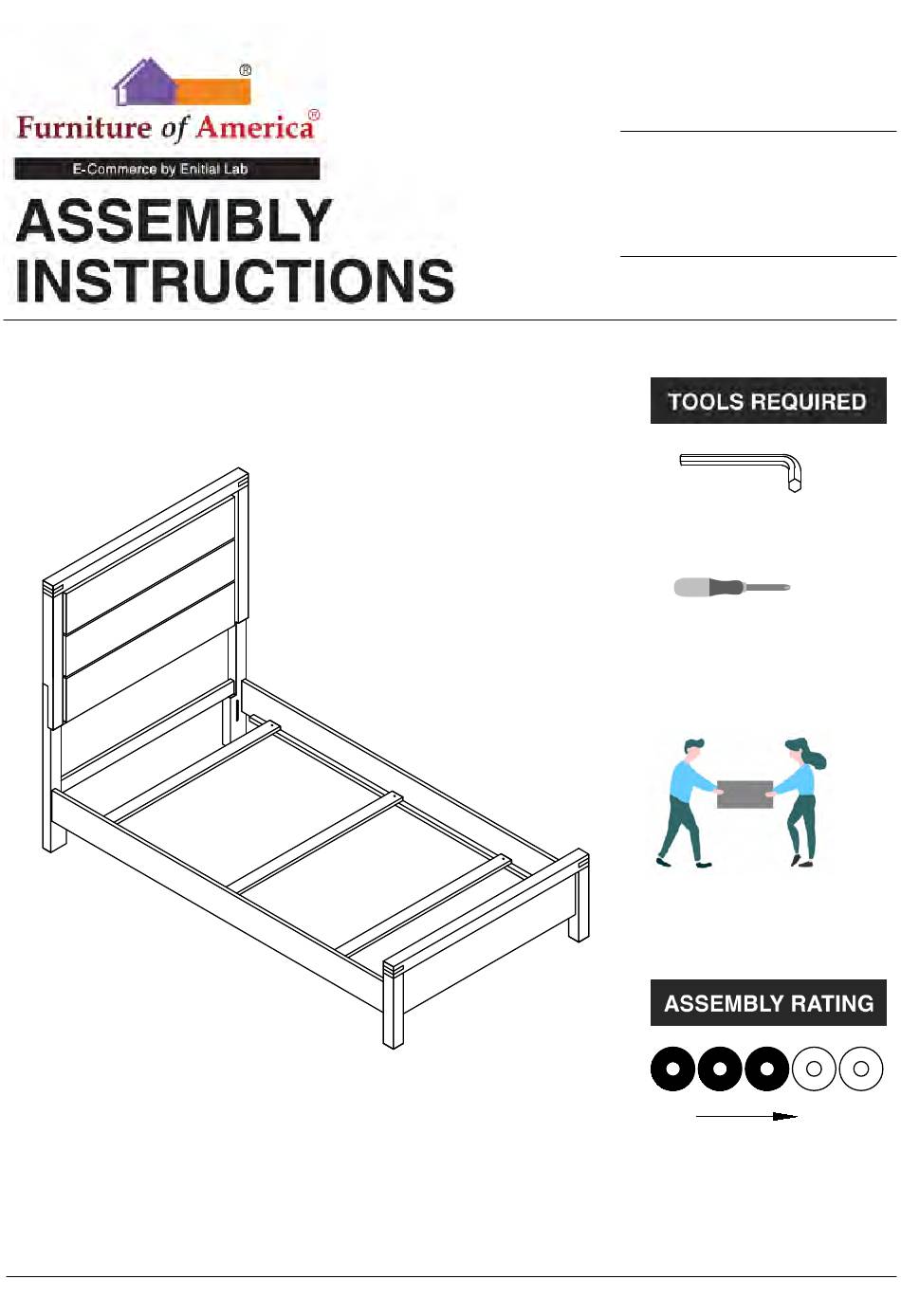

- Page 1 MODEL # CM7 382T Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 CM7 382T #4 1pc #1 1 pc #2 2 pc s #3 1pc Headboard C onnecting Rod F ootboard #5 2pcs #6 3 pcs S ide Rail Slat #A 1 pc #B 8pcs #C 8pcs #D 8pcs Bolt Ø5/16" x 1-1/2" Allen Wrench M4 Lock Washer Ø5/16"...
- Page 6 CM7 382T is packed in 2 cases Carton Disignation Part Hardware #A 1pc Headboard #B 8pcs #C 8pcs #D 8pcs #E 6pcs Connecting Rod CM7382 T -HBFB Footboard Slat CM7382 T -R Side Rail 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS Part #2 x2pcs Part #3 x1pc Hardware #B x2pcs Hardware #C x2pcs Hardware #D x2pcs Align connecting rod (#3) to HB legs (#2), then secure by using bolts (#B) with washers (#C,D). Part #1 x1pc Hardware #B x6pcs Hardware #C x6pcs Hardware...
- Page 8 ASSEMBLY INSTRUCTIONS Part #4 x1pc Part #5 x2pcs Align side rails (#5) to the headboard and footboard (#4), then hook the side rails (#5) to the latches on the headboard and footboard (#4). Align slats (#6) to the side rails (#5), Part #6 x3pcs then secure by using screws (#E).
