VERSION
# 19-12-10
1 / 12

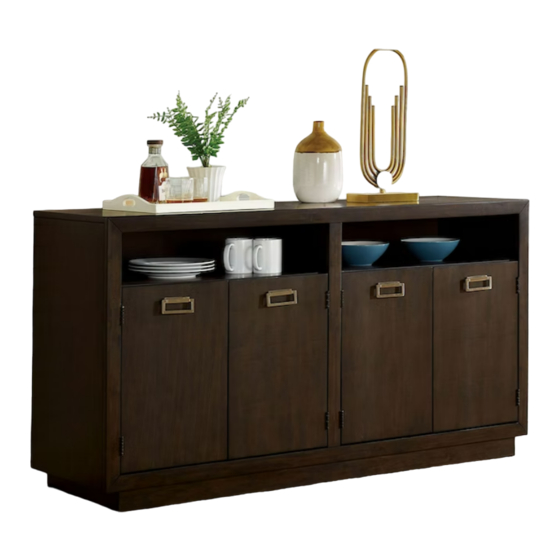

MODEL #
CM3784SV
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3784SV
Summary of Contents for Furniture of America CM3784SV

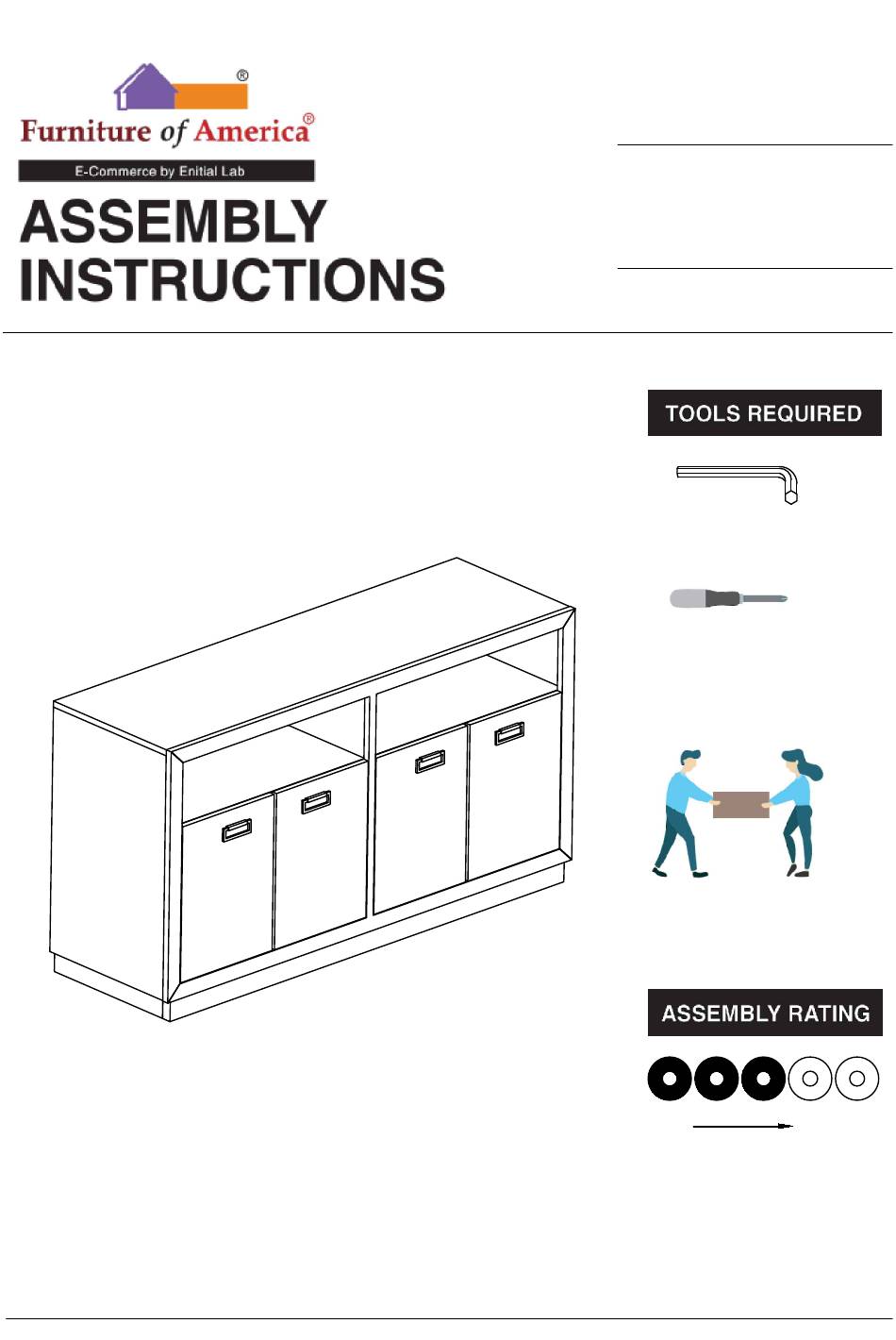

- Page 1 MODEL # CM3784SV Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 1 2...
- Page 5 SERVER CM3784SV #1 1pc #2 1pc #3 1pc #4 1pc Top Panel Bottom Panel Back Panel Front Frame #5 1pc #6 2pcs #7 2pcs #8 1pc Front Apron Shelf Adjustable Shelf Middle Panel #9 1pc #10 1pc #11 1pc Right Apron...
- Page 6 #A 4pcs #B 10pcs Allen Wrench 4mm Leveler Plastic Bolt Ø1/4" x 2-1/8" Bolt Ø1/4" x 1-3/8" #C 3pcs #D 17pcs Bolt Ø1/4" x 1" Lock Washer Ø1/4" Anti-tip Kit #E 17pcs #F 8pcs Flat Washer Ø1/4" Shelf Pin 6 / 12...
- Page 7 ASSEMBLY INSTRUCTIONS Align and attach aprons (#8,9) to the aprons (#10,11). Part #8 x1pc Part #9 x1pc Part x1pc Part x1pc Unfold frame (#1), then align and attach bottom panel (#3) to the frame (#1). Part #1 x1pc Part #3 x1pc 7 / 12...
- Page 8 ASSEMBLY INSTRUCTIONS Align apron to the bottom panel (#3). Secure apron by using bolts (#A) with washers (#D,E). Hardware #A x4pcs Hardware #C x3pcs Hardware #D x7pcs Hardware #E x7pcs 8 / 12...
- Page 9 ASSEMBLY INSTRUCTIONS Align middle panel (#5) to bottom, then secure by using bolts (#B) with washers (#D,E). Part #5 x1pc Hardware #B x1pc Hardware #D x1pc Hardware #E x1pc Align and attach the shelves (#6). Part #6 x2pcs Part #7 x2pcs Hardware #F x8pcs Insert shelf pins, then place shelves (#7) to...
- Page 10 ASSEMBLY INSTRUCTIONS Slide back panel (#4) to the lined gaps of the unit. Part #4 x1pc Align top (#2) to the unit, then secure by using bolts (#B) with washers (#D,E). Part #1 x1pc Hardware #B x9pcs Hardware #D x9pcs Hardware #E x9pcs 10 / 12...
- Page 11 ASSEMBLY INSTRUCTIONS Accessories #A2 x1set Accessories #A3 x1pc Slide leveler plastic (#A2) to level product. 11 / 12...
- Page 12 12 / 12...
