Your VP-200NA 1:2 XGA / Audio DA
Sections 4.1 and 4.2 describe the top and the underside of the
VP-200NA 1:2 XGA / Audio DA, respectively.
4.1 Your VP-200NA 1:2 XGA / Audio DA (Top)
Figure 1 and Table 1 define the top of the VP-200NA:
Table 1: Features and Functions of the VP-200NA 1:2 XGA / Audio DA Top
#
Feature
1
12V DC
2
3
4
5
6
7
ON LED
8
OUTPUT 2 HD15F Connector Connect to the XGA acceptor 2
9
OUTPUT 1 HD15F Connector Connect to the XGA acceptor 1
10 INPUT HD15F Connector
4
Your VP-200NA 1:2 XGA / Audio DA

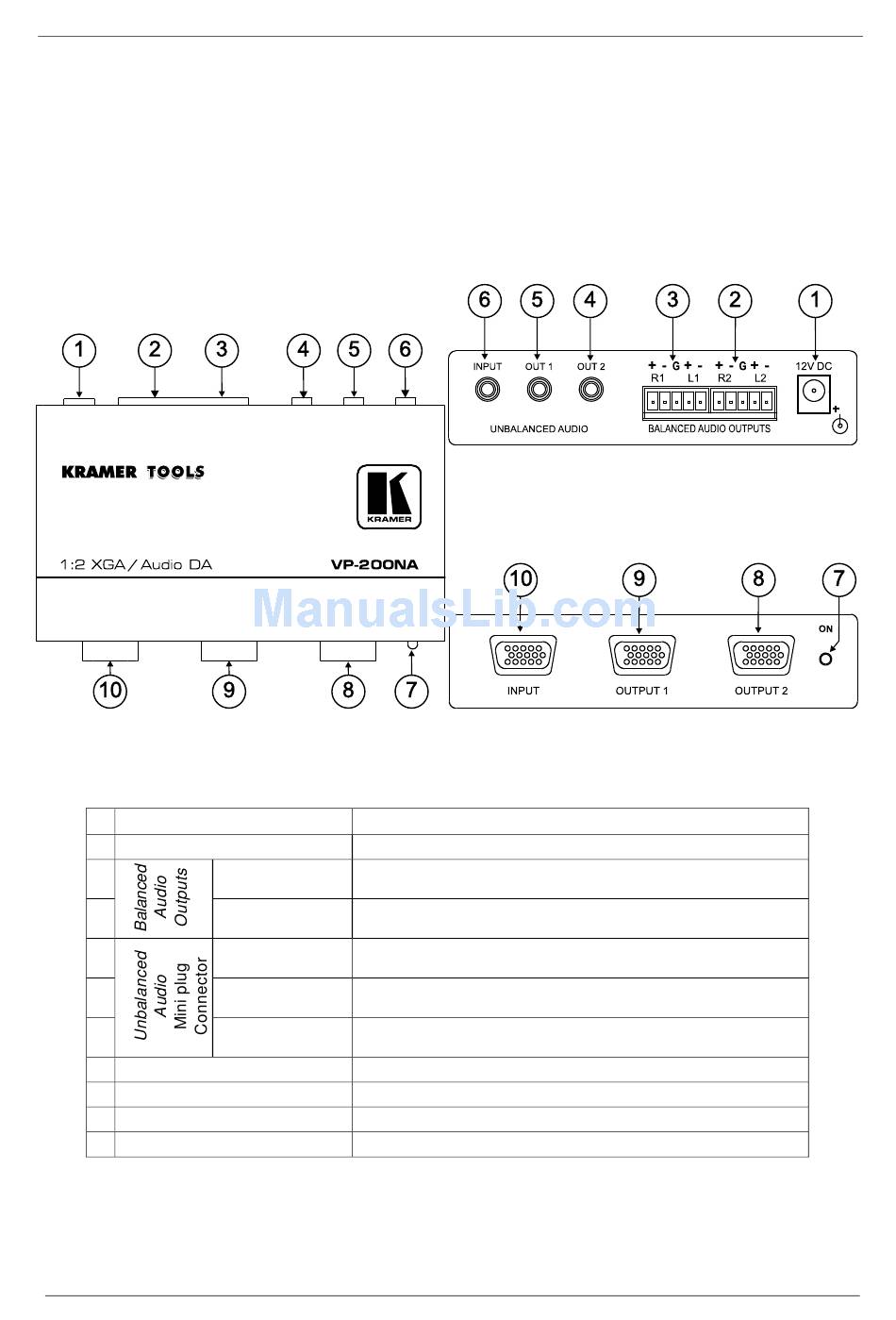

Figure 1: VP-200NA 1:2 XGA / Audio DA Top
Function
+12V DC connector for powering the unit
2 Terminal Block Connects balanced stereo audio to the audio acceptor 2
1 Terminal Block Connects balanced stereo audio to the audio acceptor 1
OUT 2 Mini plug Connects unbalanced stereo audio to the audio acceptor 2
OUT 1 Mini plug Connects unbalanced stereo audio to the audio acceptor 1
INPUT Mini plug Connects audio to the audio source
Illuminates when receiving power
Connect to the XGA source
