Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: VP-200NK, 1:2 High Resolution XGA DA VP-300NK, 1:3 High Resolution XGA DA VP-400NK, 1:4 High Resolution XGA DA... -
Page 2: Table Of Contents
Figure 10: High Resolution XGA DA (Underside) Figure 11: Connecting the VP-300NK 1:3 High Resolution XGA DA Tables Table 1: VP-200NK 1:2 High Resolution XGA DA Features Table 2: VP-300NK 1:3 High Resolution XGA DA Features Table 3: VP-400NK 1:4 High Resolution XGA DA Features... -
Page 3: Introduction
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 4 This quick start also applies to the VP-200NK, which has two outputs, and the VP-400NK, which has four outputs Introduction... - Page 4 Getting Started Projector Computer Graphics Display Monitor Source KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
Overview The Kramer TOOLS VP-200NK, VP-300NK and VP-400NK are 1:2, 1:3 and 1:4 (respectively) distribution amplifiers for XGA and higher resolution signals with a unique new feature. They include the Kramer innovative integrated sync processing; KR - ISP™ technology, which lets you achieve a sharp, stable image when the sync level is too low, by restoring the sync signal waveform. -
Page 6: Your Vp-200Nk 1:2 High Resolution Xga Da

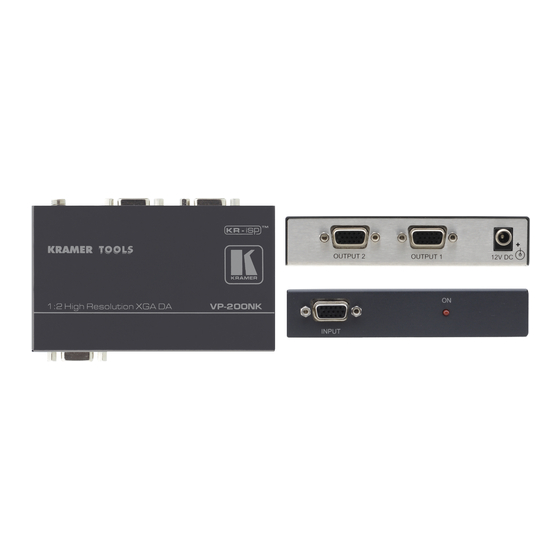

4.1 Your VP-200NK 1:2 High Resolution XGA DA Figure 1, Figure 2, Figure 3 and Table 1 define the VP-200NK: Figure 1: VP-200NK 1:2 High Resolution XGA DA Figure 2: VP-200NK (Top Side Panel) Figure 3: VP-200NK (Lower Side Panel) -
Page 7: Your Vp-300Nk 1:3 High Resolution Xga Da
4.2 Your VP-300NK 1:3 High Resolution XGA DA Figure 4, Figure 5, Figure 6 and Table 2 define the VP-300NK: Figure 4: VP-300NK 1:3 High Resolution XGA DA Figure 5: VP-300NK (Top Side Panel) Figure 6: VP-300NK (Lower Side Panel) Table 2: VP-300NK 1:3 High Resolution XGA DA Features Feature OUTPUT 2 HD15F Connector... -
Page 8: Your Vp-400Nk 1:4 High Resolution Xga Da
Connect to the computer graphics acceptor 1 +12V DC connector for powering the unit Connect to the computer graphics source Connect to the computer graphics acceptor 3 Illuminates when receiving power Connect to the computer graphics acceptor 4 KRAMER: SIMPLE CREATIVE TECHNOLOGY Function... -
Page 9: The Machine Underside
4.4 The Machine Underside Figure 10 and Table 4 define the underside of the VP-200NK Figure 10: High Resolution XGA DA (Underside) Table 4: High Resolution XGA DA (Underside) Features Feature Hs Switch Slide the switch to the right (NORMAL... -
Page 10: Connecting The Vp-300Nk 1:3 High Resolution Xga Da
ID Bit switch to ON 1 From this section on, all the information is relevant to the VP-200NK, VP-300NK and VP-400NK, unless noted otherwise 2 Switch OFF the power on each device before connecting it to your VP-300NK. After powering up your VP-300NK, switch... -
Page 11: Figure 11: Connecting The Vp-300Nk 1:3 High Resolution Xga Da
Connecting the VP-300NK 1:3 High Resolution XGA DA Projector Computer Graphics Monitor Display Source Figure 11: Connecting the VP-300NK 1:3 High Resolution XGA DA... -
Page 12: Technical Specifications
Power supply, mounting bracket OPTIONS: 19" rack adapters 1 Specifications are subject to change without notice Technical Specifications of the High Resolution XGA DA VP-200NK VP-300NK 3 XGA on HD15F connectors 400MHz KRAMER: SIMPLE CREATIVE TECHNOLOGY VP-400NK 4 XGA on HD15F connectors... - Page 13 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
