Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: VP-200AK 1:2 UXGA / Audio DA... -
Page 2: Table Of Contents
Figure 1: VP-200AK 1:2 UXGA / Audio DA Figure 2: Connecting the VP-200AK 1:2 UXGA / Audio DA Tables Table 1: VP-200AK 1:2 UXGA / Audio DA Features Table 2: Technical Specifications of the VP-200AK 1:2 UXGA / Audio DA... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
Overview Overview The Kramer TOOLS VP-200AK is a 1:2 distribution amplifier for UXGA (and higher) resolution signals, as well as unbalanced stereo audio signals and/or balanced stereo audio signals. In particular, the VP-200AK 1:2 UXGA / Audio DA: Accepts one computer graphics input... -
Page 6: Your Vp-200Ak 1:2 Uxga / Audio Da

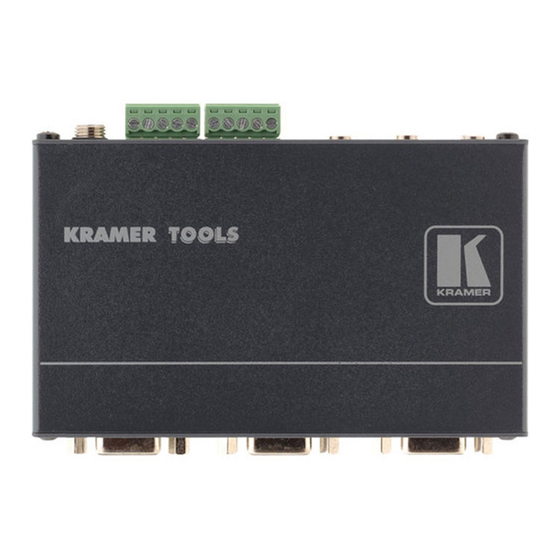

– Disconnect power and unplug unit from wall before installing or removing device or servicing unit. Your VP-200AK 1:2 UXGA / Audio DA Figure 1 and Table 1 define the VP-200AK: Figure 1: VP-200AK 1:2 UXGA / Audio DA 1 For example, part number 2535-052002... -
Page 7: Connecting The Vp-200Ak 1:2 Uxga / Audio Da
6. Connect the 5V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 2). 1 Switch OFF the power on each device before connecting it to your VP-200AK. After powering up your VP-200AK, switch on the power on each device... -
Page 8: Figure 2: Connecting The Vp-200Ak 1:2 Uxga / Audio Da
UXGA EQ. level. Figure 2: Connecting the VP-200AK 1:2 UXGA / Audio DA 1 Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Technical Specifications
Technical Specifications Technical Specifications The VP-200AK technical specifications are shown in Table 2: Table 2: Technical Specifications of the VP-200AK 1:2 UXGA / Audio DA 1 XGA on a 15-pin HD (F) connector INPUT: 1 unbalanced audio stereo on a 3.5mm mini jack audio connector... - Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
