Summary of Contents for Kramer VP-200N5
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VP-200N5 1:2 High Resolution UXGA DA... -
Page 2: Table Of Contents
Figure 1: VP-200N5 1:2 High Resolution UXGA DA Figure 2: Connecting the VP-200N5 1:2 High Resolution UXGA DA Tables Table 1: VP-200N5 1:2 High Resolution UXGA DA Features Table 2: Technical Specifications of the VP-200N5 1:2 High Resolution UXGA DA... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
This quick start chart summarizes the basic setup and operation steps. Overview The Kramer TOOLS VP-200N5 is a 1:2 distribution amplifier for UXGA resolution signals. It accepts one input, provides correct buffering and isolation, and then distributes the signal to two identical outputs on high-density 15-pin HD connectors. -
Page 5: Your Vp-200N5 1:2 High Resolution Uxga Da

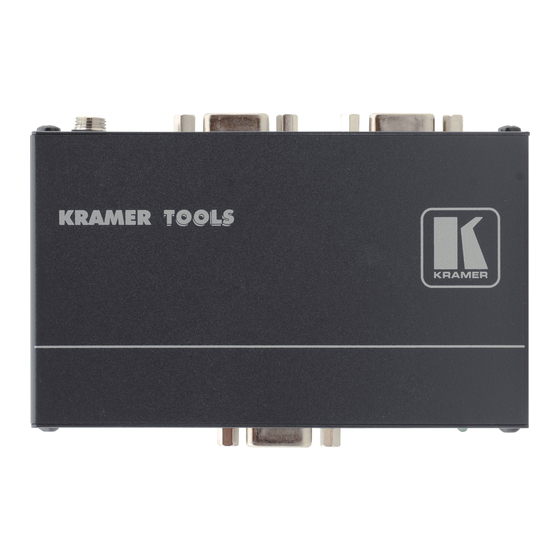

Your VP-200N5 1:2 High Resolution UXGA DA Figure 1 Table 1 define the VP-200N5: Figure 1: VP-200N5 1:2 High Resolution UXGA DA Table 1: VP-200N5 1:2 High Resolution UXGA DA Features Feature Function 5V DC +5V DC connector for powering the unit... -
Page 6: Connecting The Vp-200N5 1:2 High Resolution Uxga Da
1 You do not need to connect both outputs 2 Switch OFF the power on each device before connecting it to your VP-200N5. After connecting your VP-200N5, switch on its power and then switch on the power on each device... -
Page 7: Technical Specifications
Technical Specifications Technical Specifications Table 2 includes the technical specifications: Table 2: Technical Specifications of the VP-200N5 1:2 High Resolution UXGA DA 1 UXGA on a 15-pin HD connector INPUT: OUTPUTS: 2 UXGA on 15-pin HD connectors MAX. OUTPUT LEVEL: 1.8Vpp... - Page 8 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 9 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com , where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
