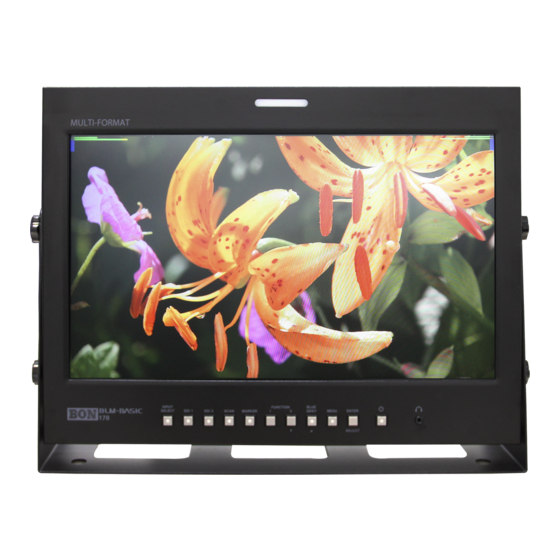

- Page 1 Operating Instructions Operating Instructions HD Broadcast Monitor HD Broadcast Monitor Multi Format Multi Format BON Series : BLM-084(8.4”) BLM-170(17”) (BASIC MODEL) BLM-190(19”) BLM-200(20”) BLM-240(24”) BLM-260(26”) BLM-320(32”) BLM-420(42”) BLM-470(47”) BLM-550(55”)
- Page 2 BLM- BASIC Series: • Input : SDI(2EA,BNC) • Resolution 1024 X 768 Analog(3EA,BNC), DVI-I(1) • Aspect ratio 4:3 • Output : SDI(1EA,BNC) • Contrast 400:1 Analog(3EA,BNC) • Viewing Angle : 170 ˚ • Power : 12V DC (11V-17V) BLM-084 • Rack Kit, V-Mount, Hood ( 8.4 Inch HD LCD Monitor ) •...
- Page 3 • Input : SDI(2EA,BNC) • Resolution 1366 X 768 Analog(3EA,BNC), DVI-I(1) • Aspect ratio 16:9 • Output : SDI(1EA,BNC) • Contrast 1000:1 BLM-320 Analog(3EA,BNC) • Viewing Angle : 178 ˚ ( 32 Inch HD LCD Monitor ) • Power: AC100-230V •...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read all of these instructions. 2. Save these instructions for later use. 3. All warnings on the product and in the operating instructions should be adhered to. 4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
- Page 5 17. Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d.
- Page 6 SAFETY PRECAUTIONS WARNING : CAUTION -TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS RISK OF ELECTRIC SHOCK EQUIPMENT TO RAIN OR MOISTURE. DO NOT OPEN -TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, KEEP THIS EQUIPMENT AWAY CAUTION: TO REDUCE THE ELECTRICK SHOCK.
- Page 7 Caution for AC Power Cord FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY. Appropriate AC Power Cord must be used in each local area. FOR CONTINENTAL EUROPE, ETC. FOR U.K. ONLY Not to be used in the U.K. If the plug supplied is not suitable for your socket outlet, it should be cut off and appropriate one fitted.
-
Page 8: Table Of Contents
Contents 1. Outline • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 9 2. Main Features • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 9 3. -
Page 9: Outline
High Speed Response / Fast Mode / Response Time of 8ms GTG EBU SMPTE-C and ITU-R BT.709 based Broadcasting Standard Color Auto Color Calibration Software with BLM Series Color Temperature - 3200’, 5400’, 6500’,9300’,User Waveform, Time Code Display, Under Scan/ Zero Scan / Over Scan / Zoom Pixel to Pixel Display (BLM-084/170/190 Models) PiP (Picture in Picture)-D Model &... -
Page 10: Controls And Functions (Blm-084,170~550)
3. Controls and Functions 3.1. Front Panel Front Panel (BLM-084) Front Panel (BLM-170, BLM-190, BLM-200, BLM-240, BLM-260) Front Panel (BLM-320, BLM-420, BLM-470, BLM-550) ① INPUT SELECT This is used to select Analog input and OSD menu is displayed for this. ②... - Page 11 ④ MARKER For Marker selecting button, ‘Marker’ is displayed on screen. In case input signals are DVI ,RGB, PC-RGB and YUV, Marker is not displayed. ⑤ FUNCTION 1(F1) Function buttons are selected from SYSTEM menu. They are operated by F1, F2 Buttons. ⑥...
-
Page 12: Rear Panel
3.2 Rear Panel Rear (BLM-084) Side (BLM-170) Real/Side (BLM-190~550) -- 12 --... - Page 13 BLM- Series ①② SDI 1 , SDI 2 Input Terminal (BNC) These function are for HD/SD-SDI input terminal and provide SMPTE standard and 16ch audio signal . ③ SDI SELECTOUT Terminal (BNC) Output terminal for the HD/SD-SDI signals. It do not output when the monitor is off. (Active Select Output) ④,⑤,⑥...
-
Page 14: Tally & Audio
3-3 Tally & Audio 1) Tally Tally Lamp Tally colors are 2 types. (Red, Green). It can be selected by external contact terminal. 2) Audio Input (BMA-20A) The function of Audio In/Out is option. ( Not for 8.4”) ① Analog Audio L/R Input Terminal (RCA Phone) The external audio signal is output through the speaker by Menu setting. -
Page 15: Function Buttons For Function 1 And Function 2
3-4 Function Buttons for FUNCTION 1 and FUNCTION 2 Used to select the functions to be assigned to individual buttons F1 to F2 (front-panel buttons) Functions Double function for FUNCTION 1 and FUNCTION 2 are prohibited. 1. H/V Delay (on,off) 2. -
Page 16: Input Select Menu
1) Audio Level Display Mode (BLM-084/170/190/240/260/320/420/470/550) Used Audio Level Display Mode from Audio Setup Menu as selecting On/Off. : Left (even channel), Right (odd channel) OFF : Make Off of Level Bar. Display Position : Possible to display at the top/bottom of the screen. 2) Waveform Monitor Display (BLM-084/170/190/240/260/320/420/470/550) Use on/off and position on the setting of the Waveform Display Menu. -
Page 17: Control And Use Of Osd Menu
6. Control and Use of OSD Menu Press “MENU” button for OSD Display . Press “ENTER” button after menu selection by using UP (▲) / DOWN (▼) button. Adjust status on the selected item with ENTER and UP (▲) / DOWN (▼) button. Move to previous menu by using MENU button and OSD screen is finished as pressing menu continuously. -
Page 18: Display
6-1-1. VIDEO (RGB,YPbPr) It is displayed as selecting RGB Color Adjust to User Adjust when PbPr,RGB and PC-RGB input mode. ▪ Red Gain : Control gain of Red input. ▪ Green Gain :Control gain of Green input. ▪ Blue Gain : Control gain of Blue input. ▪... -
Page 19: Color
6-2-1. DISPLAY (PC-RGB) This is displayed when PC-RGB signal is selected. ▪ PC SCAN : Set output status as Fill or Aspect mode. ▪ V. Position : Adjust position of screen in PC mode input. ▪ H. Position : Adjust horizontal position of screen. -
Page 20: Marker
6-4. MARKER ▪ Marker 16:9 Set the type of marker in case the aspect ratio setting is16:9. - Type of Marker : 4:3,15:9,14:9,13:9, 1.85:1,2.35:1, OFF ▪ Safety Area 16:9 Select the range of SAFETY AREA in 16 : 9 HD screen. - Safety Area : 95%,93%,90%, 88%,85% 80%, OFF ▪... -
Page 21: Gpi Control
6-6. GPI CONTROL ▪ GPI Control : Select external control terminal ON/OFF. It is not possible to control through Remote terminal from outside or external area when it is OFF. ▪ GPI Port 1,2,3,4,5,6,7 Select each terminal of external Remote Control Terminal (RJ-45). -
Page 22: How To Use Program Update Port
7. How to use Program Update Port Program Update Port (RJ-11) This is for upgrading firmware program, Color Temperature, Gamma and Color Measure. It also can be used for controlling multi monitor by using exclusive control program on your PC. Please consult with technician for update program or display adjustment. - Page 23 8-2. Remote Terminal Assignment Port Assignment Items Function Operating conditions VBS1 Input Switches the input VBS1 VBS2 Input Switches the input VBS2 VBS3 Input Switches the input VBS3 SDI1 Input Switches the input SDI-1 SDI2 Input Switches the input SDI-2 DVI Input Switches the input DVI PC-R/G/B Input...
-
Page 24: List Of Compatible Signal Formats
9. List of Compatible Signal formats 9-1. Video Signals Component Composite HD/SD- Input Signal Formats Video Y,Pb,Pr R,G,B (SOG) NTSC √ (525/59.94i) √ (625/50i) 720*480/59.94i √ √ √ (SD/NTSC) 720*480/59.94p,60p √ √ 720*576/50i √ √ √ (SD/PAL) 720*576/50p √ √ 1280*720/59.94p √... -
Page 25: Specifications
10. Specifications BLM-170 BLM-190 Function BLM-084 Input Channel 2EA, BNC 800mVp-p ± 10%, 75Ω Input Signal SDI-INPUT HD-SDI Signal Max, 1.485Gbps SD-SDI Signal Max, 270Mbps Output Channel 1EA, BNC, Selected Output (D series:2EA, BNC, Loop Out) SDI-OUTPUT 800mVp_p ± 10%, 75Ω Output Signal Input Channel DVI With Gender (DVI +Gender 15Pin) - Page 26 BLM-240 Function BLM-200 BLM-260 Input Channel 2EA, BNC 800mVp-p ± 10%, 75Ω Input Signal SDI-INPUT HD-SDI Signal Max, 1.485Gbps SD-SDI Signal Max, 270Mbps Output Channel 1EA, BNC, Selected Output (D series:2EA, BNC, Loop Out) SDI- OUTPUT 800mVp_p ± 10%, 75Ω Output Signal Input Channel DVI With Gender (DVI +Gender 15Pin)
- Page 27 BLM-420 Function BLM-320 BLM-470 Input Channel 2EA, BNC 800mVp-p ± 10%, 75Ω Input Signal SDI-INPUT HD-SDI Signal Max, 1.485Gbps SD-SDI Signal Max, 270Mbps Output Channel 1EA, BNC, Selected Output (D series:2EA, BNC, Loop Out) SDI- OUTPUT 800mVp_p ± 10%, 75Ω Output Signal Input Channel DVI With Gender (DVI +Gender 15Pin)
- Page 28 Function BLM-550 Input Channel 2EA, BNC 800mVp-p ± 10%, 75Ω Input Signal SDI-INPUT HD-SDI Signal Max, 1.485Gbps SD-SDI Signal Max, 270Mbps Output Channel 1EA, BNC, Selected Output (D series:2EA, BNC, Loop Out) SDI- OUTPUT 800mVp_p ± 10%, 75Ω Output Signal Input Channel DVI With Gender (DVI +Gender 15Pin) R, G, B : 0.7Vp-p, H/V Sync : 4V ±...
-
Page 29: Ir Remote Controller
11. IR Remote Controller • IR Remote Controller is for 32”,42, 47” and 55”. ▪ How to operate IR Remote Monitor operation 1) Make close Remote Controller to monitor ON/OFF. and press the related ID number. 2) As pressing ID SET button more than 2 seconds, ID=XX message will be displayed and then blinking. -
Page 30: Dimensions
12. DIMENSIONS Battery Pack VESA Mounting Hole V-Mount (75*75mm) Hole Size M4, Depth 10mm BLM-084 Dimensions (Unit: mm) VESA Mounting Hole Battery Pack (100*100/75*75mm) V-Mount Size M4, Depth 10mm Hole BLM-170 Dimensions (Unit: mm) VESA Mounting Hole (100*100/75*75mm) Size M4, Depth 10mm BLM-190 Dimensions (Unit: mm) -- 30 --... - Page 31 VESA Mounting Hole (100*100/75*75mm) Size M4, Depth 10mm BLM-200 Dimensions (Unit: mm) VESA Mounting Hole (100*100/75*75mm) Size M4, Depth 10mm BLM-240 Dimensions (Unit: mm) VESA Mounting Hole (100*100/75*75mm) Size M4, Depth 10mm BLM-260 Dimensions (Unit: mm) -- 31 --...
- Page 32 WALL Mounting Hole (300*270mm) Size M8, Depth 20mm BLM-320 Dimensions (Unit: mm) WALL Mounting Hole (600*400mm) Size M8, Depth 20mm BLM-420 Dimensions (Unit: mm) -- 32 --...
- Page 33 WALL Mounting Hole (600*400mm) Size M8, Depth 20mm BLM-470 Dimensions (Unit: mm) WALL Mounting Hole (600*400mm) Size M8, Depth 20mm BLM-550 Dimensions (Unit: mm) -- 33 --...
-
Page 34: Troubleshooting
13. Trouble Shooting Solutions to common problems related to the monitor are described here. If none of the solutions presented here solves the problem, unplug the monitor and consult an authorized dealer or service center. Symptom Probable cause and corrective action Page •...
Need help?
Do you have a question about the BLM Series and is the answer not in the manual?
Questions and answers
Hello, My monitor's SDI inputs no longer work. I tried several times but no image appears. Instead, I have a buzzing sound. I feel something might have burned inside but I can't be sure. My camera is sending out 1080p 25fps 50hz in SDI Would you know what the problem could be? Thank you
The issue with the bon BLM Series monitor's SDI inputs not working and producing a buzzing sound could be due to one or more of the following:
1. Incorrect Input Signal Format: The input signal format may not be compatible with the monitor. Check if the SDI signal matches one of the supported formats, such as NTSC (525/59.94i), PAL (625/50i), or HD-SDI (up to 1.485 Gbps).
2. Loose or Improper Cable Connection: The SDI signal cable may not be connected firmly. Ensure the cable is properly and securely connected to both the source and the monitor.
3. Signal Output Settings on Source Device: The connected component may not be set to output a compatible signal. Verify and adjust the output settings from the source device.
4. Hardware Malfunction or Interference: The buzzing sound may indicate electrical interference or a hardware issue with either the SDI input circuitry or the source device.
Check each of these areas systematically to identify and correct the issue.
