Baxton Studio BBT6376 Assembly Instructions

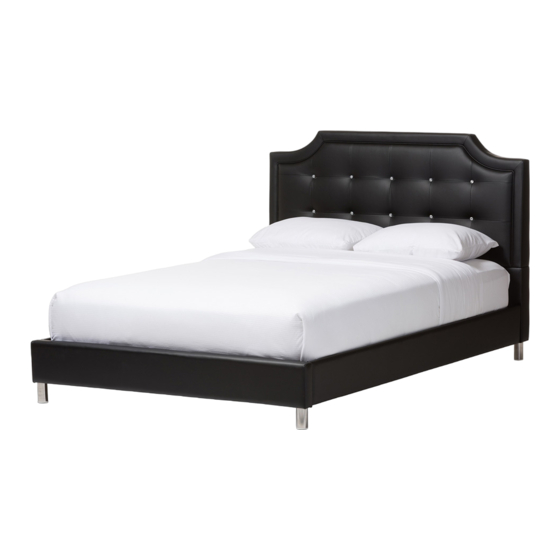

MODEL : BBT6376 QUEEN BED
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver (not provider).
STEP 1
A
STEP 3
D
E
A
ASSEMBLY INSTRUCTIONS
J
A
6
7
3
J
12
B
G
G
PART LIST
ITEM DESCRIPTION
A
HEADBOARD
B FOOTBOARD
C
SIDE RAIL
D CENTER RAIL
E
CENTER SUPPORT LEG
F BED SLAT
G
BED LEG
H CENTER SUPPORT
I
HEADBOARD SUPPORT RAIL
J HEADBOARD BOX (L/R)
K
HEADBOARD SUPPORT WOOD
STEP 2
A
I
STEP 4
A
C
1
12
HARDWARE LIST
ITEM DESCRIPTION
QTY
1
JCBB BOLT M8 x 30mm
1 PC
2 JCBC BOLT M6 x 40mm
1 PC
3 JCBB BOLT M8 x 80mm
2 PCS
4 M6 Flat Washer
1 PC
5 M6 Spring Washer
3 PCS
6
M8 Flat Washer
26 PCS
7 M8 Spring Washer
8
4 PCS WOOD SCREW M3.5 x 16mm
9 BED SLAT SIDE FITTER
2 PCS
10 BED SLAT CENTER FITTER
1 PC
M4 ALLEN KEY (BALL SHAPE)
11
2 PCS
12 M5 ALLEN KEY (BALL SHAPE)
2 PCS
13 WOOD SCREW M4 x 20mm
K
11
5
2
4
C
1 of 2
QTY
8 PCS
10 PCS
4 PCS
10 PCS
10 PCS
4 PCS
4 PCS
8 PCS
26 PCS
13 PCS
1 PC
1 PC
2 PCS
