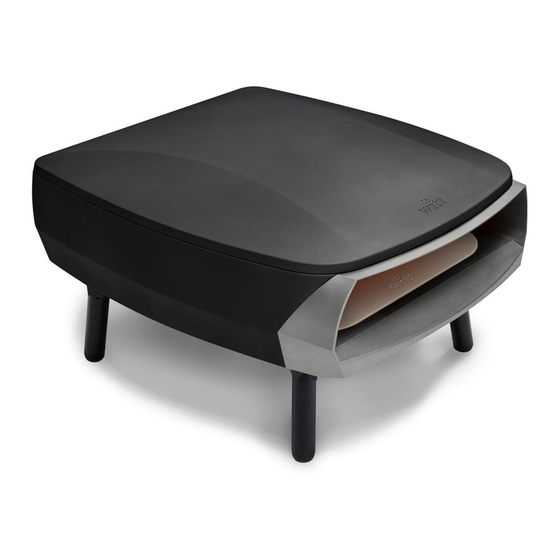

- Page 1 ETNA Rotante ETNA Fermo Instructions EN: 2-20.
-
Page 2: Table Of Contents
Assembly: Two burners with rotating pizza stone: ............12 USE OF THE PIZZA OVEN/IGNITION GUIDE ............... 15 ETNA FERMO - single burner: ..................15 ETNA ROTANTE - two burners: ..................15 CLEANING AND MAINTENANCE................... 16 TROUBLESHOOTING ....................17 SPECIFICATIONS ......................18... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS To reduce the risk of fire or other damage, read this safety guide carefully and in its entirety before using this appliance. • DO NOT USE THIS APPLIANCE BEFORE YOU READ THE INSTRUCTIONS FOR USE • DO NOT PLACE ITEMS ON OR AGAINST THIS APPLIANCE •... -
Page 4: Leak Test
• Never allow clothing or other flammable material to come into contact with or get too close to the burner or any hot surface until the appliance has cooled. The material can ignite and cause serious injury. • Certain synthetics are highly flammable and should not be worn when using the oven. -
Page 5: Gas Cylinder Connection
Gas cylinder connection: • The gas supply or hose must comply with applicable requirements and must be regularly examined and replaced as necessary. The hose must comply with the EN16436 standard. The regulator must comply with the EN16129 standard. DANGER: Do not use an adjustable pressure regulator (such as the type used for weed burners). -
Page 6: Batteries
Batteries: • Dispose of batteries responsibly and keep them out of the reach of children in case they swallow them. If a child swallows a battery, contact a doctor immediately! • Do not mix old batteries with new ones. This can cause batteries to overheat and leak. -
Page 7: Technical Information
TECHNICAL INFORMATION Please note: Injector size (nozzle marking) is stamped on the sides of the hexagon. (105 = Ø1.05mm injector) Model Recipient country Total Burners Injector/ Categories Gas types num- heat Size supply labelling BE, FR, IT, LU, IE, Butane at (28~30) GB, GR, PT, ES, 8.5kw 1.47... -
Page 8: Outdoor Installation Guide
OUTDOOR INSTALLATION GUIDE The pizza oven is intended exclusively for outdoor use and may only be used in a well-ventilated place, away from combustible materials. NEVER use the pizza oven indoors, in garages, porches, sheds or other enclosed areas. The pizza oven is not intended for use on boats, in motor homes or caravans and may not be placed near or below any surface which may burn or is heat sensitive. -
Page 9: Assembly: Single Burner
Assembly: Single burner 1. Unscrew the electronic ignition cover and insert an AA battery. Note the (+) and (-) markings in the battery compartment. Screw the cover back into place. Electronic ignition AA battery/DC1.5V x 1. - Page 10 2. Unfold the legs completely and then turn over the pizza oven (note that it weighs up to 25.1 kg). 3. Remove the packaging from the pizza stone and fit inside the oven. 4. Make sure the burner button is in the OFF position before connecting the gas hose. Button for the main burner...
- Page 11 5. Connect the gas hose to the pizza oven.
-
Page 12: Assembly: Two Burners With Rotating Pizza Stone
Assembly: Two burners with the rotating pizza stone 1. Unscrew the electronic ignition cover and insert an AA battery. Note the (+) and (-) markings in the battery compartment. Screw the cover back into place. Open the battery compartment. Insert four new AA batteries and place the batteries so that (+) and (-) are in the right direction in accordance with the indications. - Page 13 2. Unfold the legs completely and then turn over the pizza oven (note that it weighs up to 26.8 kg). 3. Remove the packaging from the pizza stone and fit to the turnable. Inspection hole for visual inspection of the booster burner flame.
- Page 14 4. Make sure the burner buttons are in the OFF position before connecting the gas hose. Button for But- Button for main burner ton for rotation of bottom burner the pizza stone 5. Connect the gas hose to the pizza oven.
-
Page 15: Use Of The Pizza Oven/Ignition Guide
OFF position and wait five minutes before trying again. ETNA ROTANTE - two burners To ignite the burner: depress and turn the on/off button slowly counter-clockwise until you hear a click and the burner ignites. This will take about 8-10 seconds, as the gas has to travel through the burner pipe to the oven. -
Page 16: Cleaning And Maintenance
Do not use scouring agents. Pizza Stone: • The pizza stone is intended exclusively for use in the Witt pizza oven, it is not intended for use over an open fire. • The pizza stone should only be cleaned with water. Soap will leave soap residue in the joints of the stone. -
Page 17: Troubleshooting
TROUBLESHOOTING The burner will not ignite: The gas valve is not on. Turn on the valve. The gas cylinder is empty. Replace the gas cylinder with a new one. The ignition button doesn’t work. Check the battery. There is no spark on ignition. Contact the service centre The flame of the burner is irregular: The flame burns inside the burner (whispering sound). -
Page 18: Specifications
SPECIFICATIONS Product Details Fermo Rotante Dimensions (mm) 750 x 650 x 440 750 x 650 x 440 Weight NW/GW 25.1 / 31.9 26.8 / 33.6 Adapter for the turnable/pizza 2.5 rpm stone Power supply only applicable to Rotante: Model Specifications Please note: Model: GA-0301000V Power supply connector type is... -
Page 19: Warranty And Service
This makes it easier for the service technician to find the correct spare parts. During the warranty period, your pizza oven will be repaired by the Witt Authorised Service Centre, provided your pizza oven is delivered to and collected from the service centre, see the terms and conditions below. - Page 20 (in restaurants, cafés, canteens, etc.) or intended to be hired out or otherwise used by multiple users in turn. There is no warranty offered for commercial purchases, as this product is only intended for regular household use. All requests for service: EMAIL: service@witt.dk See more at: www.witt.dk...
