- Page 1 Using Avaya Tracking Camera TC220 Issue 2 September 2022...
- Page 2 RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST the express behalf of Avaya. End User agrees to indemnify and hold YOU AND ANYONE ELSE USING OR SELLING THE SOFTWARE harmless Avaya, Avaya's agents, servants and employees against WITHOUT A LICENSE.
- Page 3 IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. written consent of Avaya can be a criminal, as well as a civil offense ADDITIONAL INFORMATION FOR H.264 (AVC) AND H.265 (HEVC) under the applicable law.
- Page 4 • 本製品は室内用に設計されています。 are not permitted to use such Marks without prior written consent • 本製品は金属または磁石がある所では性能が低下する恐れが from Avaya or such third party which may own the Mark. Nothing あります。 contained in this site, the Documentation, Hosted Service(s) and product(s) should be construed as granting, by implication, estoppel, •...
-
Page 5: Table Of Contents
...... 20 Configuring Avaya Tracking Camera TC220 as USB camera for computer .. 21 Connecting Avaya Tracking Camera TC220 as the main camera for Avaya XT Series .... 23 Resetting the default image using the Avaya Tracking Camera TC220 remote control .... 23... -
Page 6: Chapter 1: Introduction
Chapter 1: Introduction Purpose This document describes how to use the Avaya Tracking Camera TC220. This document is intended for people who want to learn how to use the Avaya Tracking Camera TC220. Change history Issue Date Summary of changes... -
Page 7: Chapter 2: Avaya Tracking Camera Tc220 Overview

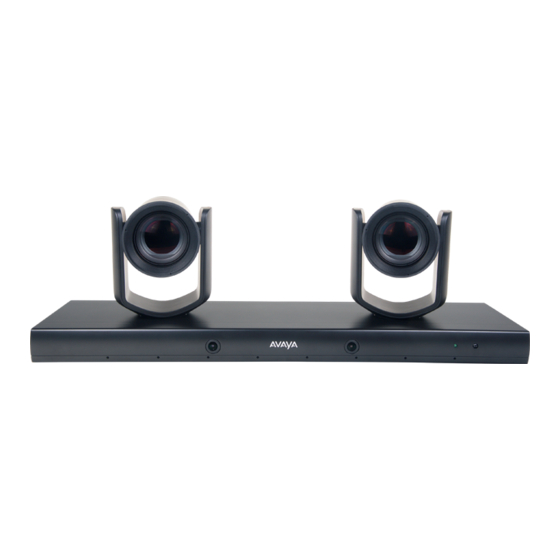

Overview Avaya Tracking Camera TC220 Overview Avaya Tracking Camera TC220 helps achieve an intelligent meeting experience and implements audio positioning and intelligent video analysis technologies. Avaya Tracking Camera TC220 can automatically switch between tracking view and full-view view to frame the speakers. It frees camera operation during a meeting and enables meeting attendees to focus more on the discussion. -
Page 8: Avaya Tracking Camera Tc220 Safety Warning
Safety warnings This topic describes the important safety instructions to be followed while installing Avaya Tracking Camera TC220. The following steps describe how to run the camera and respective accessories in total safety: • Read the manual carefully before installing the camera. Follow installation instructions indicated in this manual during installation. -
Page 9: Avaya Tracking Camera Tc220 Package Items
• HDMI cable • Wall Mount Power Adapter is optional and part of the Avaya XT Series optional cable kit. To complete the installation with XT, refer to Quick Setup Guide for Avaya IX Tracking camera TC220. Use part number 700512192 to order Power Supply. To complete the installation using the tracking camera as second video input, refer to Deployment Guide for Avaya XT Series. -
Page 10: Avaya Tracking Camera Tc220 Remote Control Unit
Avaya Tracking Camera TC220 supports a remote control unit. Important: If you connect the Avaya Tracking Camera TC220 as main camera to an Avaya XT Series, the Avaya Tracking Camera TC220 camera remote control unit does not control the Avaya XT Series. - Page 11 Preset Setting Press the number button to call the corresponding preset. Note: Connect a monitor TV to the Avaya Tracking Camera TC220 HDMI port to view the OSD camera GUI menu. September 2022 Using Avaya Tracking Camera TC220 Comments on this document? infodev@avaya.com...
-
Page 12: Avaya Tracking Camera Tc220 Front And Rear View
Avaya Tracking Camera TC220 Overview Avaya Tracking Camera TC220 front and rear view Front view Rear view September 2022 Using Avaya Tracking Camera TC220 Comments on this document? infodev@avaya.com... -
Page 13: Connecting Ref Cable For Avaya Tracking Camera Tc220
Connecting Ref cable for Avaya Tracking Camera TC220 Key number Key name Tracking Camera 1 (Default Address 1) Tracking Camera 2 (Default Address 2) IR Indicator Power Indicator Full View Camera 1 Full View Camera 2 DIP Switch Ethernet Ref Audio... -
Page 14: Avaya Tracking Camera Tc220 Installation Types
1. Connect one side of the cable to the back of the camera on connector named Ref.Audio. 2. Connect the other side on the back of the codec in the green audio output. Avaya Tracking Camera TC220 installation types Installation Types Note: •... - Page 15 Avaya Tracking Camera TC220 installation types • Take effective measures to avoid camera from dropping. • Do not grab the camera head while holding or transporting it. • Do not rotate the camera head with hand. It may cause the camera to malfunction.
-
Page 16: Dip Switch Settings For Avaya Tracking Camera Tc220
DIP Switch Settings for Avaya Tracking Camera TC220 DIP Switch Settings The camera is provided by default supporting VISCA control. If a different and fixed resolution/ frame rate is required, refer to the following table. -
Page 17: Chapter 3: Configuring Avaya Tracking Camera Tc220
Avaya CU360 or connect the Avaya CU360 to the network through Wi-Fi. • Connect the power supply plug to the DC IN 12V port of the Avaya Tracking Camera TC220 and turn on the Avaya CU360 endpoint. - Page 18 The default PIN for Advanced settings on the endpoint is 1234. If your administrator configures a PIN to access the advanced settings on the endpoint, Avaya CU360 prompts you to enter the PIN. After you enter the PIN, Avaya CU360 displays the Advanced window.
-
Page 19: Configuring Avaya Tracking Camera Tc220 As Usb Camera For Avaya Cu360
• Connect one end of the HDMI cable to the Avaya Tracking Camera TC220 HDMI port and the other end to the Avaya AV Grabber HDMI port. • Connect one end of the USB cable to the Avaya AV Grabber USB port and the other end to the Avaya CU360 USB port. -
Page 20: Configuring Avaya Tracking Camera Tc220 As Usb Camera For Computer
About this task Avaya AV Grabber is an optional cable kit for Avaya Tracking Camera TC220. The order part number is 700513898. Using Avaya AV Grabber, you can connect a computer to Avaya Tracking Camera TC220 with a cable and use the computer to share content in meetings. -
Page 21: Connecting Avaya Tracking Camera Tc220 As The Main Camera For Avaya Xt Series
1. Connect one end of the HDMI cable to the Avaya Tracking Camera TC220 HDMI port and the other end to the Avaya AV Grabber HDMI port. 2. Connect one end of the USB cable to the Avaya AV Grabber USB port and the other end to the computer USB port. - Page 22 DC12 V Connector HDMI OUT Connector Procedure 1. Connect the Visca and Power cable at the rear of the Avaya Tracking Camera TC220 as follows: • The 8-pin connector to the Camera RS-232 socket. • The power connector to the DC IN 12 V socket.
-
Page 23: Resetting The Default Image Using The Avaya Tracking Camera Tc220 Remote Control
• To ensure that the camera driver mode is set to Automatic, click Configure > Advanced > I/O connections > Cameras > General. • To ensure that the XT Series TC220 Camera driver is selected in the menu, click Configure > Advanced > I/O connections > Cameras > HD1. - Page 24 ............... Avaya Tracking camera for USB camera ..... TC220 using remote control ......... Avaya Tracking camera TC220 ......19, Avaya Tracking Camera TC220 ........Avaya Tracking Camera TC220 for IP camera .....17 IP camera ..............IP camera for CU360 ............17 safety warning laptop for USB camera ..........
