User Guide

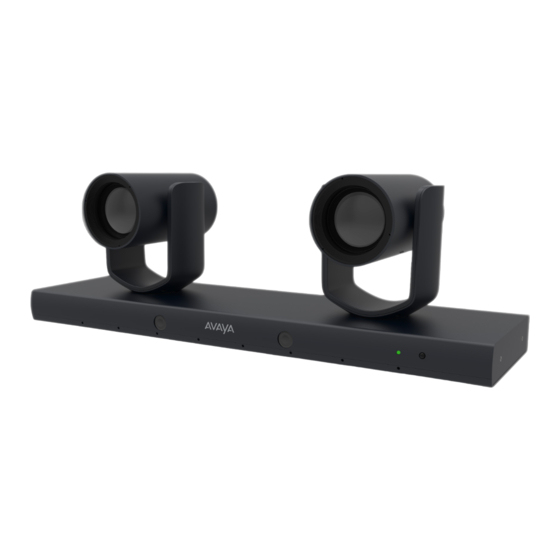

Avaya IX Tracking Camera TC220
SAFETY NOTES
-IMPORTANT
© 2019 Avaya Inc. All Rights Reserved.
The following important notes must be followed
carefully to run the camera and respective
accessories in total safety.
•
Before installing the camera, please read this manual carefully.
Please follow installation instructions indicated in this manual during
installation. Please keep this manual for future use.
•
The installation should be performed by qualified service personnel or
system installers in accordance with all local rules.
•
Before powering on the camera, please check the power voltage
carefully. Make sure that you are using the correct power source.
•
Please put the power cable, video cable and control cable in safe
place.
•
Do not operate the camera beyond the specified temperature and
humidity. Working temperature range of the camera is between 0�C
and +40�C. The ambient humidity range is less than 90﹪.
•
During transporting, avoid violent shake or force to the camera.
•
To prevent electric shock, do not remove screws or housing of the
camera. There are no self-serviceable parts inside. Refer to qualified
service personnel for servicing.
•
Video cable and RS232 cable should be kept far away from other
cables. Shielded and independent wiring is necessary for video and
control cables.
avaya.com
1
Advertisement
Related Manuals for Avaya IX Tracking Camera TC220
Summary of Contents for Avaya IX Tracking Camera TC220
-
Page 1: User Guide
There are no self-serviceable parts inside. Refer to qualified service personnel for servicing. • Video cable and RS232 cable should be kept far away from other cables. Shielded and independent wiring is necessary for video and control cables. © 2019 Avaya Inc. All Rights Reserved. - Page 2 2. To prevent infringement of the rights of others, please confirm that it is installed and used within the scope permitted by local law! Avaya IX Tracking Camera TC220 helps to achieve FEATURES intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies.
-
Page 3: Application Scenarios
Application Scenarios Warnings For a right installation it is important that the camera is set up at the height in a range between 1.4 - 1.8 m as displayed in the following picture © 2019 Avaya Inc. All Rights Reserved. -
Page 4: Front View
Full View Camera 1 Full View Camera 2 Rear view 10 11 12 13 14 DIP Switch Ethernet USB (Reserved) 10. HDMI OUT HD-SDI OUT 12. RS-232 13. Power(DC12V) 14. On/Off 15. Safety Lock Hole © 2019 Avaya Inc. All Rights Reserved. -
Page 5: Package Content
Wall Mount place is strong and safe enough to hold Power Adapter is optional and part of the "Avaya XT optional cable kit". the camera and relative parts, it is suggested To complete the installation with XT please use as reference the Quick that the installed place Setup Guide for Avaya IX Tracking camera TC220. -
Page 6: Wall Mount Installation
VISCA command. © 2019 Avaya Inc. All Rights Reserved. Avaya and the Avaya logo are trademarks of Avaya Inc. and are registered in the United States and other countries. All other trademarks identified by ®, TM, or SM are registered marks, trademarks, and service marks, respectively, of Avaya Inc.
