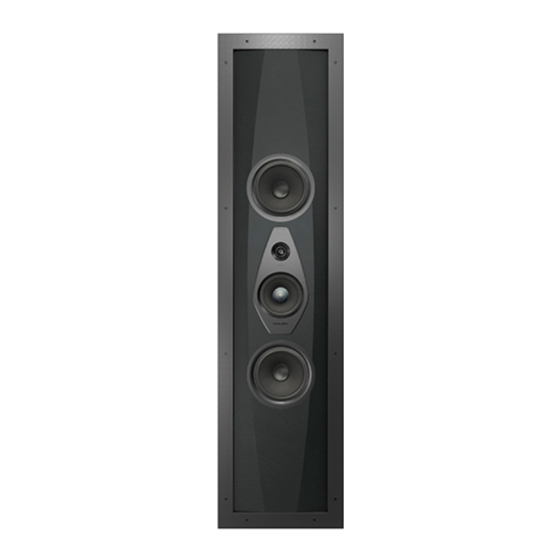

A R E N A
CUSTOM INSTALLATION SPEAKERS
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARENA and is the answer not in the manual?

Questions and answers

Related Manuals for Sonus Faber ARENA

Summary of Contents for Sonus Faber ARENA

  • Page 1 A R E N A CUSTOM INSTALLATION SPEAKERS OWNER’S MANUAL...
  • Page 2 The loudspeakers are designed and manufactured according to the highest quality standards. Should however a fault or a malfunction occur, all Sonus faber products are covered by a standard warranty that covers material, technical and manufacturing defects and/or inconsistencies for two (2) years from the date of purchase by the original owner.
  • Page 3 The product warranty will be void under the following conditions: • Protective cover • If the product has been disassembled or modified by persons other than a Sonus faber • Accessories box: fabric grids, screws, screw covers. authorized service center;...
  • Page 4 3.3.2 - CONNECT THE AUDIO CABLES TO THE SPEAKER 3.3 - ASSEMBLY 3.3.1 - MARK THE AREA TO BE CUT ON THE WALL USING THE TEMPLATE SUPPLIED Previously, make sure that the cutting area is between the two uprights! For correct operation of the fixing system, maintain a distance of at least 4 cm between Pay attention to the polarities of the terminals during connection.
  • Page 5 3.3.3 - INSERT THE FRAME IN THE DRILLED HOLE 3.3.5 - SCREW THE FRAME Tighten the locking screws fully home without force, to prevent damage to the locking system! 3.3.4 - PUSH THE METALLIC FINS INTO CONTACT WITH THE INTERNAL WALL 3.3.6 - INSERT THE LOUDSPEAKER IN THE FRAME Remove the rubber bands...
  • Page 6 3.3.7 - SCREW THE LOUDSPEAKER TO THE FRAME 3.4.3 - UNSCREW THE FRAME AND ALIGN THE METAL FINS CLOSE WITH THE SCREW COVERS REMOVE THE FRAME FROM THE WALL 3.4 - REMOVE THE LOUDSPEAKER 3.4.1 - UNSCREW THE LOUDSPEAKER FROM THE FRAME Perform the operation with the appliances off! 3.4.2 - DISCONNECT THE AUDIO CABLES FROM THE LOUDSPEAKER 4.
  • Page 7 5. TECHNICAL SPECIFICATIONS ARENA 30 ARENA 20 ARENA S15 Array Balanced Speaker type 4 way 3,5 way Sub-Woofer Low frequency transducer 2 x 8 in 2 x 8 in 2 x 8 in Mid/High frequency 2 x 6,25 in - 38 mm Dome...
