Alula RE606M Quick Start Manual

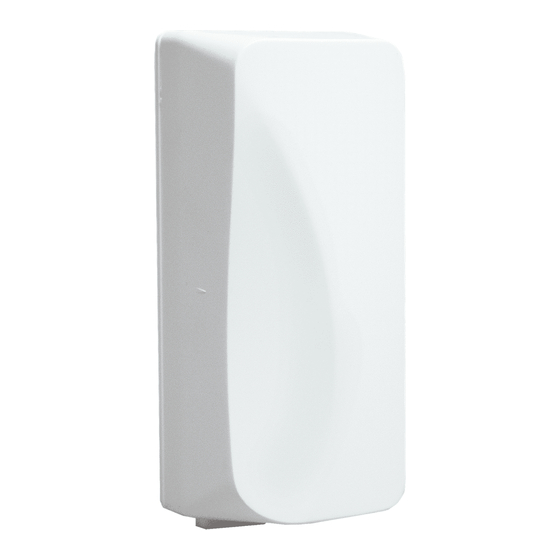

RE606M Tilt Sensor
transmitter typically used to sense the tilt of overhead
garage doors and windows. It will alarm when the
sensor is tilted more than 45 degrees.

Features

• New, high accuracy MEMS sensor
• Industry-leading wireless range and battery life
• Secure encrypted wireless transmissions

Enroll

by placing the panel into wireless enrollment
mode and then sending an enrollment signal
from the sensor. Alternatively, the sensor can
be enrolled by scanning its bar code using
the Connect+ Installer App or by entering its
8-character serial number in the AlulaConnect™
portal.
Sending an Enrollment Signal
• Remove the battery tab or trip the tamper

Install

by mounting the sensor to the inside of
a door or window using the mounting screw
locations. For garage door installations, the
sensor should be mounted to the top panel of the
overhead door. This ensures that the
sensor closes only when the door
is fully closed, and is best for RF
range.

Tilt Detection

sensor exceeds a 45 degree angle.
If the sensor rotates further than
135 degrees, it is likely to remain
in a non-alarm state. For best
results, the sensor should rotate
within 90 degrees to ensure an
alarm state occurs.
Use the panel installation guide to verify proper system setup.
is a full-featured security
occurs when the
RE606M Tilt Sensor
Connect+
™
Encrypted
Mounting
Screw
Holes
Cover-Securing
I
Screw Hole
