Alula RE607 Quick Start Manual

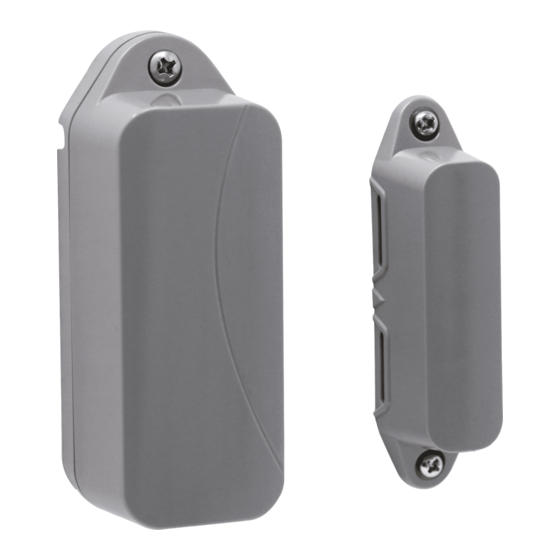

RE607 Outdoor Door/Window Sensor
security transmitter with industry-leading wireless range
and battery life. It is designed to sense the opening and
closing of gates, sheds, and other outdoor open/close
applications. An alarm signal will be transmitted when the
magnet is pulled away from the sensor, or when an external
contact is opened.

Features

• Industry-leading wireless range and battery life
• Wide magnetic gap distance
• Two built-in external contact zones
• Secure encrypted wireless transmissions
• IP67 waterproof enclosure rating
• 5-year warranty

Enroll

by placing the panel into wireless enrollment mode
and transmitting an enrollment signal from the sensor.
Alternatively, the sensor can be enrolled by scanning its
bar code using the Connect+ Installer App or by entering
its 8-character serial number on the interactive service
provider's web portal. External contacts can be added on
the interactive service provider's web portal.

Options for sending an Enrollment Signal

• Remove the battery tab, OR
• Remove the cover to trip tamper

Install

by first attaching the mounting plate and magnet to
a door, window, or fence using screws (provided) or cable
ties (not provided).

Mounting Tips

• Face of mounting plate marked "Flat Mount" is to be
mounted against flat surfaces (e.g. square wood post).
• Face of mounting plate marked "Pole Mount" is to be
mounted against round surfaces (e.g. fence post).
Make sure to align the alignment marks on the sensor and
magnet when mounting. Finish by latching the sensor to
the mounting plate and tightening the cover-securing screw
to secure the sensor in place.
Use the panel installation guide to verify proper system setup.
RE607 Outdoor Door/Window Sensor
Connect+ Encrypted
™
is a full-featured
Mounting Screw Holes
Magnet
Alignment Marks
Cover-Securing Screw Hole
