Alula RE618 Quick Start Manual

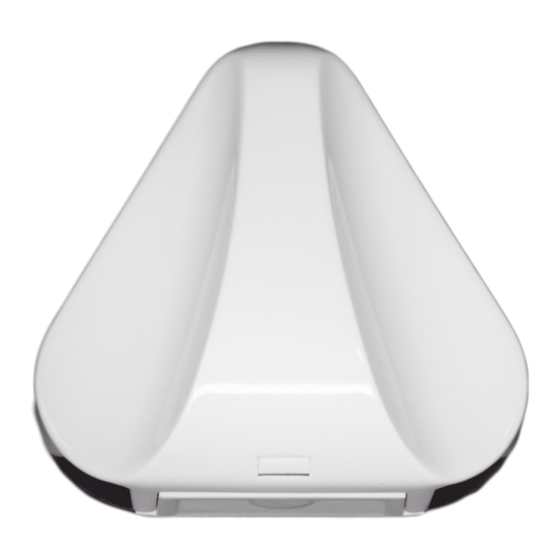

RE618 Flood & Temp Sensor
sensor that detects flood conditions and reports extreme
temperatures. It also reports air temperature allowing custom
high and low temperature trip points to be set in the panel.

Features

• Titanium probes for unmatched corrosion immunity
• IP67 rated waterproof enclosure
• GORE vent to prevent seal failure
®
• 5-year warranty

Enroll

by placing the panel into wireless enrollment mode
and then sending an enrollment signal from the sensor.
Alternatively, the sensor can be enrolled by scanning its bar
code using the Connect+ Installer App or by entering its
8-character serial number on the interactive service provider's
web portal. NOTE, freeze and heat inputs must be enabled
as additional zones using the installer app or the interactive
service provider's web portal.

Options for Sending an Enrollment Signal

• Remove the battery tabs, OR
• Remove the wall clip from sensor body

Install

by placing the sensor in the location requiring flood or
temperature detection. If desired, the wall clip can be used to
secure the sensor to a wall or baseboard.

Optional Screw Mounting

• Remove the wall clip from the sensor body.
• Secure the clip to a wall, baseboard or cupboard
using a #6 screw.
• Slide the sensor body down onto the wall clip
until it snaps into place.

Detects

water pooled under the sensor and reports extreme
temperature conditions. High and low temperature trip points
are set in the panel.

Default Temperature Trip Points

• Heat alarms when over 100°F (38°C)
• Heat restores when under 97°F (36°C)
• Freeze alarms when under 45°F (7°C)
• Freeze restores when over 48°F (9°C)

To replace the batteries,

the front slot and twist. Slide both old batteries out and the
new batteries in. To reinstall the cover, align the rear latches
and roll the cover forward until it snaps into place.
Use the panel installation guide to verify proper system setup.
RE618 Flood & Temp Sensor
Connect+
is an integrated environmental
insert a flat blade screwdriver into
Encrypted
™
Mounting Screw Hole
Front slot
I
Wall Clip
