Alula RE106M Manual

Resolution Compatibles

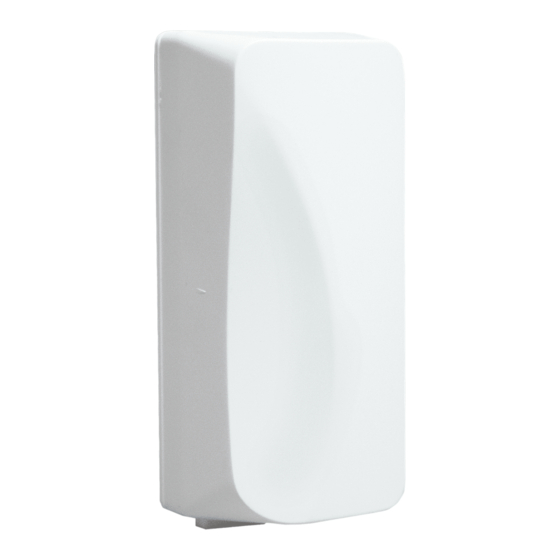

Tilt Sensor
is a full-featured security transmitter typically
used to sense the tilt of overhead garage doors and
windows. It will alarm when the sensor is tilted more
than 45 degrees.

Features

• Industry-leading wireless range and battery life

Enroll

by placing the panel into wireless enrollment
mode and then sending an enrollment signal from the
sensor.

Sending an Enrollment Signal

With the battery tab removed, open
the cover to trip tamper.

Install

by mounting the sensor to the inside of
a door or window using the mounting screw
locations. For garage door installations, the
sensor should be mounted to the top panel of
the overhead door. This ensures that the sensor
closes only when the door is fully closed, and is
best for RF range.

Tilt Detection

exceeds a 45 degree angle. If the
sensor rotates further than 135
degrees, it is likely to remain in a
non-alarm state. For best results,
the sensor should rotate within 90
degrees to ensure an alarm state
occurs.
Use the panel installation guide to verify proper system setup.
RE106M Tilt Sensor
Interlogix
occurs when the sensor
& Qolsys
™ ™
Mounting
Screw
Holes
Compatible
Cover-Securing
Screw Hole
I
