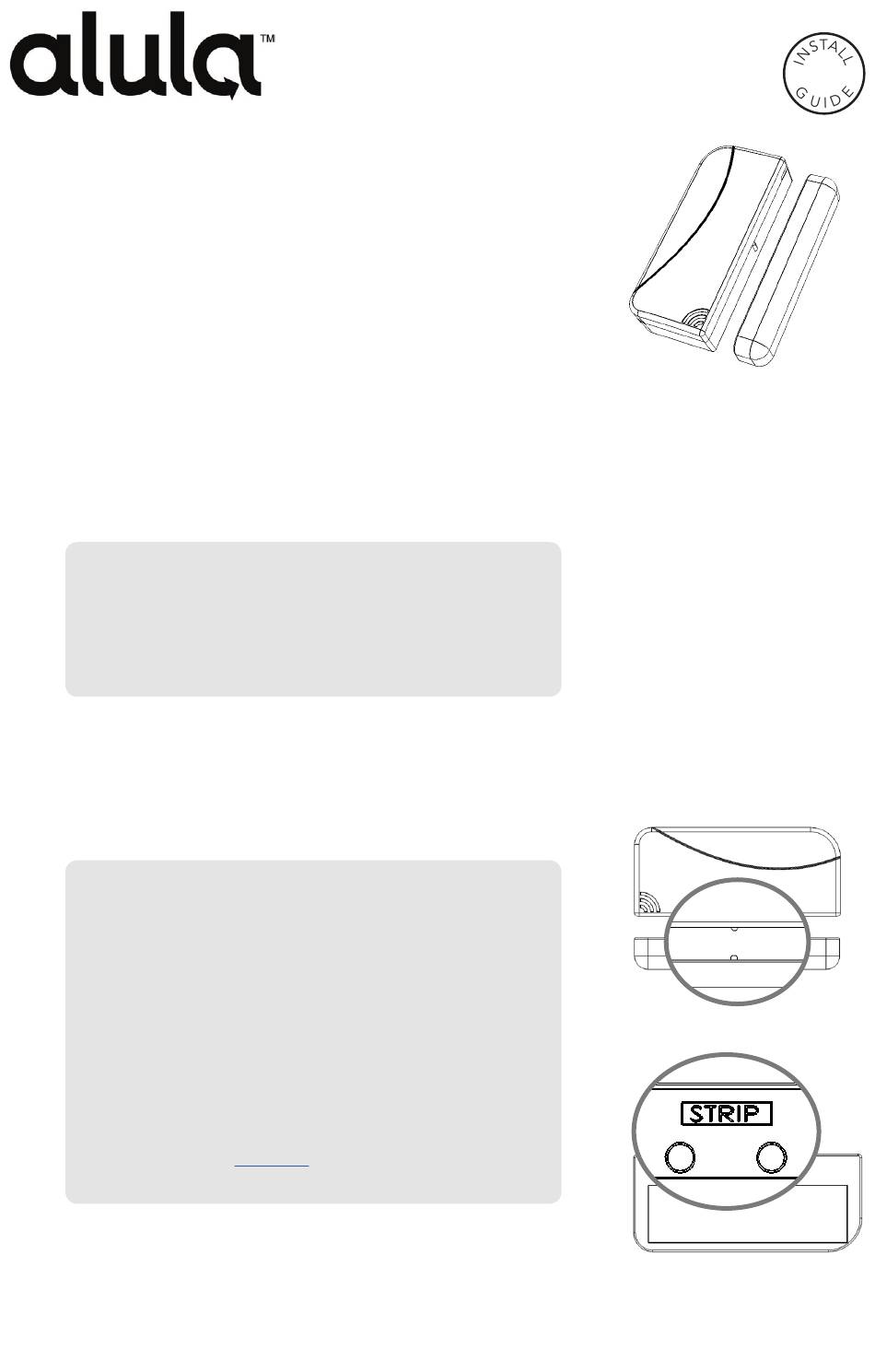

Alula NanoMax RE122 Install Manual

Resolution Compatibles
NanoMax

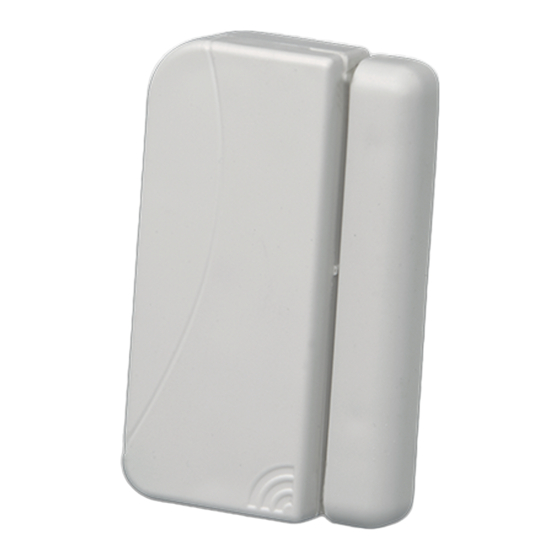

is the smallest full-featured security transmitter
in the industry. It is typically used to sense opening and
closings of doors and windows, but can secure just about
anything using its Strip & Stick external contact holes. It will
alarm when the magnet is pulled away from the NanoMax or
when the external contact is opened.
Features
• Quick peel and press mounting
• Small profile for a near invisible look
• Most flexible magnet positioning in the industry
• Strip & Stick external contact holes
• 5 year warranty
Enroll
by placing the panel into wireless enrollment mode and
then sending an enrollment signal from NanoMax.
Options for sending an Enrollment Signal
• Remove the battery tab, which can be done
without removing the cover, OR
• Touch the magnet to the sensor 5 times within
5 seconds, OR
• Remove the cover to trip tamper
Install
by removing the adhesive paper and adhering the
NanoMax and magnet on a door or window. Make sure to
align the alignment marks on the NanoMax and magnet
when mounting. Alternatively, NanoMax can be used with an
external contact instead of the reed switch.
External Contact
• If you are using the external contact then you
cannot use the reed switch.
• Use a normally-closed contact because
NanoMax will transmit an alarm when it sees
the external contact open.
• Do not use end-of-line resistors.
• Connect the contact to NanoMax by inserting
the contact's wires into the two Strip & Stick
holes on the back of NanoMax.
• Additional wiring information can be found
by searching
wiring".
Use the panel installation guide to verify proper system setup.
