Phantom Patient for
VMAT-IMRT Verification
SHANE 13650001
SCAN
PLAN
LOCALIZE
TREAT
SHANE
SHOULDERS, HEAD AND NECK, END-TO-END
900 Asbury Ave • Norfolk, Virginia 23513 • USA • Tel: 757-855-2765 • WWW.CIRSINC.COM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHANE 13650001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cirs SHANE 13650001

  • Page 1 Phantom Patient for VMAT-IMRT Verification SHANE 13650001 SCAN PLAN LOCALIZE TREAT SHANE SHOULDERS, HEAD AND NECK, END-TO-END 900 Asbury Ave • Norfolk, Virginia 23513 • USA • Tel: 757-855-2765 • WWW.CIRSINC.COM...
  • Page 2: Table Of Contents

    CONTENTS Overview ................... 3 Description of the Phantom ............... 4 Specifications .................. 10 Use of the Phantom ................. 11 Care & Handling ................14 Appendix ..................14 Notes .................... 18 Warranty ..................11...
  • Page 3: Overview

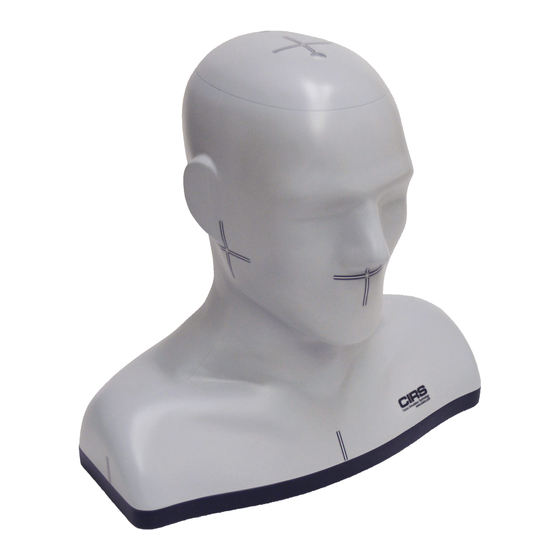

    OVERVIEW The CIRS Dose Verification Head and Shoulder Phantom is designed for end- to-end testing of treatment planning systems from imaging acquisition through dosimetry verification. The high fidelity anthropomorphic design contains complex internal anatomy that provides a realistic clinical simulation to evaluate the chal- lenging effects of intra- and extra-cranial anatomies.
  • Page 4: Description Of The Phantom

    DESCRIPTION OF THE PHANTOM The phantom is based on the standard CIRS Model 038 Stereotactic End-to-End Verification phantom (STEEV) and consists of two major components: head and shoulders that are permanently attached. Head is cut axially at the vertex parallel to the Frankfort horizontal plane.
  • Page 5 POSITIONING AND FILM REGISTRATION The phantom contains unique features for proper and repeatable orientation, posi- tioning and film-to-treatment plan registration. Laser alignment marks (crosshairs) are aligned with an anterior hole and positioned on the vertex, front and sides of the head and shoulders.
  • Page 6 The posterior portion of the phantom contains five (5) CT fiducial pins for film-to- treatment plan registration. Four fiducials are located in an orthogonal configuration and a fifth fiducial is 10 mm offset to avoid mistakes in film registration. They are made of stainless steel and measure Ø...
  • Page 7 ION CHAMBER DOSIMETRY The phantom is configured for use with PTW 31010 Semiflex 0.125 cc ion chamber (CIRS cavity code CV511C), but can accommodate different ion chambers, diodes or other detectors upon request. To use an ion chamber through the IS holes in variable positions each...
  • Page 8 PATIENT POSITIONING MASKS. CIRS has successfully tested thermoplastic masks from the following Manufac- turers. • Bionix, • Klarity, • Civco, • Orfit • Macromedics DSPS (depicted)
  • Page 9 Electron Density To perform the electron density calibration the shoulders accommodate five (5) permanent locations for electron density plugs: cortical bone, trabecular bone, lung inhale, lung exhale and water. Plugs measure Ø 2.5 cm x 3 cm long. Bone plugs are positioned at the approximately humerus locations.
  • Page 10: Specifications

    SPECIFICATIONS Dimensions: 36 cm (W) x 36 cm (L) x 22cm (H) Weight: 10.2 kg without rods Materials: CIRS proprietary epoxy resins. See Appendix The phantom includes: Qty: Part No. (if app) Head Vertex Head & Shoulders Anterior part Head & Shoulders Posterior part...
  • Page 11: Use Of The Phantom

    USE OF THE PHANTOM GENERAL INSTRUCTIONS 1. Carefully remove phantom from carry case. 2. Position the phantom face up on a clean, flat surface. 3. Unbuckle the nylon strap. Using the screw driver provided, un- screw the two nylon screws from the vertex, starting with the lower screw.
  • Page 12 Screw the temporary black nylon thumbscrews to the anterior portion of the phantom. Lift anterior portion of the phantom from the posterior end using black thumbscrews. Carefully place on a clean, flat surface.
  • Page 13 Position film of the desired size on the flat surface of the posterior portion making sure it covers CT fiducials. CT fiducials are sharp so they can secure the film. Use care during assembly, disassembly and film placement to ensure you do not scratch yourself or the film, or bend the fiducials.
  • Page 14: Care & Handling

    Epoxy is quite durable, but can still be damaged if it is dropped on a hard surface; so handle with care! Most phantoms can be easily repaired. If damaged, contact CIRS. It is recommend- ed that the phantom only be cleaned with mild detergent and water. Avoid solvent based or abrasive cleaning agents.
  • Page 15 APPENDIX (CONT.) ENERGY- MEV AVERAGE SOFT TISSUE REFERENCE *2 AVERAGE SOFT TISSUE, CIRS RATIO, % 0.04 0.2679 0.2678 99.96 0.06 0.2087 0.2091 100.19 0.08 0.1871 0.1876 100.27 0.10 0.1742 0.1748 100.34 0.20 0.1401 0.1406 100.36 0.40 0.1086 0.1090 100.37 0.60 0.0917...
  • Page 16 30.0 0.0394 0.0387 98.2 El. Density, x10 , cm 5.952 5.956 100.1 Density, gcm 1.92 1.93 ENERGY- MEV AVERAGE BRAIN REFERENCE *1 AVERAGE BRAIN BRDT, CIRS RATIO, % 0.04 0.2791 0.2791 100.00 0.06 0.2135 0.2138 100.14 0.08 0.1902 0.1907 100.26 0.10...
  • Page 17 30.0 0.0034 0.0032 94.1 El. Density, x10 , cm 0.663 0.668 100.8 Density, gcm 0.205 ENERGY- MEV AVERAGE LUNG EXHALE REFERENCE *1 AVERAGE LUNG EXHALE, CIRS LH RATIO, % 0.04 0.1342 0.1313 97.8 0.06 0.1025 0.1012 98.7 0.08 0.0912 0.0904 99.1...
  • Page 18: Notes

    NOTES:...
  • Page 19: Warranty

    CIRS not to comply with documented order specifications. You must return the product to CIRS within 30 calendar days of the issuance of the RMA. All returns should be packed in the original cases and or packaging and must include any accessories, manuals and documentation that shipped with the product.
  • Page 20 COMPUTERIZED IMAGING REFERENCE SYSTEMS, INC. 900 Asbury Ave Norfolk, Virginia 23513 USA Toll Free: 800.617.1177 Tel: 757.855.2765 Fax: 757.857.0523 Email admin@cirsinc.com www.cirsinc.com Technical Assistance 1.800.617.1177 © 2015 Computerized Imaging Reference Systems Inc. All rights reserved. Computerized Imaging Reference Systems, Inc. has Specifications subject to change without notice.
